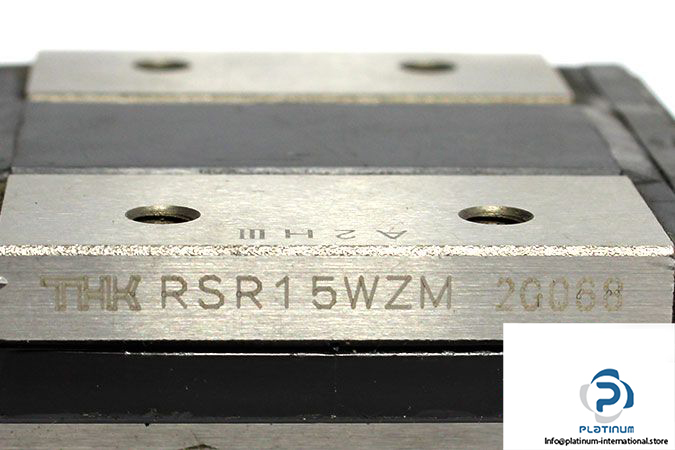

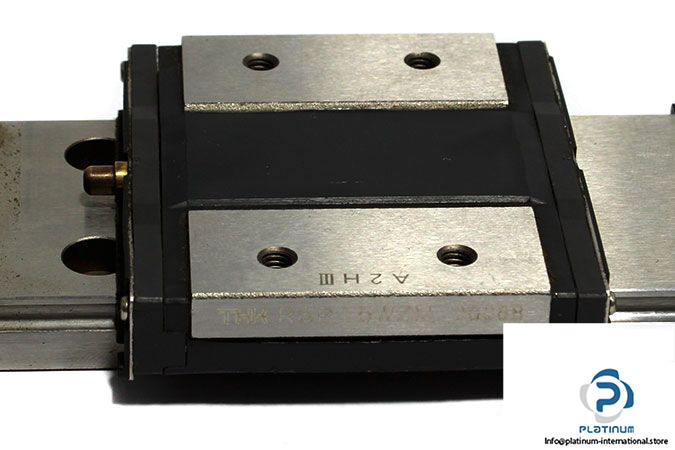

THK RSR15WZM Linear Guideway Block

Manufacturer: THK

Type: Linear Guideway Block RSR

Model: RSR 15WZM

Size: 15

Block Type: Square Type

Basic Load Ratings:

Dynamic C: 6.66 kN

Static C₀: 9.8 kN

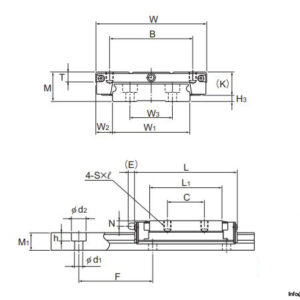

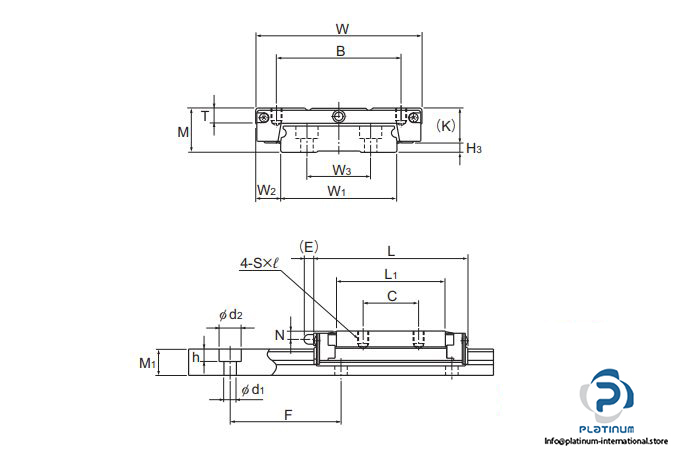

Dimensions

Total Height M: 16 mm

Block Width W: 60 mm

Block Length L: 55.5 mm

B: 45 mm

C: 20 mm

Block Weight: 0.14 kg

Track Rail Weight: 3 kg/m
