TR Electronic CE100M 100-00894 Absolute Encoder
TR ELECTRONIC CE100M 절대 인코더, 4,096 PPR, 4,096 회전, 12mm 샤프트, Interbus-S RS422 출력, 11–27 V DC, IP54 등급.

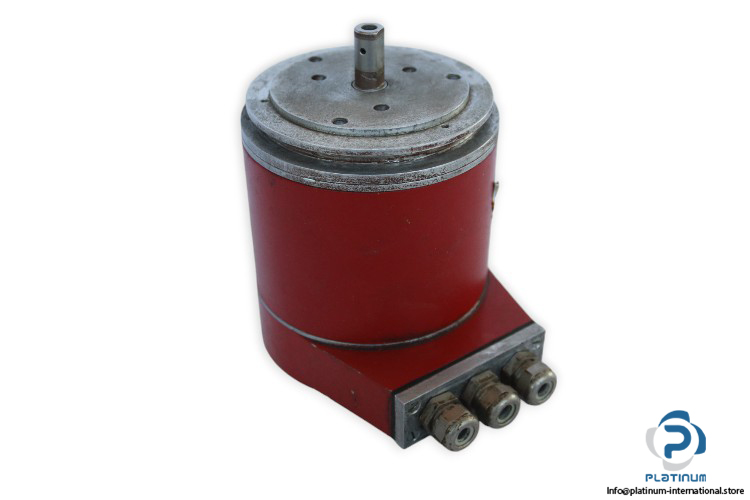

TR ELECTRONIC CE100M Absolute Encoder
The TR ELECTRONIC CE100M Absolute Encoder is a high-precision solution for position sensing and motion control applications. Designed with advanced **binary absolute value coding**, it ensures accurate measurements with **4,096 PPR (steps per revolution)** and a **multi-turn resolution of 4,096 revolutions**. Featuring an **Interbus-S RS422 output interface** and compatibility with a **voltage supply of 11 to 27 V DC**, this encoder is ideal for industrial automation systems.

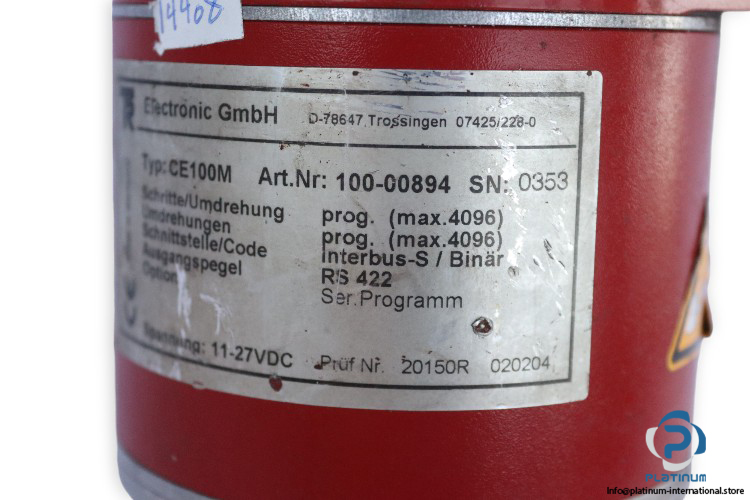

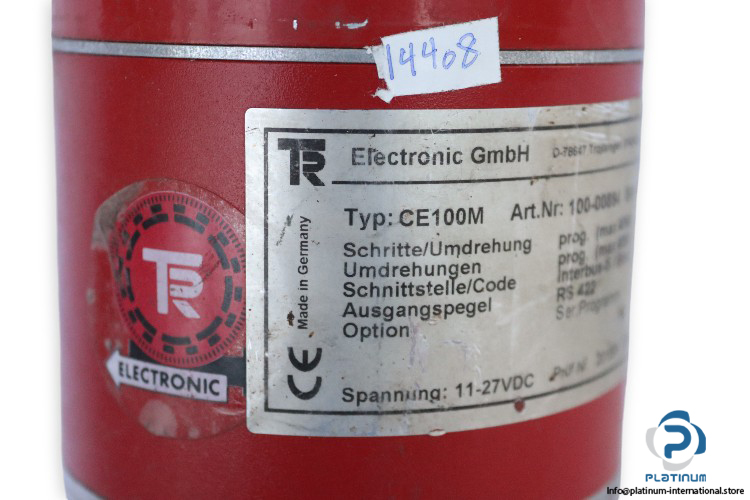

🔧 Technical Specifications:
- Manufacturer: TR ELECTRONIC
- Type: Absolute Encoder
- Model: CE100M
- Art. No.: 100-00894
- Shaft Diameter: 12 mm
- Steps Per Revolution: 4,096 PPR
- Revolutions: 4,096
- Absolute Value Code: Binary
- Output Interface: Interbus-S RS422
- Voltage Supply: 11 to 27 V DC
- Protection Class: IP54
- Temperature Range: 0 to 60 °C
With a robust **IP54-rated housing**, the **TR ELECTRONIC CE100M Absolute Encoder** is built for durability in demanding environments. Its **12 mm shaft diameter** and wide **temperature range (0 to 60 °C)** make it versatile for various industrial applications.
