Tramec REP150/2 Planetary Gearbox
중고
재고 있음2 단위즉시 배송 가능
199,99$
Planetary Gearbox
Tramec REP150/2 planetary gearbox with 9:1 ratio, 150 Nm torque capacity, dual-stage reduction, and robust steel construction for industrial drive systems.
방대한 재고
글로벌 배송
전문 지원
품질 보장

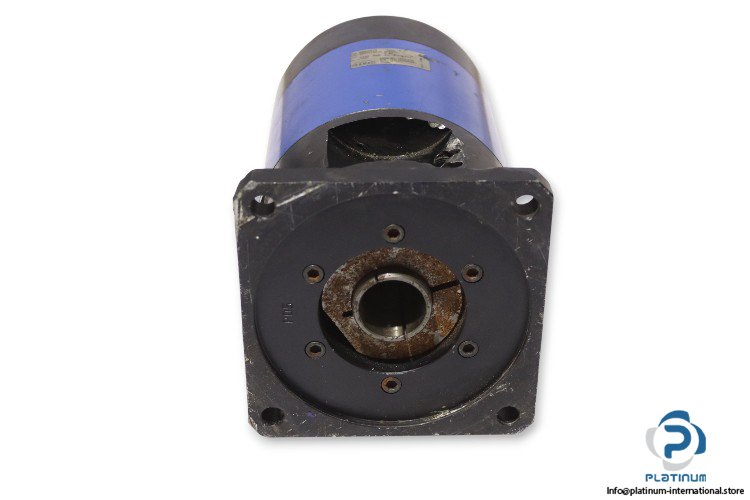

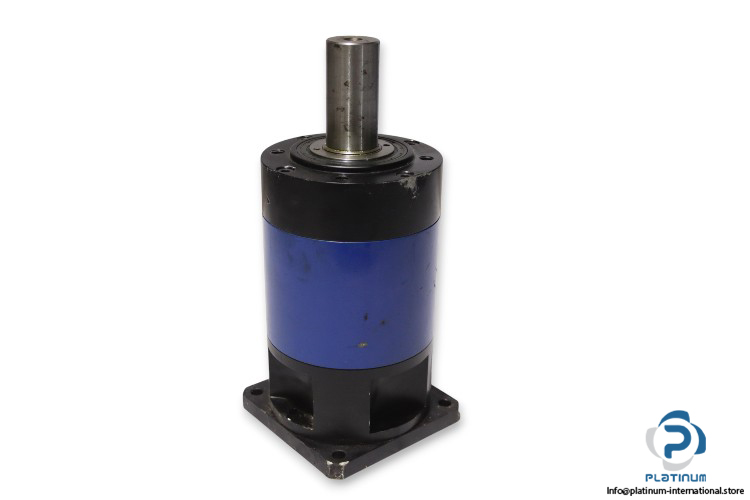

Tramec REP150/2 Planetary Gearbox
The Tramec REP150/2 is a heavy-duty planetary gearbox engineered for high torque transmission, precise motion control, and reliable operation in demanding industrial applications.

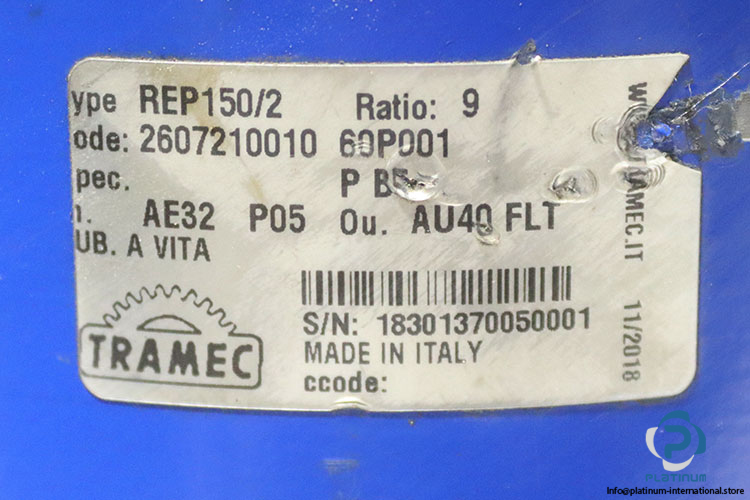

Manufacturer: Tramec
Type: Planetary Gearbox
Model: REP150/2
Code: 2607210010 60P001
Serial No.: 18301370050001
Material and Construction
| Size | 150 with 2 reduction stages |
| Ratio [i] | 9 |
| Torque Range T2M | 150 Nm |
| Number of Stages | 2 |
| Shaft Diameter | 40 mm |
| Hollow Shaft | 32 mm |
| Flange Diameter | 140 mm |
| Speed | 3500 rpm (Nominal), 5000 rpm (Max) |
| Housing | Special nitride steel for high strength, reliability, and long service life |
| Input and Output Flanges | Aluminum construction |
| Shafts | Hardened and tempered alloy steel for superior wear resistance |
| Gears | Case-hardened and tempered alloy steel with ground toothing |
| Bearings | High-quality bearings for long life and low-noise operation |
