Trimod Besta A0104 Level Switch
신제품
재고 있음1 단위즉시 배송 가능
Trimod Besta A 01 04 Level Switch “ PN 25 rated level switch with G1/2 connection, stainless steel wetted parts, IP65 housing, and 0“300 °C operating range for high-demand industrial environments.
0104aAutomationBestaControlg1/2HighIndustrialIP65LevelLiquidMarineMicroswitchPN25ProcessSensorSpdtstainlessSteelSwitchTempTrimod
방대한 재고
글로벌 배송
전문 지원
품질 보장

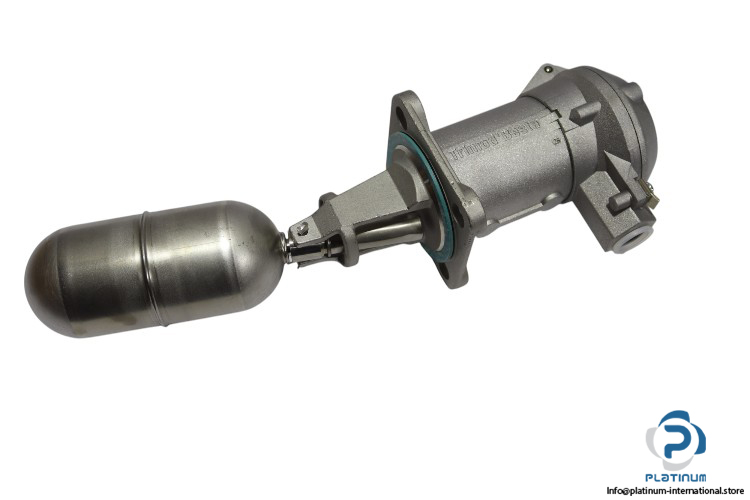

Trimod Besta A 01 04 Level Switch
The Trimod Besta A 01 04 is a robust industrial level switch designed for liquid monitoring under high temperature and pressure conditions. Engineered for reliability, it features a seawater-resistant housing and stainless steel wetted parts, ideal for demanding applications in marine, chemical, and industrial environments.
Manufacturer: Trimod Besta
Type: Level Switch
Model: A 01 04
| Nominal Pressure | PN 25 according to EN/DIN |
| Min. Density of the Liquid | 0.7 kg/dm³ |
| Switch Rating | 250 VAC, 30 VDC |
| Current | 5 A |
| Switch Element | Microswitch SPDT with silver contacts |
| Operating Differential | 12 mm, fixed |
| Overall Length | 365 mm |
| Flange Square | 92 x 92 mm, 92 mm PCD |
| Protection Class | IP65 |
| Housing Material | Seawater Resistant Die Cast Aluminum |
| Wetside Material | Stainless Steel (CrNiMo) |
| Operating Temperature | 0 to 300 °C |
| Ambient Temperature | 0 to 70 °C |
| Connection | G1/2 |
