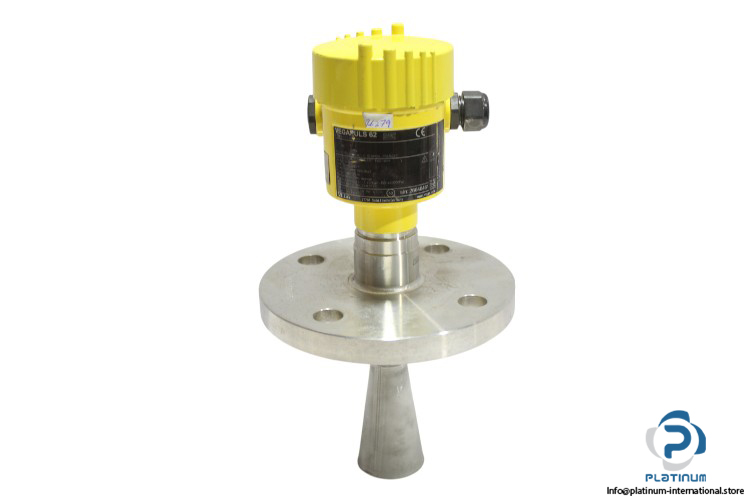

Vega Vegapuls 62 Radar Level Sensor
신제품
재고 있음1 단위즉시 배송 가능
622,22$
Radar Sensor for Continuous Level Measurement
The Vega VEGAPULS62 radar sensor provides continuous level measurement for liquids, featuring a 35 m measurement range, high protection rating, and wide process temperature and pressure capabilities. Ideal for extreme industrial applications with reliable performance in harsh environments.
방대한 재고
글로벌 배송
전문 지원
품질 보장
Vega VEGAPULS62 “ Radar Sensor for Continuous Level Measurement of Liquids
The Vega VEGAPULS62 is a high-precision radar sensor designed for continuous level measurement of liquids in challenging environments. With advanced features like a wide measurement range and robust housing materials, it ensures reliable performance in extreme conditions, from -196°C to 450°C and pressures up to 40 bar.

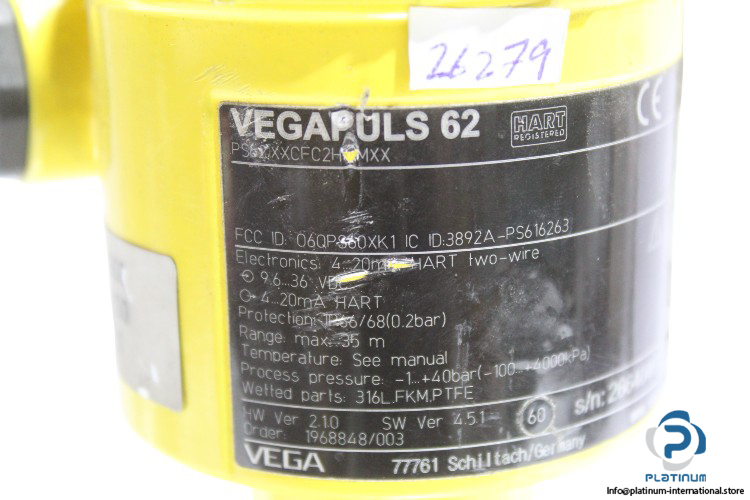

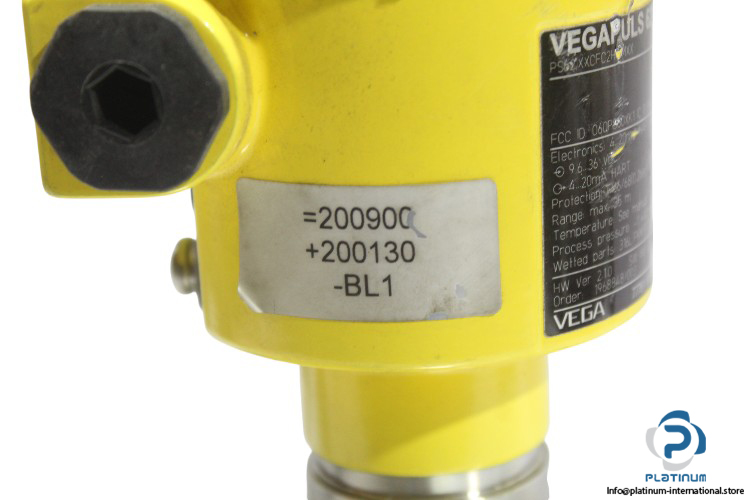

Manufacturer: Vega
Type: Radar Sensor for Continuous Level Measurement of Liquids
Model: VEGAPULS62
MNR: PS62.XXCFC2HAMXX
ID. No.: 060PS60XK1 IC / 3892A-PS616263
Order No.: 1968848/003
HW version: 2.1.0
SW version: 4.5.1

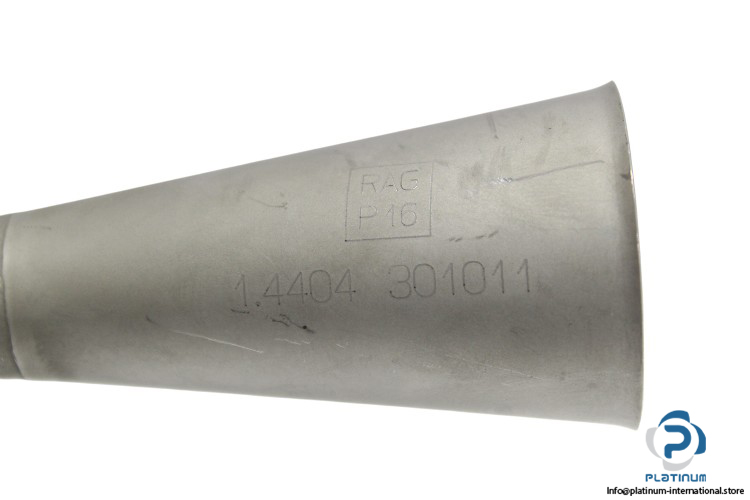

Flange Ring Part No.: 301011

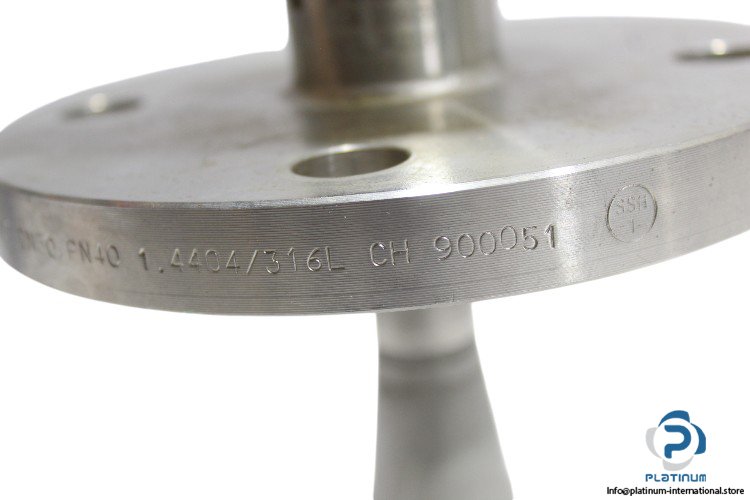

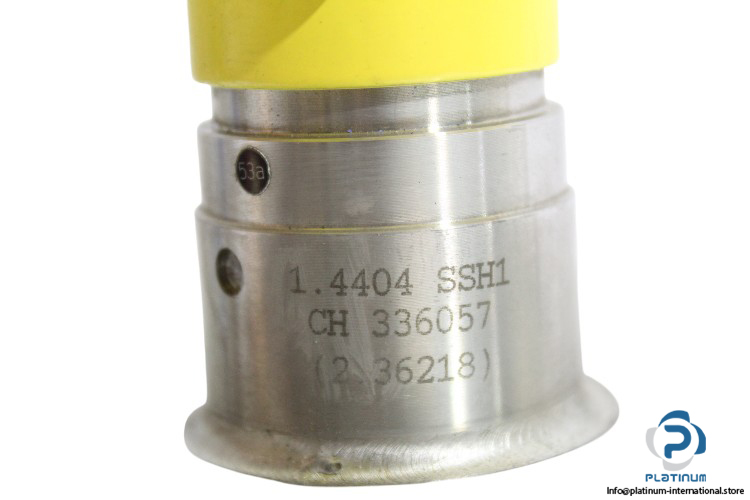

Ring, Flange No.: CH 336057 (2.36218) CH 900051
| Measuring Distance Range | 35 m |
| Operating Voltage | 9.6 to 36 V DC |
| Process Temperature | -196 to 450°C |
| Process Pressure | -1 to 40 bar |

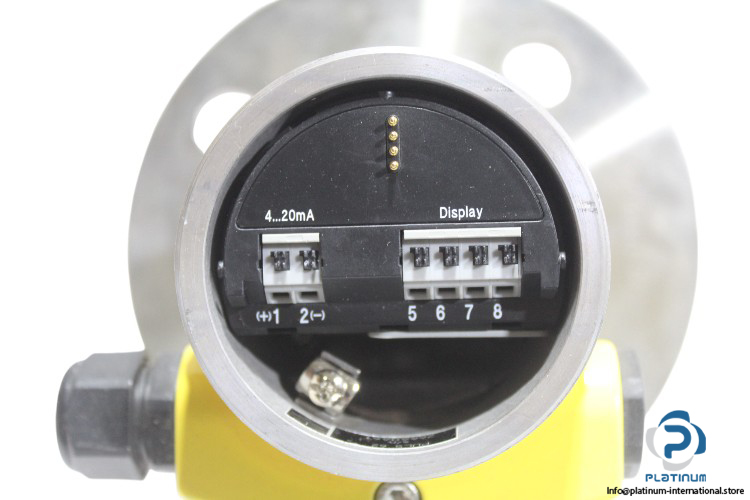

| Output | Two-wire: 4 to 20 mA/HART |
| Frequency | 26 GHz |
| Beam Angle | Bigger than 3° |
| Threaded Connection | G1½, 1½ NPT |
| Flange Connection | DN50, 2 |
| Seal Material | FKM, FFKM, Graphite and Ceramic |
| Housing Material | Plastic, Aluminum, Stainless Steel (Precision Casting), Stainless Steel (Electropolished) |
| Protection Rating | IP66/IP68 |
| Ambient Temperature | -40 to 80 °C |
| Surface Finish | SSH1 |

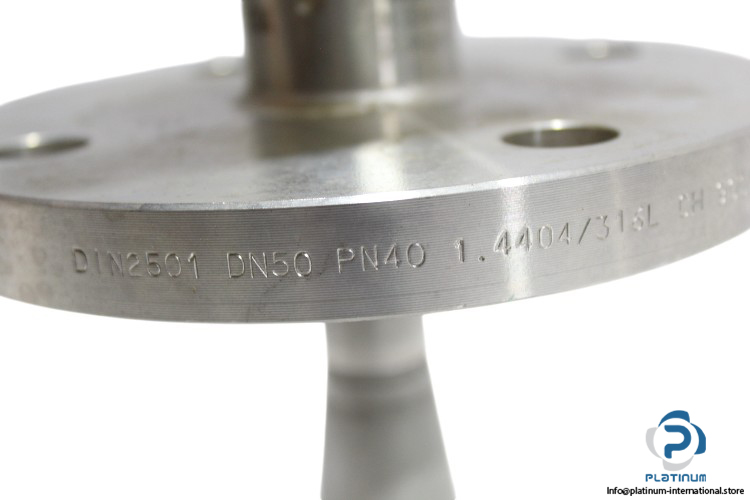

| Nominal Flange Pressure (PN40) | 40 bar |
| Nominal Flange Diameter (DIN2501, DN50) | 50 mm |
| Flange Ring Material (1.4404 316L) | Stainless Steel |
