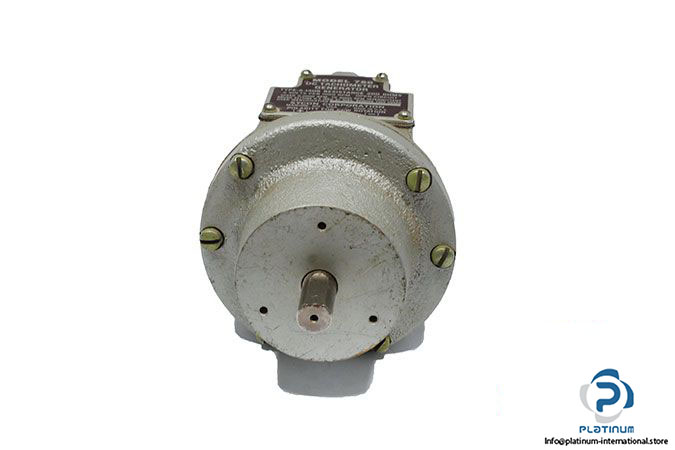

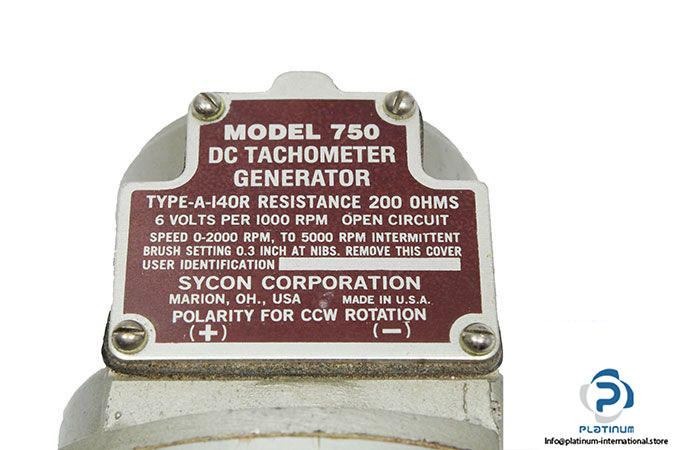

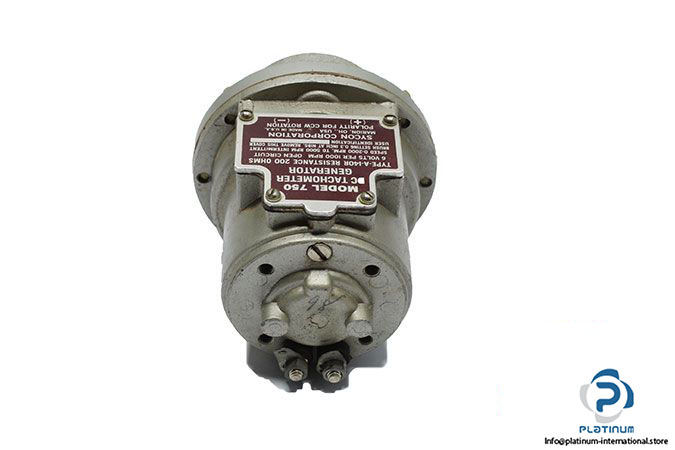

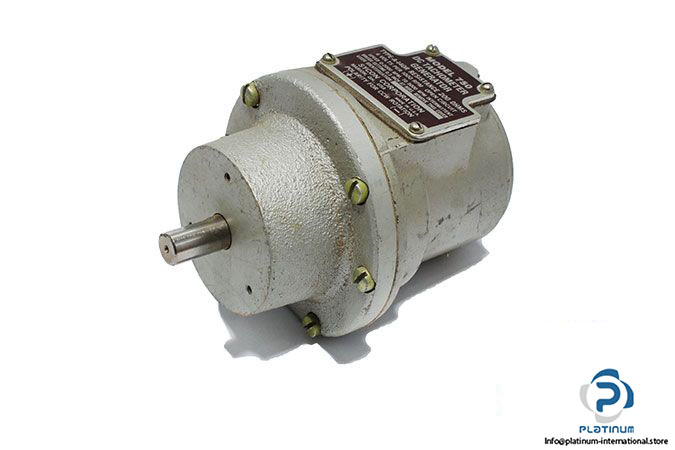

Westcon 750 DC Tachometer Generator
신제품
재고 있음1 단위즉시 배송 가능
366,66$
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: WESTCON
Type: DC Tachometer Generator
Model: 750
Part No.: A140R
Voltage Output at 1000 RPM: 6 Volts ±1% Per 1000 RPM
Permissible Current Drain: 50 mA
Number of Brushes: 2 Per Set
Composition of Brushes: Palladium Silver Alloy
Armature: 12 Bars, 12 Slots
Insulation: Insulation Class 105
Hi-Pot Test: 500 Volts for 1 Min.
Bearings: Ball
Normal Continuous Speed: 2000 RPM
Min Top Speed: 100 RPM
Max Speed 2: 5000 RPM
Temperature Compensation: 0.1% Per 10°C Change
Mounting: SAE 7/8″ Screw
Weight: 1 Kg
