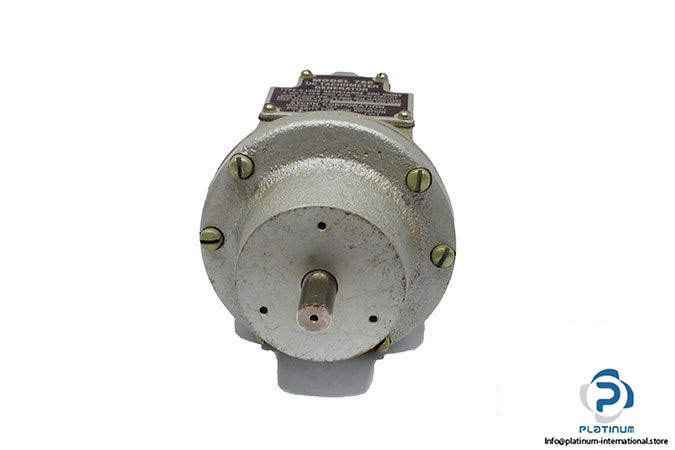

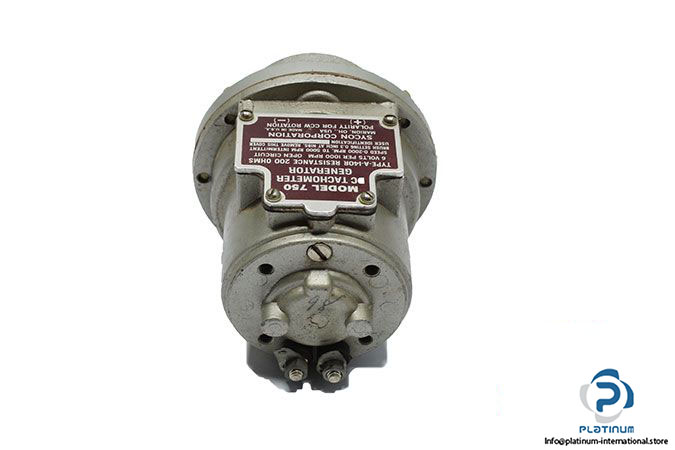

Westcon 750 DC Tachometer Generator

Manufacturer: WESTCON

Type: DC Tachometer Generator

Model: 750

Part No.: A140R

Voltage Output at 1000 RPM: 6 Volts ±1% Per 1000 RPM

Permissible Current Drain: 50 mA

Number of Brushes: 2 Per Set

Composition of Brushes: Palladium Silver Alloy

Armature: 12 Bars, 12 Slots

Insulation: Insulation Class 105

Hi-Pot Test: 500 Volts for 1 Min.

Bearings: Ball

Normal Continuous Speed: 2000 RPM

Min Top Speed: 100 RPM

Max Speed 2: 5000 RPM

Temperature Compensation: 0.1% Per 10°C Change

Mounting: SAE 7/8″ Screw

Weight: 1 Kg
