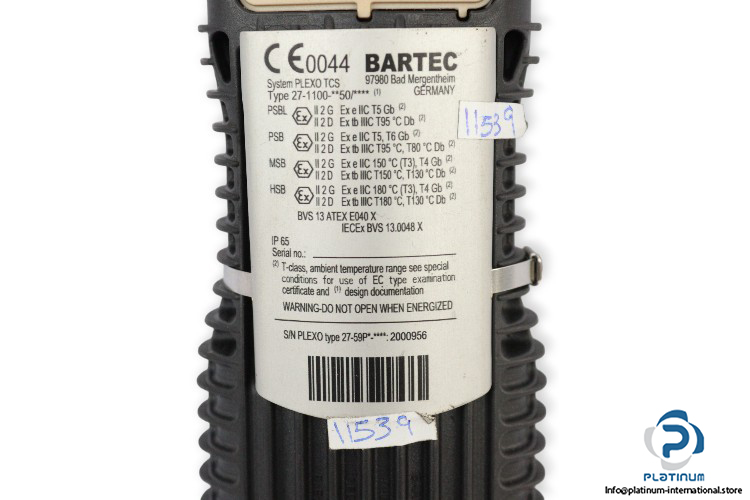

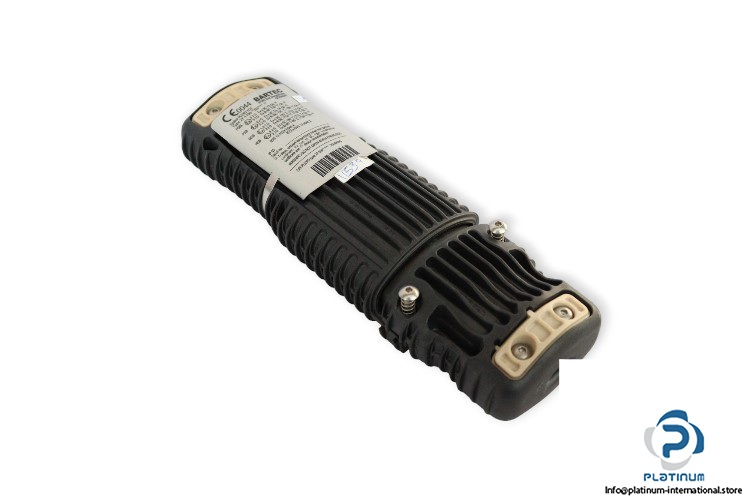

Bartec Plexo TCS Connection System

Manufacture: Bartec
Type: Connection system
Model: 27-1100-**50/**** ⁽¹⁾
Part No.: PLEXO TCS

Used: for BARTEC self-limiting heating tapes
Rated voltage: max. 254 V
Rated current: max. 16 A
Protection class: EN 60079-0 IP 65, EN 60529 IP 66/IP 68
Operating temperature range: Ex application: -60 … 180 °C, Non Ex application: -60 … 200 °C
Ex protection type PLEXO TCS with heating tape: II 2G Ex e IIC T5 Gb, II 2D Ex tb IIIC T95 °C Db
Certification PLEXO TCS with heating tape: BVS 13 ATEX E 040 X, IECEx BVS 13.0048X, TC RU C-DE.ГБ06.B.00230
Rated cross-section of supply cable: max. 4 mm²
Minimum installation temperature: -55 °C
Dimensions: 202.7 x 67 x 43.4 mm
