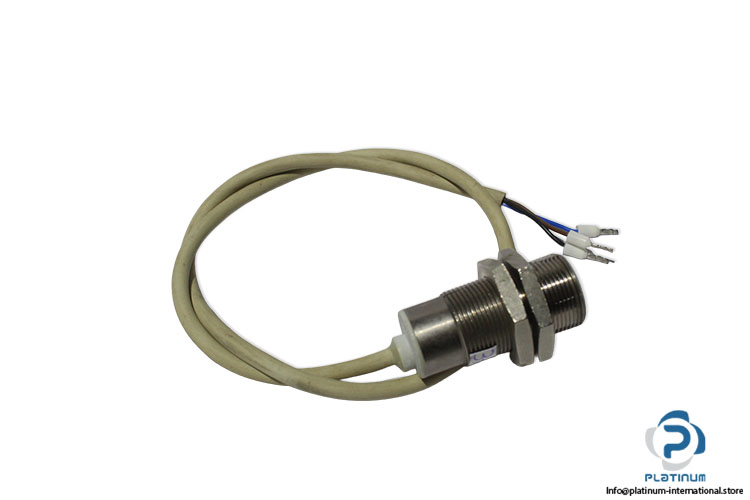

Baumer Mdrm 18U9524 0.43M Magnetic Angle Sensor
Gebruikt
Op voorraad3 eenhedenKlaar voor verzending
Magnetic Angle Sensor Baumer MDRM18U9524 magnetic angle sensor with a 160° linear measuring range, 1 to 9 VDC output signal, and IP67-rated brass housing for precise angular position sensing applications.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Code | H412 |
| Angular range | 160 degrees linear |
| Supply Voltage | 12 to 28 VDC |
| Current consumption | max. 20 mA |
| Output signal | 1 to 9 VDC |
| Working distance | max. 5 mm |
| Resolution | 0.09 degree |

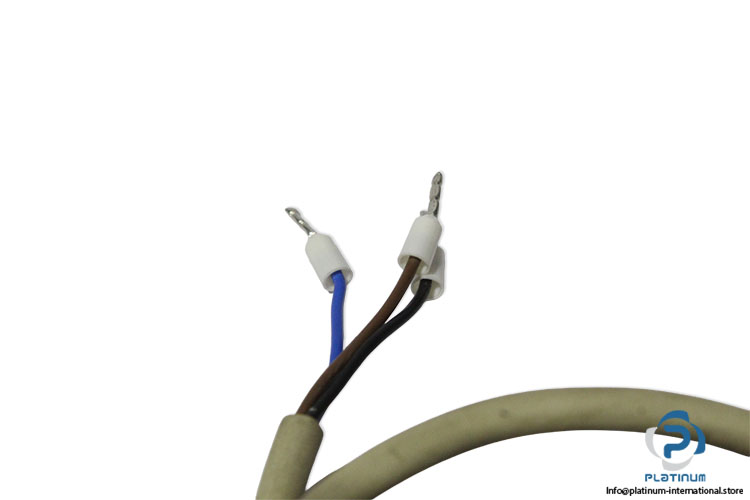

| Connection type | Cable PUR 3wires x 0,25, 43 cm |
| Design | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Operating temperature | -25 to +85 °C |
| Protection degree | IP 67 |
| Condition | Used |
| Stock Key | JO-004 |
| SKU | 1097916 |
| Weight | 0,04 |
