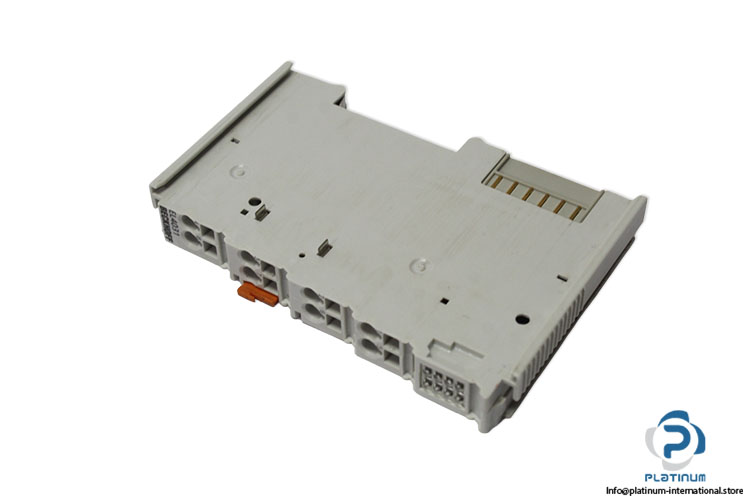

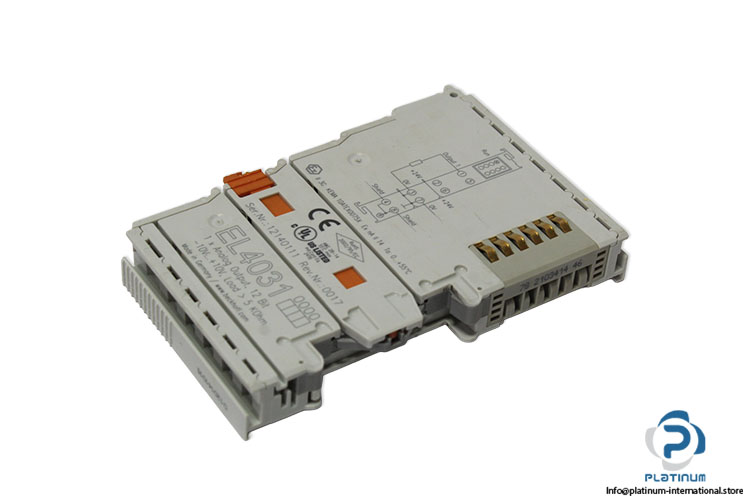

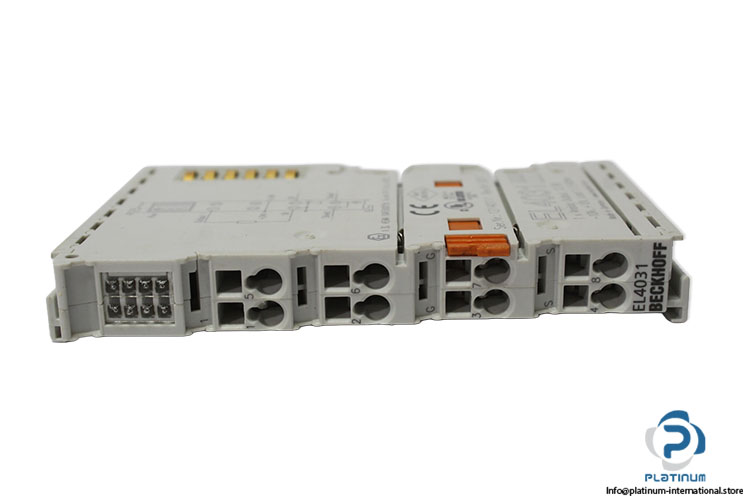

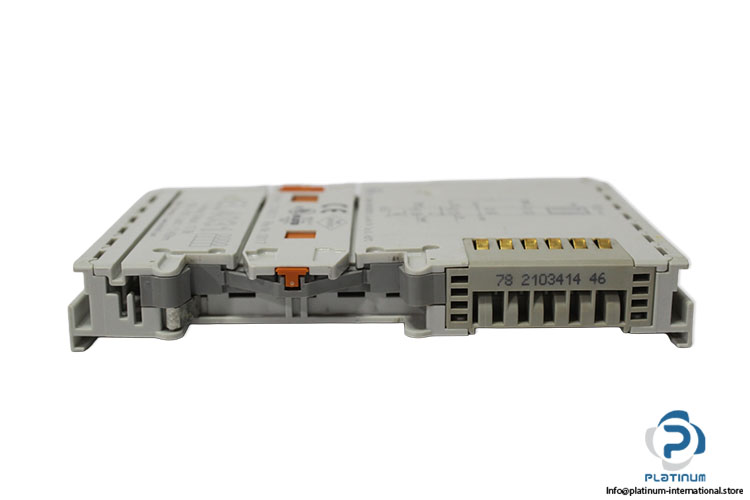

Beckhoff EL4031 Analog Output Terminal
Nieuw
Beschikbaar op aanvraag
Analog output EtherCAT Terminal The Beckhoff EL 4031 is a analog input EtherCAT terminal designed for precise industrial signal acquisition.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd

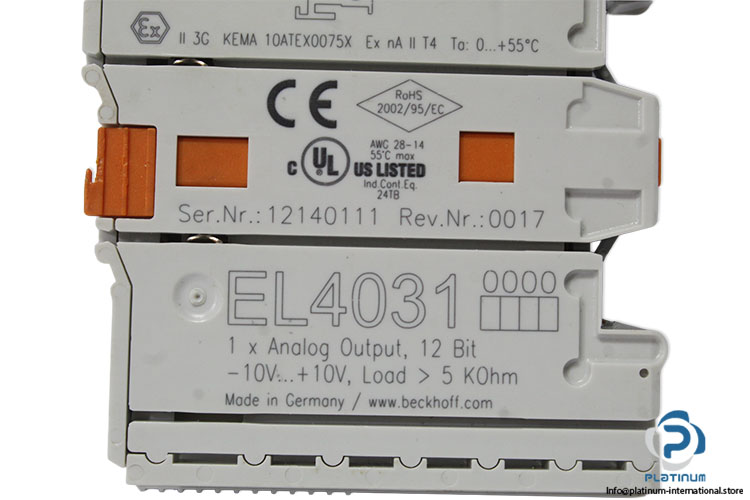

| Ser.Nr . | 12140111 |
| Rev.Nr . | 0017 |
| Number of analog outputs | 1 |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Signal voltage | -10…+10 V |
| Distributed clock accuracy | 1 µs |
| Load | 5 kO (short-circuit proof) |
| Resolution | 12 bit |
| Output error | 0.1% (relative to end value) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Conversion time | 100 µs |
| Current consumption power contacts typ. | 40 mA |
| Current consumption E-bus | typ. 140 mA |
| Bit width in the process image | 1 x 16 bit AO output |
| Special features | Optional watchdog: user-specific output value with ramp; user synchronization can be activated. |
| Operating temperature | -25…+60°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/variable |
| Pluggable wiring level | for all ESxxxx terminals |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| Ex marking ATEX | II 3G Ex ec IIC T4 Gc/IECEx:Ex ec IIC T4 Gc/cFMus:Class I, Division 2, Groups A, B, C, D/Class I, Zone 2, Ex ec IIC T4 Gc |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Wiring | solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver |
| Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Stock key | CH001 |
| Condition | New |
| SKU | 1100866 |
| Weight | 0,06 |
