B&R X67SM2436 BIPOLAR STEPPER MOTOR MODULE

Name: B&amp;R X67SM2436 BIPOLAR STEPPER MOTOR MODULE
SKU: 1099684
Availability: LimitedAvailability

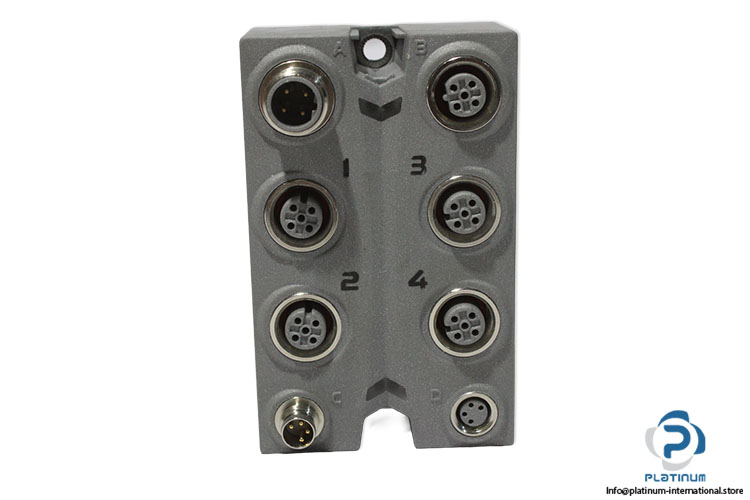

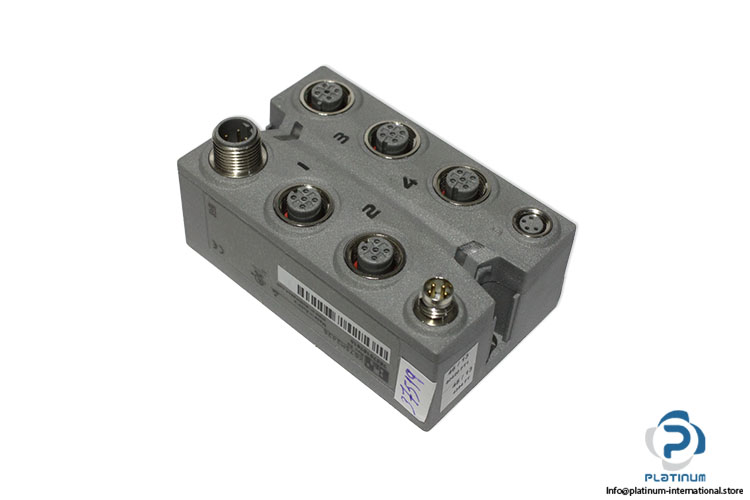

br-X67SM2436-digital-mixed-i-o-module(new)

br-X67SM2436-digital-mixed-i-o-module(new)-1

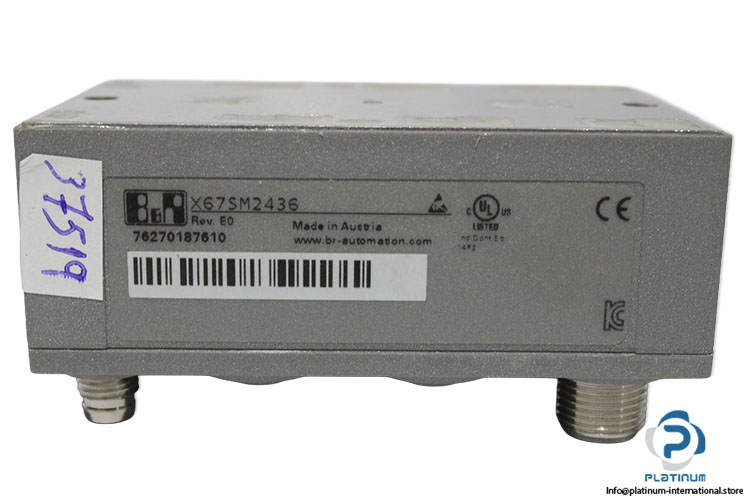

br-X67SM2436-digital-mixed-i-o-module(new)-2

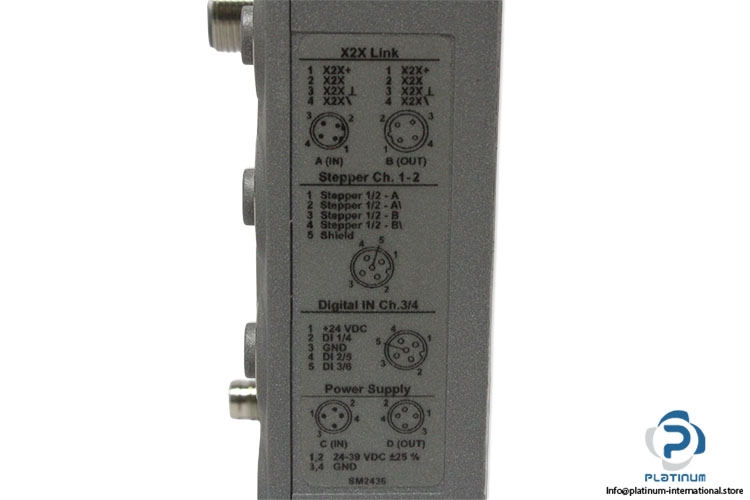

br-X67SM2436-digital-mixed-i-o-module(new)-3

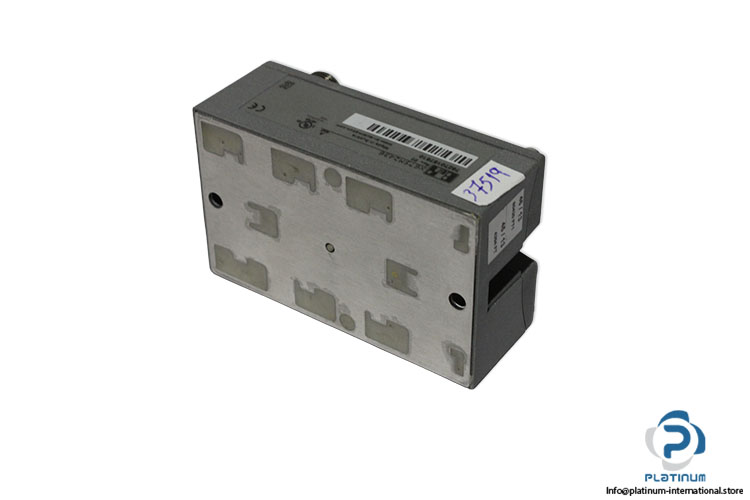

br-X67SM2436-digital-mixed-i-o-module(new)-4

Nieuw

Op voorraad1 eenheidKlaar voor verzending

2-Phase Bipolar Stepper Motor Module B&R X67SM2436 stepper motor module featuring two output stages, six digital inputs, 256 microsteps per full step, IP67 protection, and support for 2-phase bipolar stepper motors.

Fabrikant

B&R

SKU

1099684

Categorie

Servo Motor Drives

Staat

Nieuw

Enorme Voorraad

Wereldwijde verzending

Deskundige Ondersteuning

Kwaliteit Gegarandeerd

Revision	E0
Ean. No.	76270187610
Series	X67
ID Code	0x1DCB
Motor output stage	2
Digital inputs	6
Designed For	2 full bridges for controlling stepper motors
Connection type	X2X Link M12, B-coded,Inputs/Outputs 4x M12, A-coded,I/O power supply M8, 4-pin
Power consumption	X2X Link power supply 0.75 W,Internal I/O
Nominal voltage	24 to 38.5 VDC ±25%
Nominal current	3 A
Max. current/motor	5 A for 2 s (after a recovery time of at least 10 s at maximum 3 A)
Max. current/module	8 A
Controller frequency	38.5 kHz
DC bus capacitance	200 µF
Step resolution	256 microsteps per full step
ATEX	Zone 2, II 3G Ex nA IIA T5 Gc,IP67, Ta = 0 - Max. 60°C,TÜV 05 ATEX 7201X
UL	cULus E115267,Industrial control equipment
Protection Degree	IP67
Ambient Temperature	0 To 50°C
Dimensions	Width 53 mm x Height 85 mm x Depth 42 mm
Stock key	JO-004
Condition	New
SKU	1099684
Weight	0,20
