Festo 164318 Proportional Pressure Control Valve
Gebruikt
Op voorraad1 eenheidKlaar voor verzending
PROPORTIONELE DRUKREGELKLEP FESTO MPPE-3-1/4-2,5-420-B-klep biedt nauwkeurige pneumatische drukregeling met snelle respons en pilot-gestuurd zuigerontwerp.
5-420-BActuationControlControlledElectricalFestoG1/4IndustrialMppeMPPE-3-1/4-2PilotPneumaticPressureProportionalRegulationValve
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd

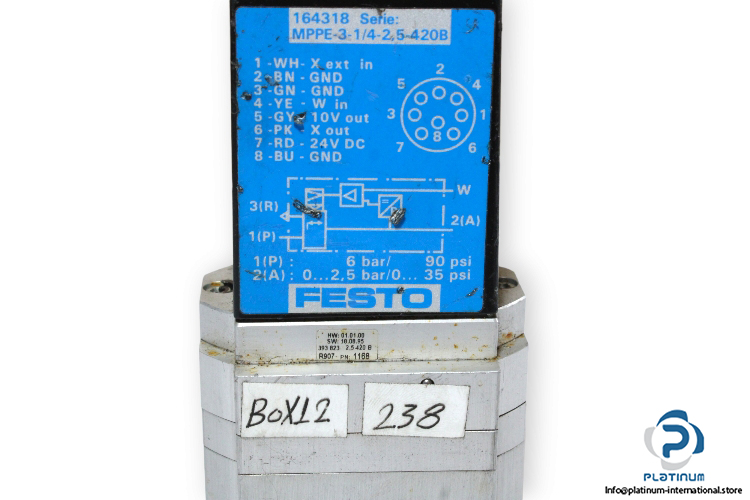

FESTO MPPE-3-1/4-2,5-420-B PROPORTIONAL PRESSURE CONTROL VALVE
The FESTO MPPE-3-1/4-2,5-420-B is a high-precision proportional pressure control valve engineered for reliable regulation in pneumatic systems. With electrical actuation and pilot-controlled piston design, it ensures optimal control performance and fast switching response.
Manufacturer: FESTO
Type: Proportional Pressure Control Valve
Model: MPPE-3-1/4-2,5-420-B
Part No.: 164318
| Nominal Width Pressurization | 7 mm |
| Actuation Type | Electrical |
| Structural Design | Pilot-Controlled Piston Control Valve |
| Operating Pressure | 4.5 bar |
| Pressure Regulation Range | 0 / 0.25 MPa |
| Pressure Hysteresis Max. | 0.04 bar |
| Switching Time Off | 260 ms |
| Switching Time On | 150 ms |
| Operating Voltage Range | 18 / 30 V DC |
| Pneumatic Connection | G1/4 |
