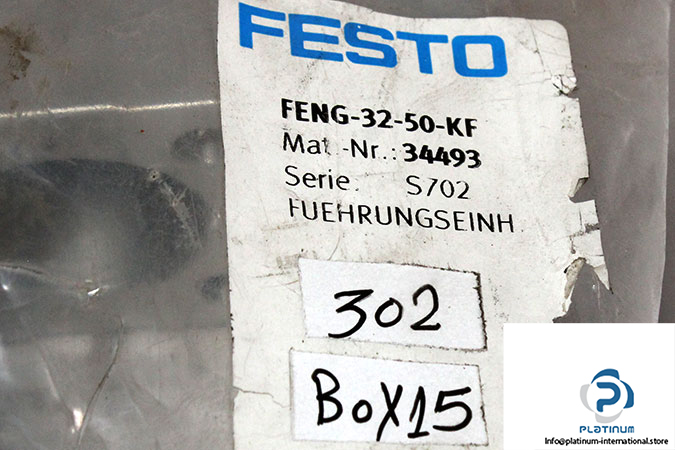

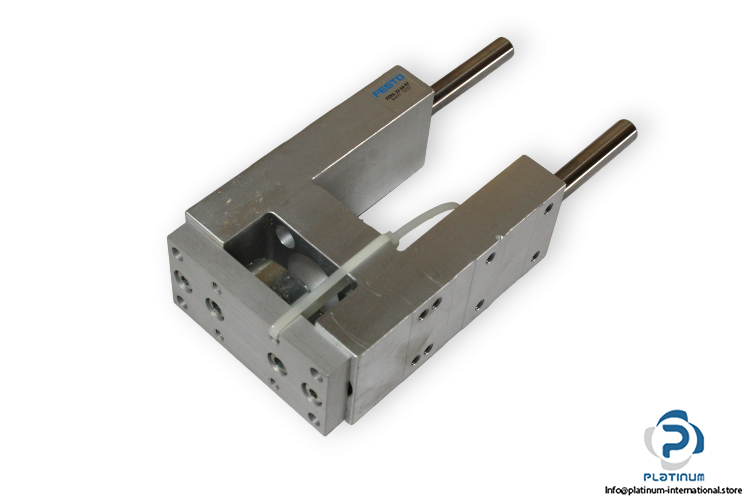

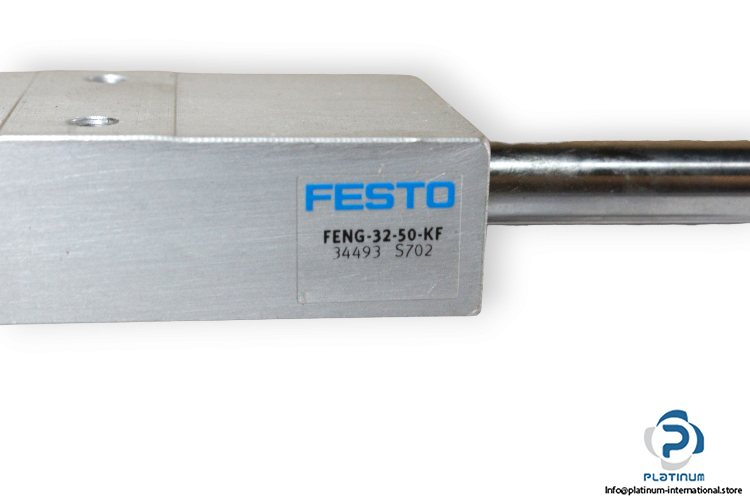

Festo 34493 Guide Unit

Manufacturer: FESTO

Type: Guide unit

Model: FENG-32-50-KF

Part No.: 34493



Size: 32

Stroke: 50 mm

Mounting position: Any

Guide: Recirculating ball bearing guide

Structural design: Guide

Ambient temperature: -20 °C … 80 °C

Max. force Fy: 750 N

Max. force Fy static: 1020 N

Max. force Fz: 750 N

Max. force Fz static: 1020 N

Max. torque Mx: 28 Nm

Max. static moment Mx: 38 Nm
