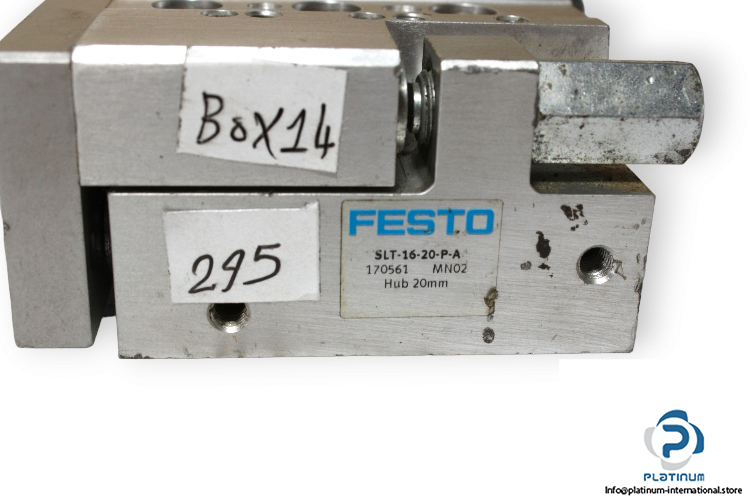

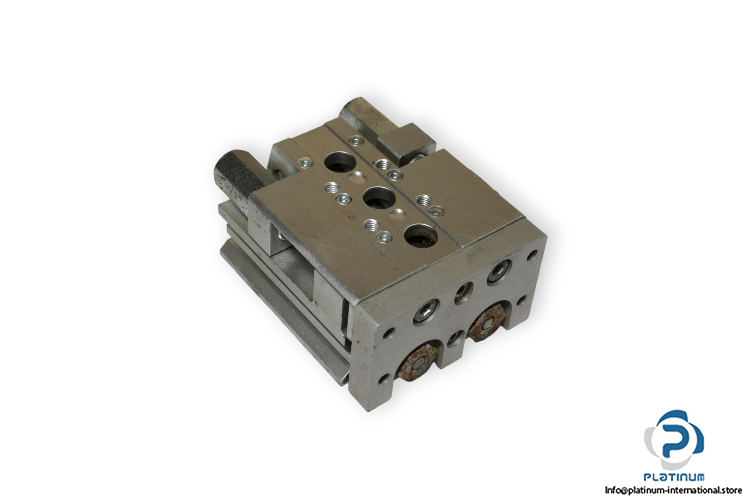

Festo 170561 Mini Slide

Manufacturer: FESTO

Type: Mini Slide

Model: SLT-16-20-P-A

Part No.: 170561



Stroke Length: 20 mm

Piston Diameter: 16 mm

Adjustable end-position range/length: 12 mm

Max. Operating Pressure: 10 bar

Mode of operation: Double acting

Cushioning: Flexible cushioning rings/plates at both ends

Pneumatic Connection: 5 mm

Temperature: -20 … 60 °C
