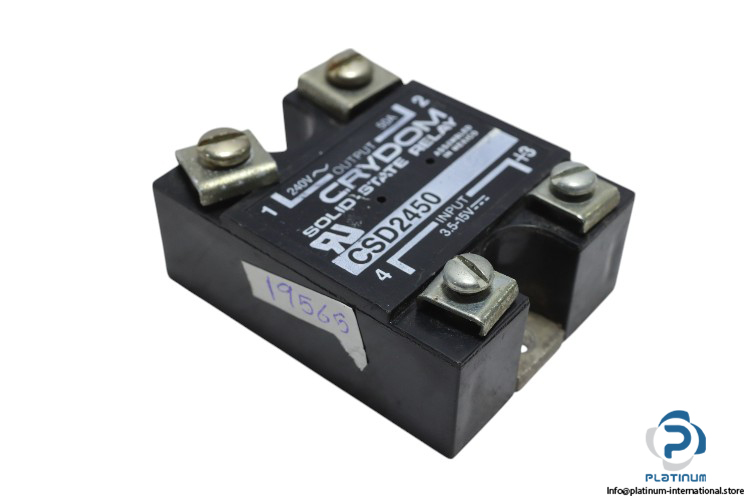

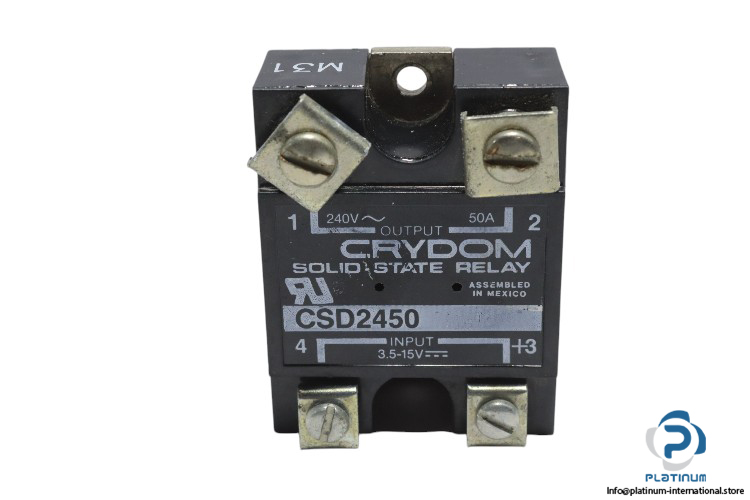

Crydom CSD2450 Solid State Relay
Solid State Relay (SSR) De Crydom CSD2450 Solid State Relay heeft een bedrijfsspanning van 24 tot 280 V AC, een belastingsstroom van 50 A en een transient overspanning van 600 Vpk. Ontworpen voor betrouwbaarheid in hoogspanningsindustrie toepassingen.
Crydom CSD2450 Solid State Relay
The Crydom CSD2450 Solid State Relay is designed for high-performance applications requiring reliable switching with excellent durability. Offering wide operating voltage and high load current ratings, this SSR provides precise control and is ideal for automation, industrial, and commercial applications.
Manufacturer: Crydom
Type: Solid State Relay (SSR)
Model: CSD2450
Series: CSD
The Crydom CSD2450 SSR ensures fast, reliable, and durable performance for high-voltage applications, ensuring efficient operation with minimal power loss.
| Operating Voltage | 24 to 280 V AC |
| Control Voltage | 3.5 to 15 VDC |
| Load Current Rating | 50 A |
| Transient Overvoltage | 600 Vpk |
| Max. Surge Current (16.6ms) | 597/625 Apk |
| Max. On-State Voltage Drop @ Rated Current | 1.6 Vpk |
| Thermal Resistance Junction to Case | 0.63 °C/W |
| Max. Off-State Leakage Current at Rated Voltage | 1 mA |
