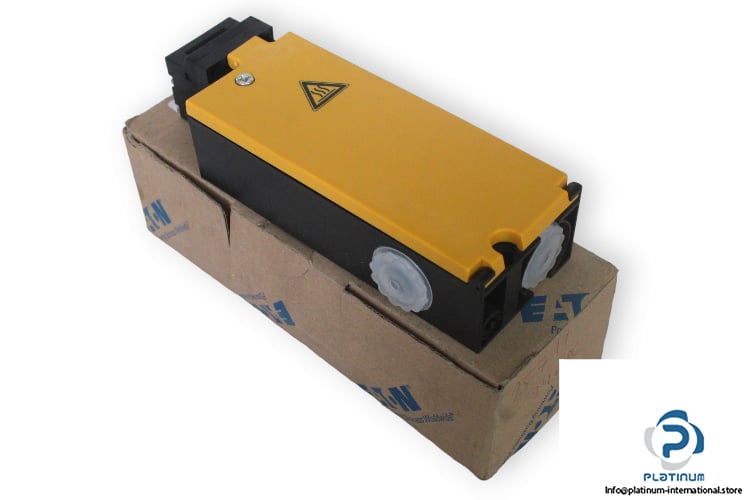

Eaton LS-S11-24DFT-ZBZ/X Position Switch

Manufacturer: EATON
Type: Position switch
Model: LS-S11-24DFT-ZBZ/X
Part no.: 106829

Suitable for: Safety functions
Contacts: 1N/O+1N/C
Rated impulse withstand voltage (Uimp): 4000 V AC
Rated conditional short-circuit current (Iq): 1 kA
Rated control supply voltage: 24 V DC
Repetition accuracy: 0.02 mm
Switch function type: Slow-action switch
Enclosure material: Insulated material
Screw size: PH1, Terminal screw
Electric connection type: Cable entry metrical
Connection type: Screw terminal
Degree of protection: IP65
Ambient temperature: -25 … 70 °C
Plastic Size: 55 x 170 x 37 mm
