Elau SH100/40080/0/0/00/00/00/00/00 Servo Motor
Gebruikt
Beschikbaar op aanvraag
Servo Motor
The Elau Schneider SH100/40080 servo motor offers 2.39 kW of rated power, 8.00 Nm stall torque, and a 6000 rpm max speed. With precise encoder signals and a protection class of 50 (65 IP), it’s ideal for high-precision applications in industrial environments.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
Elau Schneider SH100/40080 Servo Motor
The Elau Schneider SH100/40080 is a high-performance servo motor designed for precise motion control applications. With a rated power of 2.39 kW and a stall torque of 8.00 Nm, it offers high-speed capabilities up to 6000 rpm, ensuring smooth and reliable operation in industrial environments.

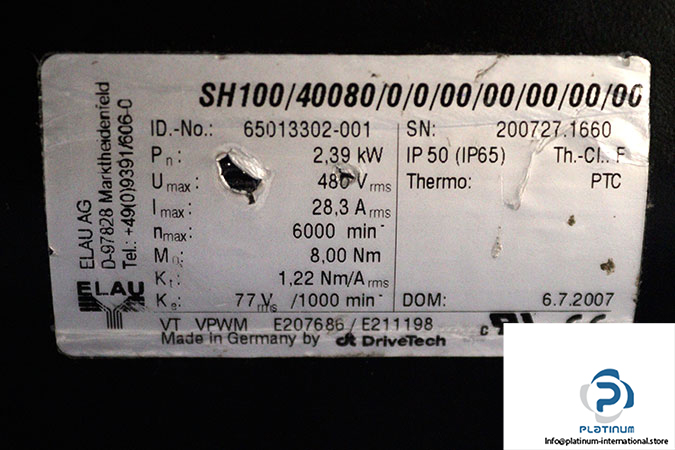

Manufacturer: Elau, Schneider
Type: Servo Motor
Model: SH100/40080/0/0/00/00/00/00/00
ID Number: 65013302-001
Ref No: E207686 / E211198
SN: 200727.1660
Technical Data:
- Rated Power: 2.39 kW
- Stall Torque: 8.00 Nm
- Max. Current: 28.3 A
- Max. Voltage: 480 V
- Max. Speed: 6000 rpm
- Torque Constant: 1.22 Nm/A
- Thermal Class: F
- Thermo Couple: PTC
- Voltage Constant: 77 V/min-1
- Protection Class: 50 (65 IP)
- Encoder Signal Form: Sine
- Encoder Supply Voltage: 7 / 12 V
- Encoder Supply Current: MAX 60 Ma (without Load)
