Eurotherm 2604 Advanced Process Controller / Programmer
Gebruikt
Op voorraad1 eenheidKlaar voor verzending
Advanced Process Controller
EUROTHERM 2604 multi-loop process controller with 90“265 V AC supply, advanced I/O, and communication options including DeviceNet, Modbus, and Profibus.2604AdvancedControllerDevicenetDINEurothermIndustrialIP65LoopModbusMultiPanelProcessProfibusProgrammer
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd

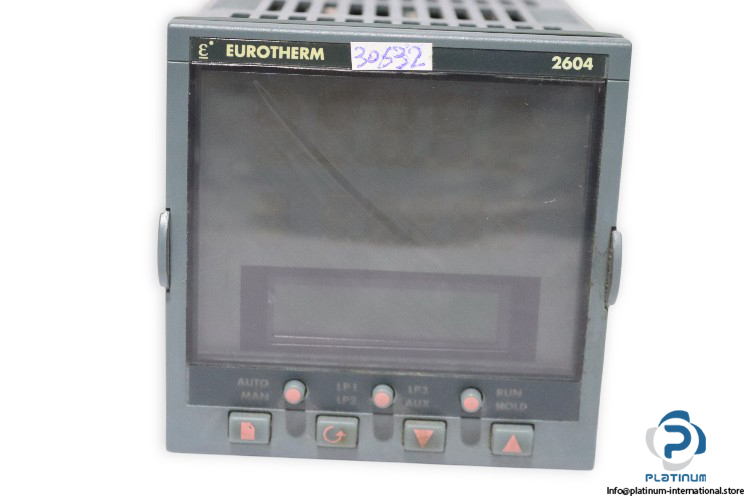

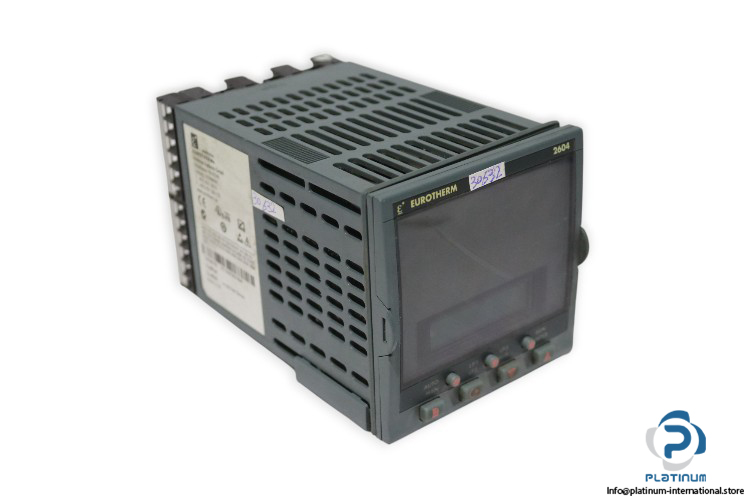

EUROTHERM 2604 Advanced Process Controller/Programmer
The EUROTHERM 2604 is a high-performance process controller and programmer designed to handle complex industrial control applications. With multi-loop capability, flexible inputs and outputs, and advanced communication options, it delivers precise and reliable process management for demanding environments.
Manufacturer: EUROTHERM
Type: Advanced Process Controller/Programmer

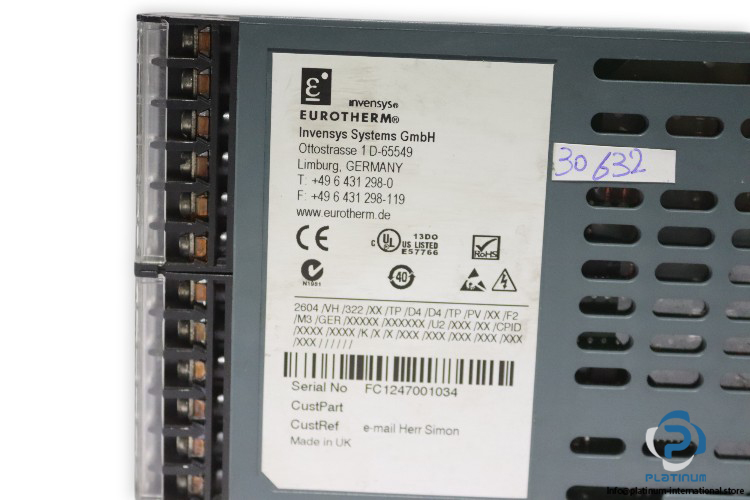

Model: 2604/VH/322/XX/TP/D4/D4/TP/PV/XX/F2/M3/GER/XXXXX/XXXXXX/U2/XXX/XX/CPID/XXXX/XXXX/K/X/X/XXX/XXX/XXX/XXX/XXX/XXX//////
| Power Supply | 90 / 265 V AC |
| Frequency | 48 / 62 Hz |
| Display Type | 2 x 5 Dig LED + 2 Line Text |
| Control Function | 3-Loop |
| Input Type | mA, mV, RTD, TC, Volts |
| Alarm Relay | SPST (240 V AC, 2 A) |
| Digital Inputs | 44 |
| Analogue Input | 8 |
| Digital Outputs | 42 |
| Analogue Output | 8 |
| Serial Communications | DeviceNet, Modbus, Profibus |
| Panel Size | DIN 1/4 |
| Protection Class | IP65 |
| Temperature Range | 0 / 50 °C |
| Dimensions | 96 x 96 x 159 mm |
