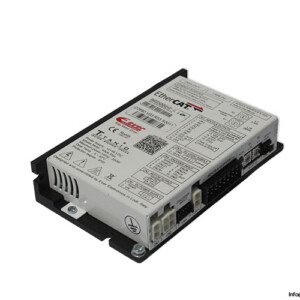

Ever SN4D2040H2L1-00 Stepper Motor Drive
Nieuw
Op voorraad1 eenheidKlaar voor verzending
Ever Elettronica EtherCAT stepper motor drive from the TITANIO family, designed for 2-phase stepper motors with advanced motion control, EtherCAT CoE communication, Stepless Control Technology, and integrated protection features.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Series. | SN4D |
| version | c0680 |
| Code | C0680 V02 R36 S0001 |
| SN | 232 9857 635 01 02 01 |
| Family | TITANIO |
| Power supply | 12 -48 Vdc |
| Logic Power supply | 12 - 48 Vdc |
| Current | 0 - 4.0 Arms |
| Digital inputs | 2 |
| Digitali outputs | 2 |
| Interface | EtherCAT CoE |
| Modes | Fieldbus EtherCAT (slave)/ c0690 e3PLC IDE Studio (programmable) |
| EtherCAT Fieldbus vectorial drivers for | 2 phases stepper motors |
| COMMUNICATION INTERFACE | EherCAT CoE |
| ENCODER INTERFACE | incremental encoder not isolated input 5V Single-Ended (TTL/CMOS) |
| SCI INTERFACE | service SCI interface for programming and real time debug |
| OPTOISOLATED INPUTS | 2 digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz |
| OPTOISOLATED OUTPUTS | 2 digital outputs PNP, 24 Vdc - 100 mA |
| EMULATED STEP RESOLUTION | Stepless Control Technology |
| SAFETY PROTECTIONS | Over/UnderVoltage, OverCurrent, OverTemperature, Phase/Phase and Phase/Ground Short |
| Maximum power | 190W |
| Temperature operating | from 5°C to 40°C |
| HUMIDITY | 5% ÷ 85% |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099680 |
| Weight | 0,33 |
