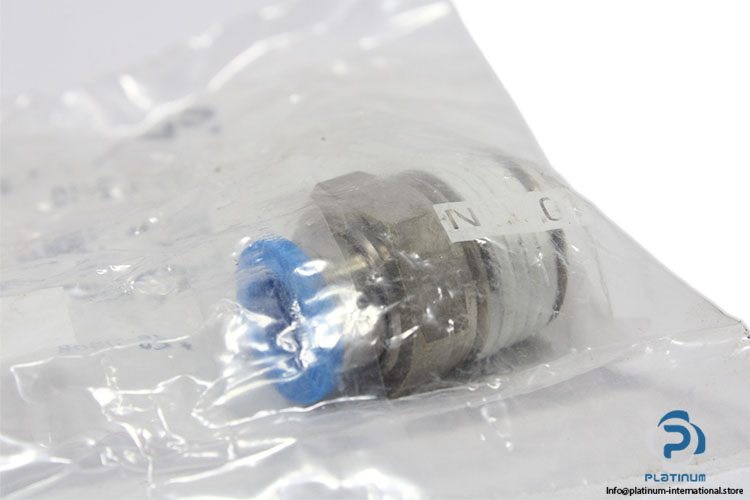

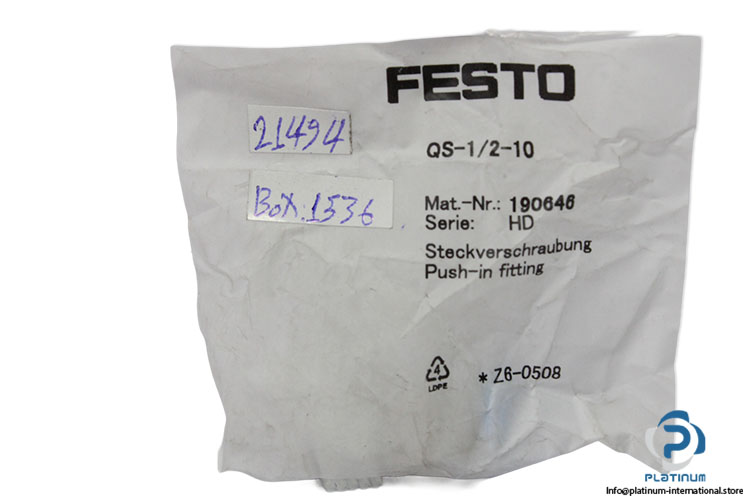

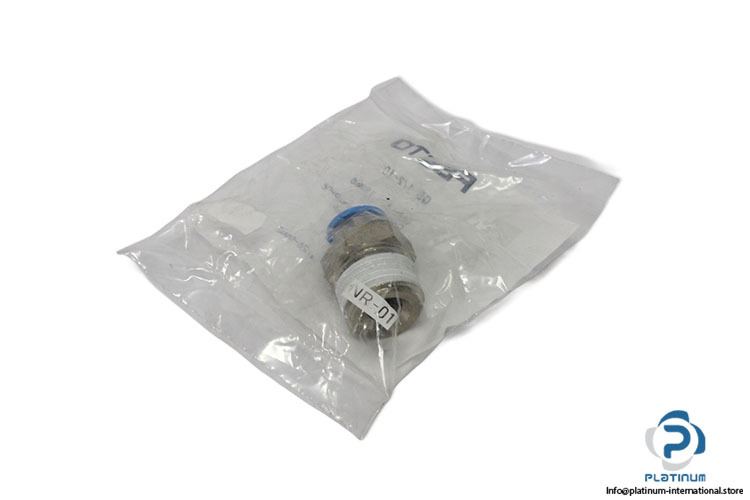

Festo 190646 Push-IN Fitting
Nieuw
Op voorraad18 eenhedenKlaar voor verzending
Push-In L-Fitting Industrial FESTO pneumatic push-in L-fitting designed for compressed air and water applications with reliable push-pull connection technology and nickel-plated brass construction.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Part No. | 190646 |
| Series | QS |
| Fluid | Compressed Air / Water (Liquid, Ice-Free) |
| Design | Straight Push-Pull Principle |
| Nominal Size | 9 mm |
| Operating Pressure | -0.95 ... 6 bar / -0.095 ... 1.4 MPa |
| Water Pressure Max. | 0.6 MPa |
| Tubing Insertion Depth | 20.7 mm |
| Pneumatic Connection, Port 1 | Male Thread R1/2 |
| Pneumatic Connection, Port 2 | For Tubing Outer Diameter Of 10 mm |
| Material | Brass, Nickel-Plated |
| Ambient Temperature | -10 ... 80 °C |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1102235 |
| Weight | 0,04 |
