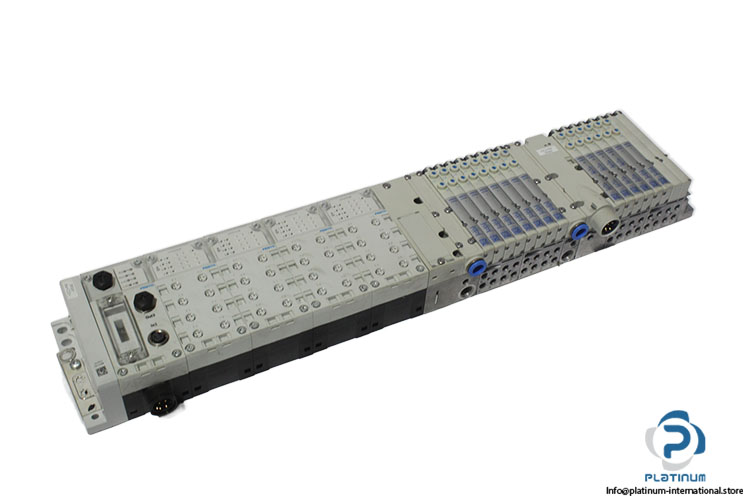

Festo 530411 14-VALVE Terminal
Gebruikt
Op voorraad2 eenhedenKlaar voor verzending

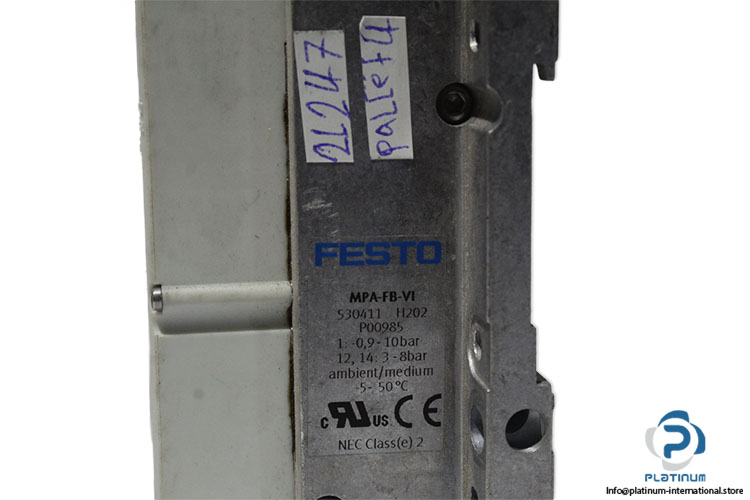

FESTO MPA-FB-VI Valve Manifold Modular pneumatic valve manifold for compressed air systems, featuring electrical actuation, up to 64 valve positions, multiple pressure zones, IP67 protection, and integrated FESTO control components.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Art. No. | 530411 |
| Fluid | Compressed Air |
| Actuation Type | Electrically |
| Valve Positions Max. No. | 64 |
| Pressure Zones Max. No. | 17 |
| Valve Size | 15 mm |
| Pilot Air Supply Port | External/Internal |
| Operating Pressure | -0.9 ... 10 bar/ -0.09 ... 1 MPa |
| Pilot Pressure | 3... 8 bar |
| Valve Positions No. | 32 |
| Pressure Zones No. | 16 |
| Protection Class | IP67 |
| Ambient Temperature | -5 ... 50 °C |

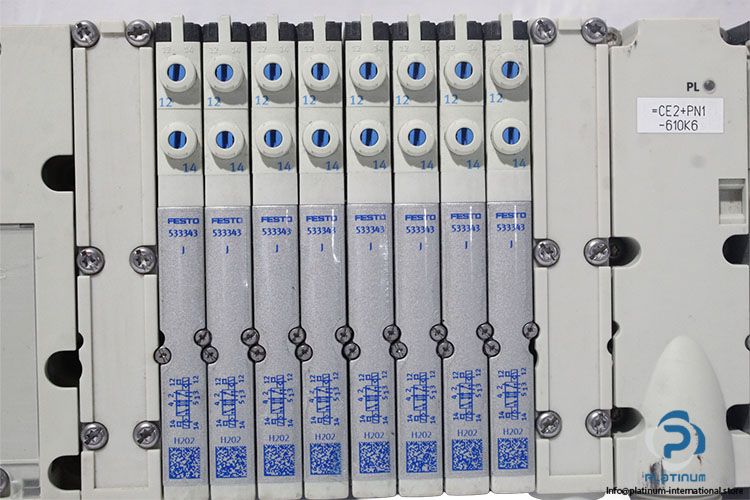

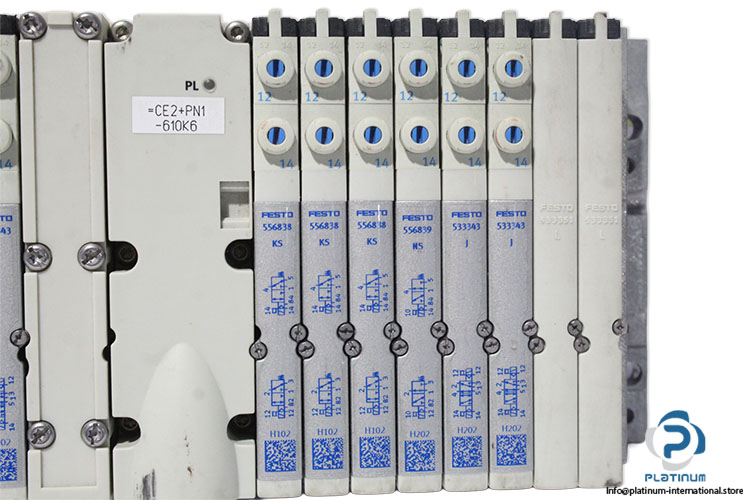

| Attachment 1 | FESTO 533343 SOLENOID VALVE |
| Solenoid Valve Manufacturer | FESTO |
| Attachment 1 Type | Solenoid Valve |
| Solenoid Valve Model | VMPA1-M1H-J-PI |
| Solenoid Valve Part No. | 533343 |
| Solenoid Valve Fluid | Compressed Air |
| Solenoid Valve Function | 5/2 Bistable |
| Solenoid Valve Design | Piston Gate Valve |
| Solenoid Valve Type of Actuation | Electrically |
| Solenoid Valve Operating Pressure | -0.9 ... 10 bar / -0.09 ... 1 MPa |
| Solenoid Valve Pilot Pressure | 3 ... 8 bar / 0.3 ... 0.8 MPa |
| Solenoid Valve Flow Rate | 360 l/min |
| Solenoid Valve Voltage | 24 V DC |
| Solenoid Valve Material | Die-Cast Aluminium |
| Solenoid Valve Seals Material | NBR |
| Solenoid Valve Protection Class | IP65 |
| Solenoid Valve Ambient Temperature | -5 … 50 °C |
| Solenoid Valve Width | 10 mm |
| Attachment 2 | FESTO 556839 SOLENOID VALVE |
| Solenoid Valve 2 Manufacturer | FESTO |
| Attachment 2 Type | Solenoid Valve |
| Solenoid Valve 2 Model | VMPA1-M1H-NS-PI |
| Solenoid Valve 2 Part No. | 556839 |
| Solenoid Valve 2 Fluid | Compressed Air |
| Solenoid Valve 2 Function | 2x3/2-Way, Open, Monostable |
| Solenoid Valve 2 Design | Piston Gate Valve |
| Solenoid Valve 2 Type of Actuation | Electrically |
| Solenoid Valve 2 Operating Pressure | -0.9 ... 8 bar / -0.09 ... 0.8 MPa |
| Solenoid Valve 2 Pilot Pressure | 3 ... 8 bar / 0.3 ... 0.8 MPa |
| Solenoid Valve 2 Flow Rate | 300 l/min |
| Solenoid Valve 2 Voltage | 24 V DC |
| Solenoid Valve 2 Material | Die-Cast Aluminium |
| Solenoid Valve 2 Seals Material | NBR |
| Solenoid Valve 2 Protection Class | IP65 |
| Solenoid Valve 2 Ambient Temperature | -5 … 50 °C |
| Solenoid Valve 2 Width | 10 mm |
| Attachment 3 | FESTO 556838 SOLENOID VALVE |
| Solenoid Valve 3 Manufacturer | FESTO |
| Attachment 3 Type | Solenoid Valve |
| Solenoid Valve 3 Model | VMPA1-M1H-KS-PI |
| Solenoid Valve 3 Part No. | 556838 |
| Solenoid Valve 3 Fluid | Compressed Air |
| Solenoid Valve 3 Function | 2x3/2-Way, Monostable, Closed |
| Solenoid Valve 3 Design | Piston Gate Valve |
| Solenoid Valve 3 Type of Actuation | Electrically |
| Solenoid Valve 3 Operating Pressure | -0.9 ... 8 bar / -0.09 ... 0.8 MPa |
| Solenoid Valve 3 Pilot Pressure | 3 ... 8 bar / 0.3 ... 0.8 MPa |
| Solenoid Valve 3 Flow Rate | 230 l/min |
| Solenoid Valve 3 Voltage | 24 V DC |
| Solenoid Valve 3 Material | Die-Cast Aluminium |
| Solenoid Valve 3 Seals Material | NBR |
| Solenoid Valve 3 Protection Class | IP65 |
| Solenoid Valve 3 Ambient Temperature | -5 … 50 °C |
| Solenoid Valve 3 Width | 10 mm |

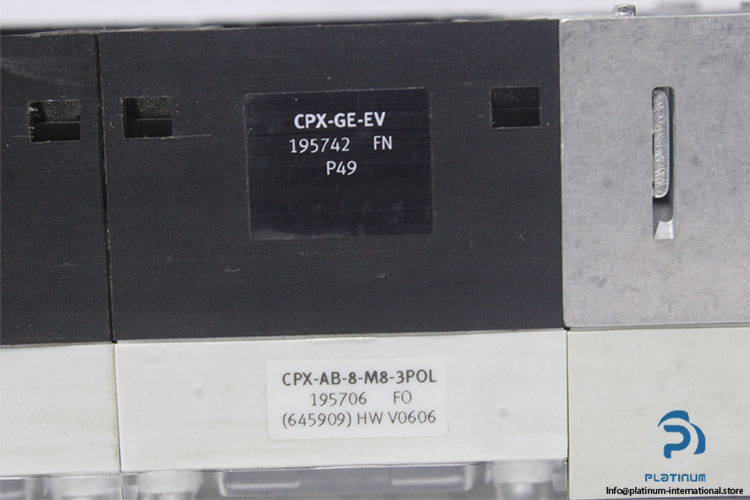

| Attachment 4 | FESTO 195742 INTERLINKING BLOCK |
| Interlinking Block 1 Manufacturer | FESTO |
| Attachment 4 Type | Interlinking Block |
| Interlinking Block 1 Model | CPX-GE-EV |
| Interlinking Block 1 Part No. | 195742 |
| Interlinking Block 1 Mounting Type | Tie Rod |
| Interlinking Block 1 Material | PA-Reinforced |
| Attachment 5 | FESTO 541244 INTERLINKING BLOCK |
| Interlinking Block 2 Manufacturer | FESTO |
| Attachment 5 Type | Interlinking Block |
| Interlinking Block 2 Model | CPX-AB-8-M8-3POL |
| Interlinking Block 2 Part No. | 541244 |
| Interlinking Block 2 Electrical Connection | M8 |
| Interlinking Block 2 Protection Class | IP65/IP67 |
| Interlinking Block 2 Material | PC |
| Attachment 6 | FESTO 195706 INTERLINKING BLOCK |
| Interlinking Block 3 Manufacturer | FESTO |
| Attachment 6 Type | Interlinking Block |
| Interlinking Block 3 Model | CPX-GE-EV-S-7/8-5POL |
| Interlinking Block 3 Part No. | 195706 |
| Interlinking Block 3 Mounting Type | Tie Rod |
| Interlinking Block 3 Electrical Connection | 5-Pin 7/8'' Round Plug Connector |
| Interlinking Block 3 Power Supply Max. | 8 A |
| Interlinking Block 3 Material | PA-Reinforced |
| Attachment 7 | FESTO 533361 ELECTRONICS MODULE |
| Electronics Module Manufacturer | FESTO |
| Attachment 7 Type | Electronics Module |
| Electronics Module Model | VMPA1-FB-EMG-8 |
| Electronics Module Part No. | 533361 |
| Electronics Module Diagnosis | Undervoltage of Valves |
| Electronics Module Valve Positions No. Max. | 4 |
| Electronics Module Valve Coils No. Max. | 8 |
| Electronics Module Internal Current Consumption, Load Voltage | 23 mA |
| Electronics Module Internal Current Consumption, Operating Voltage | 8 mA |
| Electronics Module Material | POM |

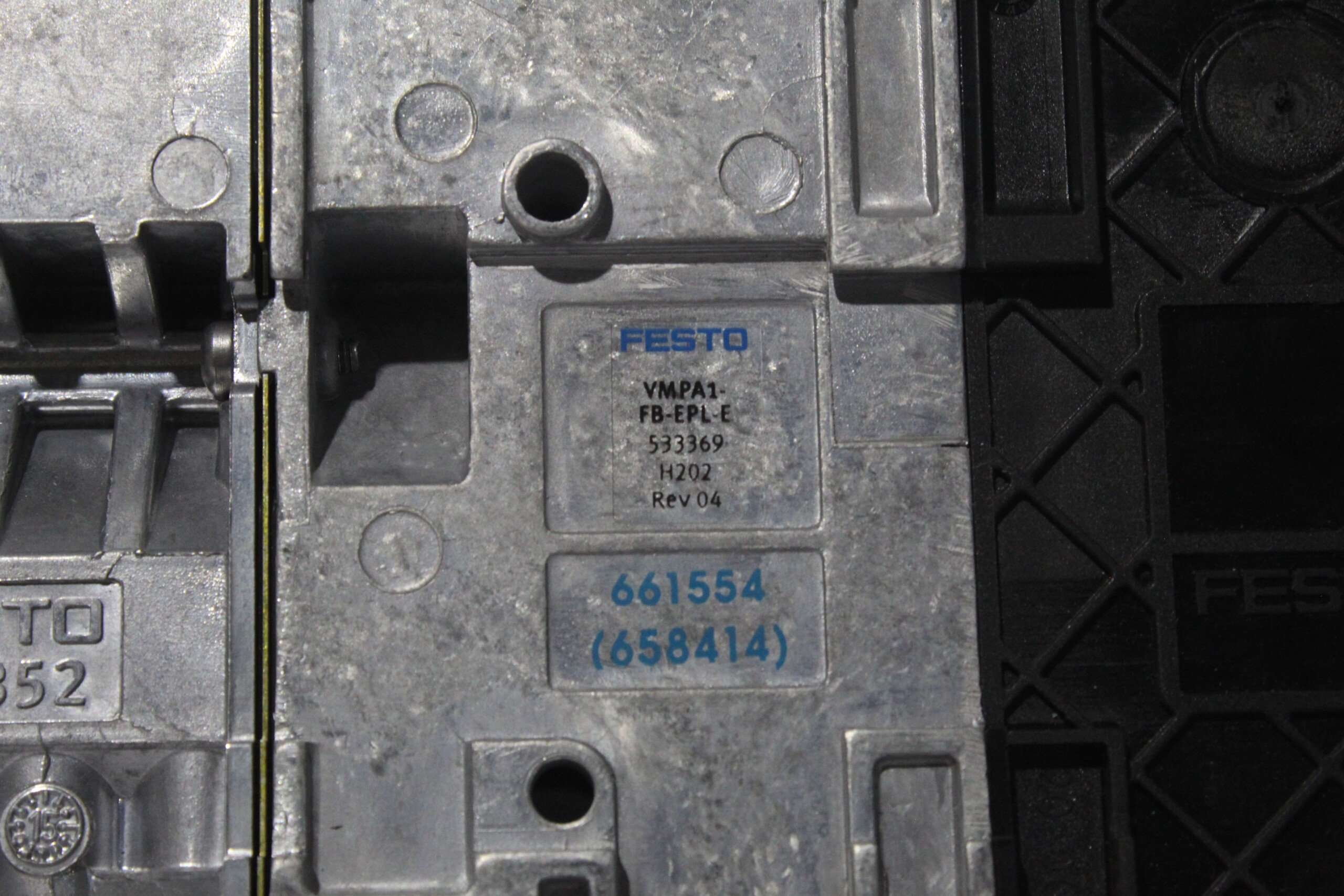

| Attachment 8 | FESTO 533369 END PLATE |
| End Plate 1 Manufacturer | FESTO |
| Attachment 8 Type | End Plate |
| End Plate 1 Model | VMPA-FB-EPL-E |
| End Plate 1 Part No. | 533369 |
| End Plate 1 Pilot Air Ports 12/14 | M7 |
| End Plate 1 Pneumatic Connection, Port 1 | G1/4 |

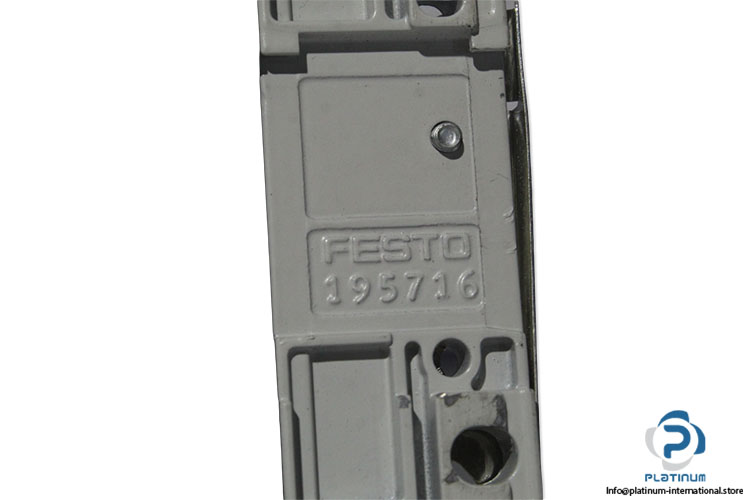

| Attachment 9 | FESTO 195716 END PLATE |
| End Plate 2 Manufacturer | FESTO |
| Attachment 9 Type | End Plate |
| End Plate 2 Model | CPX-EPL-EV |
| End Plate 2 Part No. | 195716 |
| End Plate 2 Mounting Type | Tie Rod |
| End Plate 2 Material | Painted |

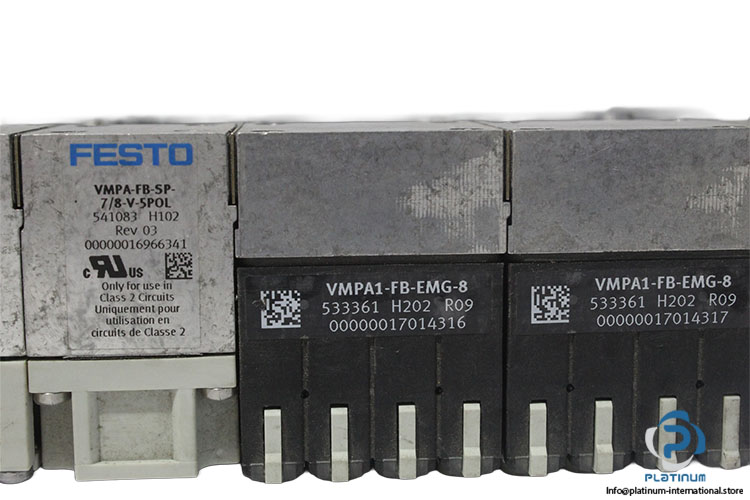

| Attachment 10 | FESTO 541083 SUPPLY PLATE |
| Supply Plate 1 Manufacturer | FESTO |
| Attachment 10 Type | Supply Plate |
| Supply Plate 1 Model | VMPA-FB-SP-7/8-V-5POL |
| Supply Plate 1 Part No. | 541083 |
| Supply Plate 1 Nominal Operating Voltage | 24 V DC |
| Supply Plate 1 Electrical Connection | 5-Pin 7/8'' Round Plug Connector |
| Supply Plate 1 Material | Die-Cast Aluminium |
| Supply Plate 1 Protection Class | IP65 |
| Supply Plate 1 Ambient Temperature | -5 … 50 °C |

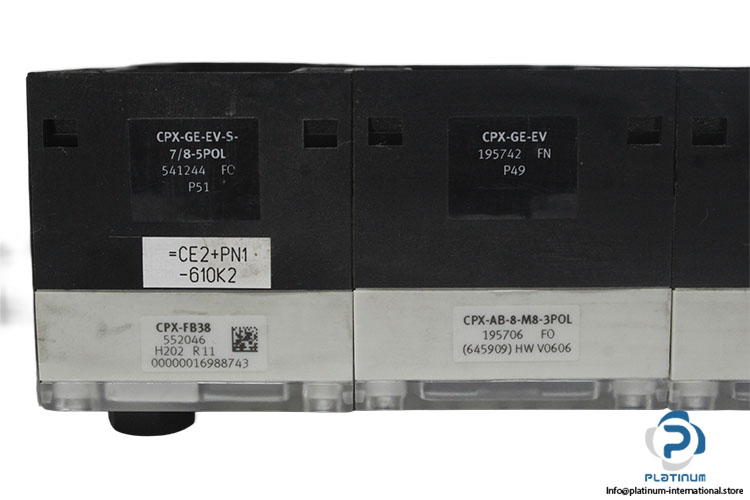

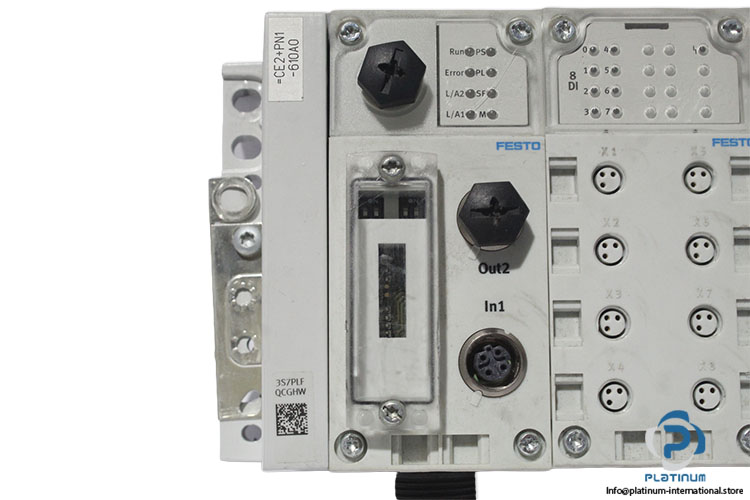

| Attachment 11 | FESTO 552046 BUS NODE |
| Bus Node Manufacturer | FESTO |
| Attachment 11 Type | Bus Node |
| Bus Node Model | CPX-FB38 |
| Bus Node Part No. | 552046 |
| Bus Node Fluid | Air |
| Bus Node Protocol | EtherCAT |
| Bus Node Configuration Support | XML File |
| Bus Node Baud Rate | 100 Mbit/s |
| Bus Node Address Volume for Inputs/Outputs Max. | 64 Byte |
| Bus Node Nominal Operating Voltage | 24 V DC |
| Bus Node Power Consumption | 100 mA |
| Bus Node Electrical Connection | 2x Socket, M12x1, 4-Pin, D-Coded |
| Bus Node Material | PA-Reinforced |
| Bus Node Protection Class | IP65/IP67 |
| Bus Node Ambient Temperature | 0 … 50 °C |
| Bus Node Dimensions | 50 x 107 x 50 mm |
| Attachment 12 | FESTO 533352 SUB-BASE |
| Sub-Base Manufacturer | FESTO |
| Attachment 12 Type | Sub-Base |
| Sub-Base Model | VMPA1-FB-AP-4-1 |
| Sub-Base Part No. | 533352 |
| Sub-Base Valve Positions No. Max. | 4 |
| Sub-Base Operating Pressure | -0.9 ... 10 bar |
| Sub-Base Pilot Pressure | 3 ... 8 bar |
| Sub-Base Pneumatic Connection Ports 2/4 | M7 |
| Sub-Base Material | Die-Cast Aluminium |
| Sub-Base Ambient Temperature | -5 … 50 °C |
| Attachment 13 | FESTO 533369 END PLATE |
| SKU | 1102242 |
| Weight | 3,82 |
You May Also Need
Meer van FESTO
Gerelateerde producten
GebruiktBeschikbaar op aanvraag
BURKERT

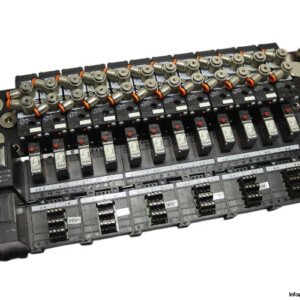

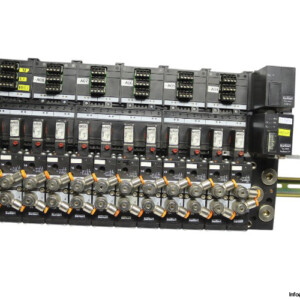

Burkert Mken 8640 Modular Valve 12 Valves
SKU: 1054974
Beschikbaar op aanvraag
Beschikbaar op aanvraag
GebruiktBeschikbaar op aanvraag
BURKERT

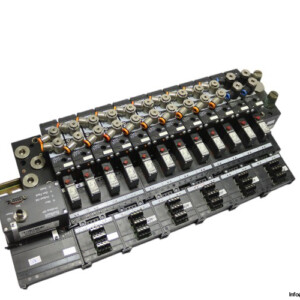

Burkert Mken 8640 Modular Valve 12 Valves
