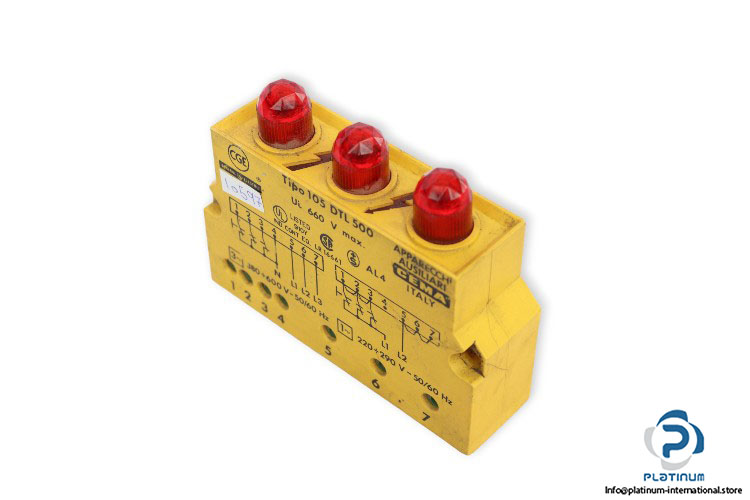

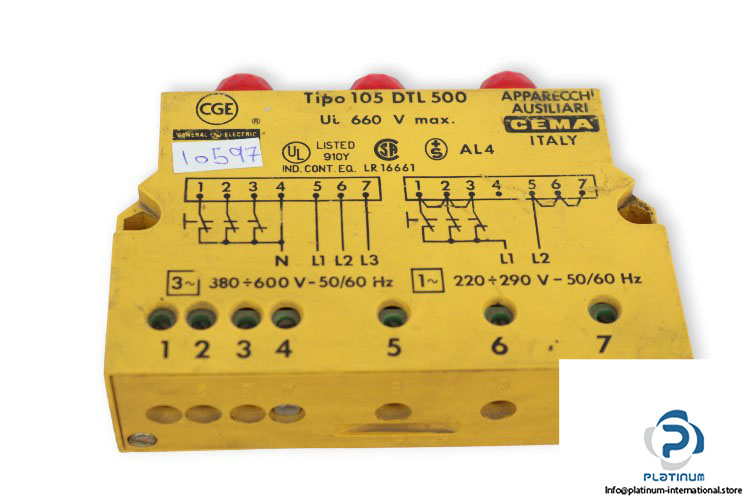

General Electric 105 DTL 500 Power Supply Signaling Device
VOEDINGS-SIGNALERINGAPPARAAT De General Electric 105 DTL 500 is een duurzaam industrieel signaleringsapparaat dat zowel driefasige als enkelfasige systemen ondersteunt en betrouwbare bewaking biedt met een brede spanningscompatibiliteit en IP 20 bescherming.
GENERAL ELECTRIC 105 DTL 500 POWER SUPPLY SIGNALING DEVICE
The General Electric 105 DTL 500 is a robust power supply signaling device from the 105 series, designed for high-reliability performance in industrial environments. With a wide input voltage range for both three-phase and single-phase systems, it provides dependable signaling capabilities for monitoring and control applications. Built with durable construction and safety compliance, this unit ensures secure connections and optimal performance in demanding operating conditions.
Manufacturer: General Electric
Type: Power Supply Signaling Device
Model: 105 DTL 500
Series: 105
| Supply Voltage | 380 / 600 V AC / 3-phase, 220 / 290 V AC / 1-phase |
| Frequency | 50/60 Hz |
| Rated Insulation Voltage | 660 V max |
| Impulse Withstand Voltage | 4 kV |
| Electrical Input Current | 2 mA max |
| Connections | Terminal strip with numbered terminals, accessible from outside, protected against accidental contacts according to DIN 57106 and IP 20 according to IEC 529 |
| Clamping Capacity | Maximum one flexible conductor 12 AWG |
| Operating Temperature Range | -25 / +70°C |
| Degree of Protection | IP 20 |
| Dimensions | 110 x 87 x 30 mm |
