Gemu 423 25D 7 11404A02015 Butterfly Valve

Name: GEMU 423 25D 7 11404A02015 BUTTERFLY VALVE
SKU: 1096547
Availability: LimitedAvailability







Nieuw

Op voorraad4 eenhedenKlaar voor verzending

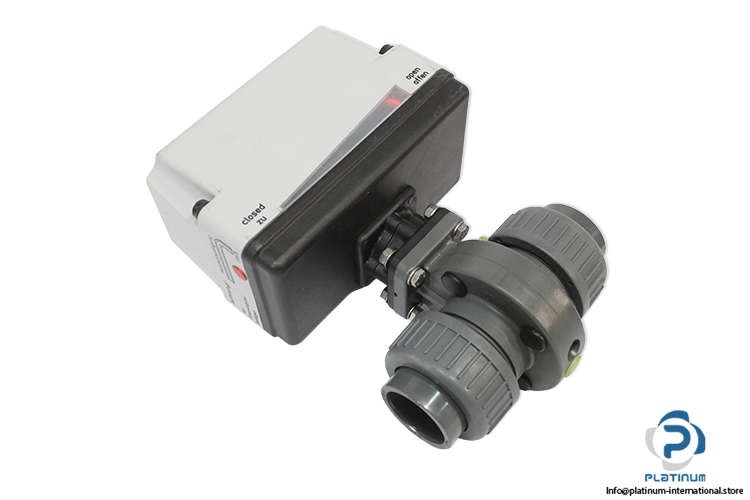

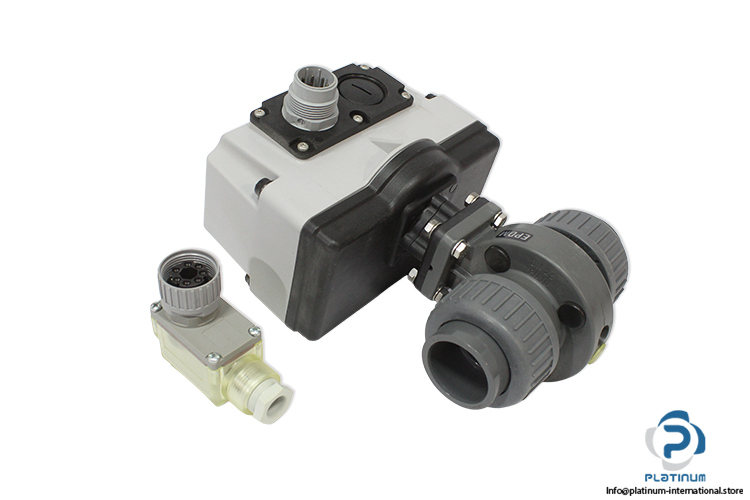

Motorized Butterfly Valve GEMU 423 motorized butterfly valve with On/Off actuator, DN 25 size, PVC-U body, and wide voltage range for reliable industrial flow control.

Fabrikant

GEMU

SKU

1096547

Categorie

Other Mechanical Equipment

Staat

Nieuw

100 250V 423 AC Actuator Butterfly Control Disc DN25 End Epdm FKM flow Gemu Industrial Liner Motorized Off On PVC Pvdf U Union V Valve

Enorme Voorraad

Wereldwijde verzending

Deskundige Ondersteuning

Kwaliteit Gegarandeerd

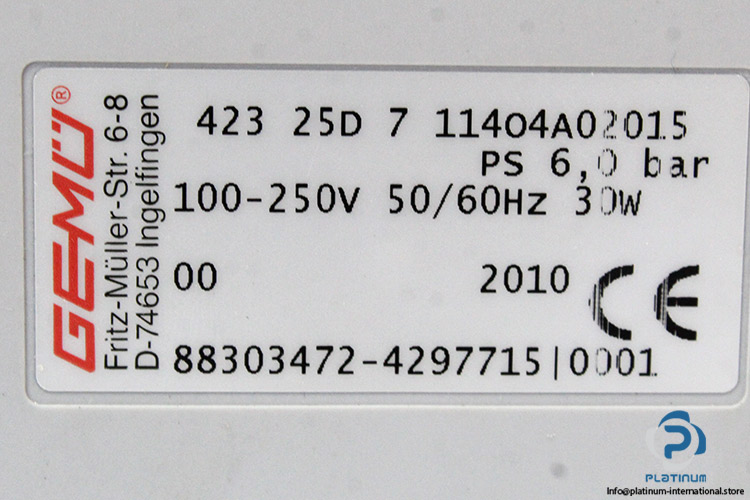

Part No.	88303472-4297715\|0001
Operating pressure	0 to 6 bar
Nominal sizes	DN 25
Control module	On/Off actuator
Body configuration	2/2-way body
Connection type	Union end with DIN insert (socket)
Connection types	Union end
Connection standards	BS l DIN
Housing materials	PVC-U, grey
Liner materials	EPDM l FKM
Disc materials	PVDF
Supply voltage	100 - 250 V AC, 50/60 Hz
Operating time 90°	4 to 100 s
Conformities	CSA l EAC
Media temperature	0 to 60 °C
Ambient temperature	-10 to 60 °C
Condition	New
SKU	1096547
Weight	2
