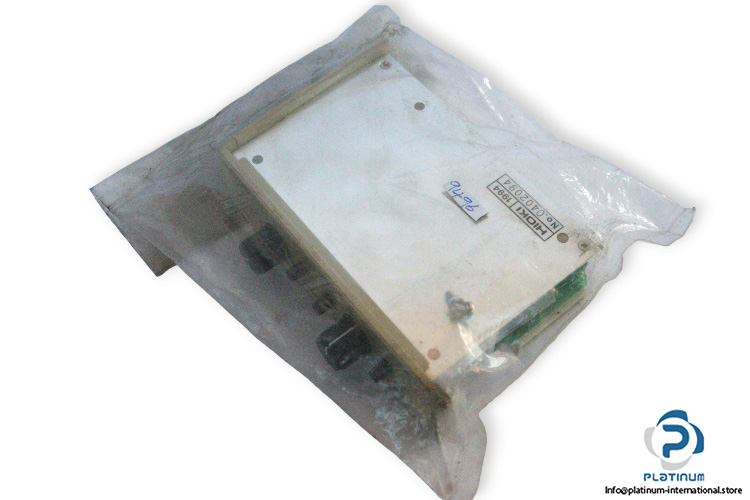

Hioki 8935 Temperature Unit

Manufacturer: Hioki
Type: Temperature Unit
Model: 8935

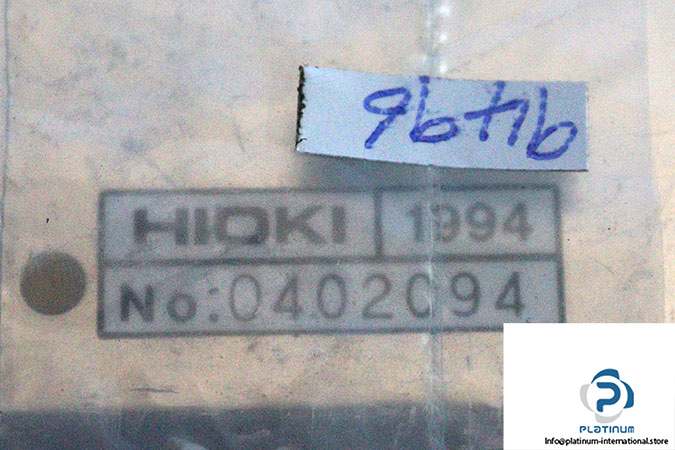

Part No.: 0402094

Permissible Input Voltage: 100 V DC/AC

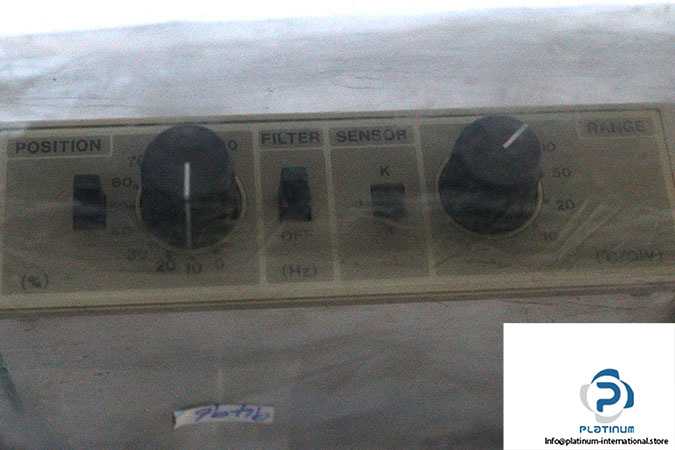

Setting Range: 10 … 100 °C/DIV
Measurement input range:
K(CA): 50 … 1100 °C
J(IC): 50 … 800 °C
T(CC): 50 … 400 °C
Input Resistance: 5 MΩ
Response Time: 1 ms / 100 ms (When low pass filter is on)
Max. Sampling Speed: 50 kS/s
Max. Floating Voltage: 250 V AC/DC
Input Terminal: Two Terminal
Operating Temperature: 5 … 40 °C
Dimensions: 34 X 124 X 82 mm
