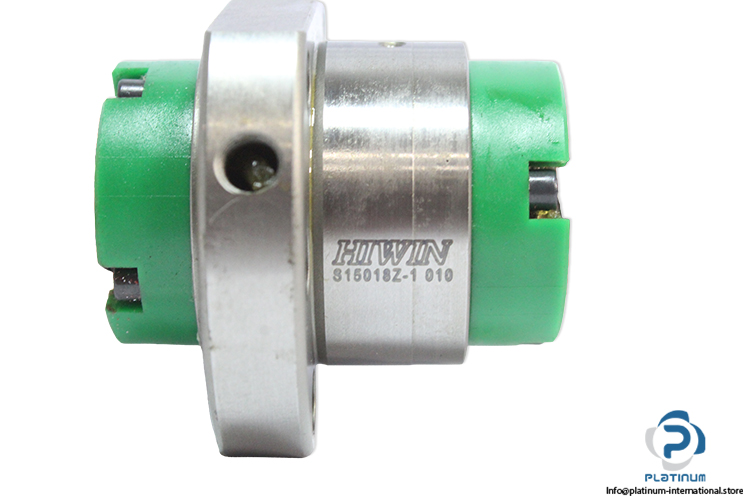

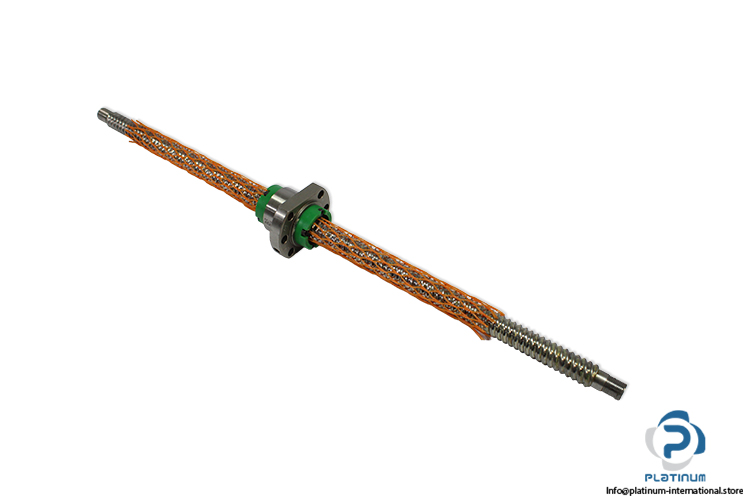

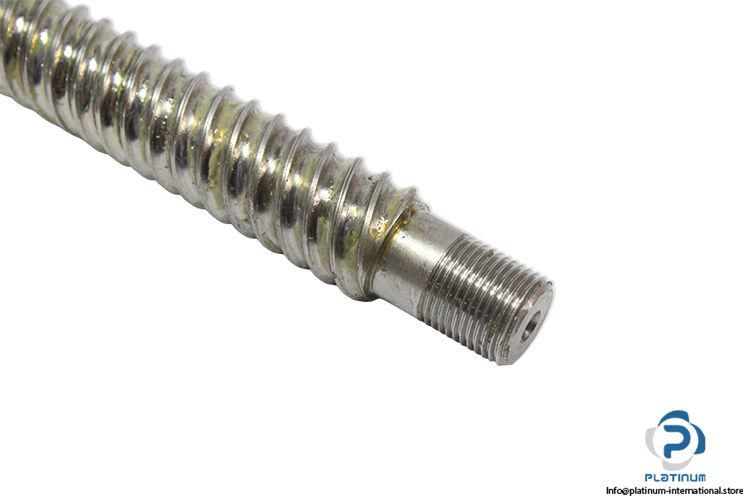

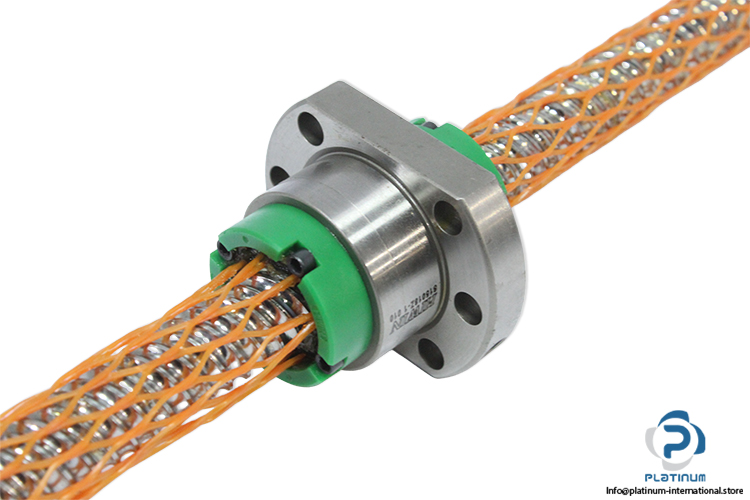

Hiwin S15018Z-1 Ball Screw
Nieuw
Op voorraad1 eenheidKlaar voor verzending
Ball Screw HIWIN precision ball screw right-hand thread, and 16 mm nominal diameter, designed for linear motion, CNC machinery, and industrial automation systems.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Size | 16 X 16 R |
| Nominal Diameter | 16 mm |
| Lead P | 16 |
| Direction of Lead | Right-Hand Thread |
| Nut outer diameter | 36 mm |
| Flange diameter | 58 mm |
| Flange thickness | 10 mm |
| Cutting Flange Width | 44 mm |
| Nut length | 58 mm |
| Threaded length | 445 mm |
| Total screw length | 483 mm |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1100067 |
| Weight | 0,86 |
