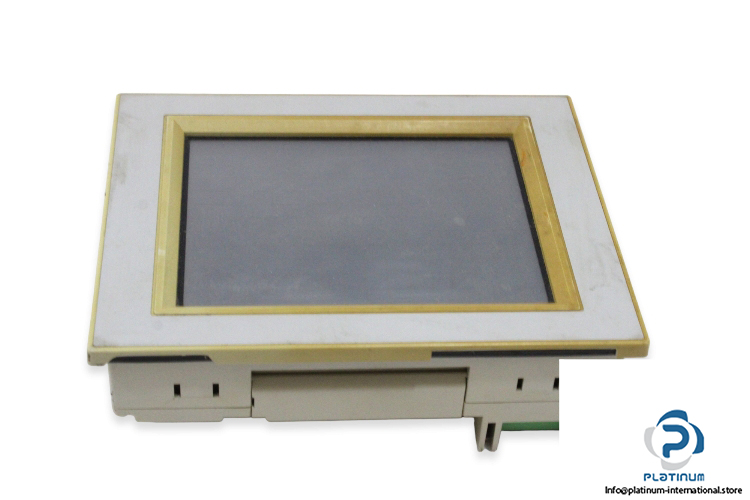

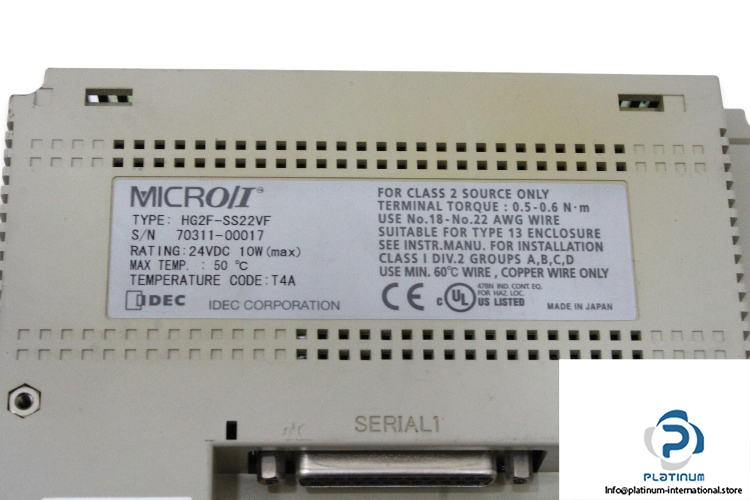

Idec HG2F-SS22VF Operator Interfaces
Manufacturer: Idec
Type: Operator Interfaces
Model: HG2F-SS22VF
Rated Power Voltage: 24 VDC
Power Consumption: 10W maximum
Power Inrush Current: 20A maximum
Insulation Resistance: 50 MΩ minimum between power and FG terminals (500V DC megger)
Resolution: 16 × 12
Display Resolution: 320W × 240H pixels
Display Screen: 5.7” STN Color LCD
Operation Type: Touch Screen
Housing / Bezel Color: Light Gray
Communication: RS232C/485 (422)
Maintenance Port: RS232C
CF Card Slot: Without
Mounting: Panel Mounting
Operating Temperature: 0…50 °C
Protection Class: IP65
Dimensions: 172 x 136 x 56 mm
