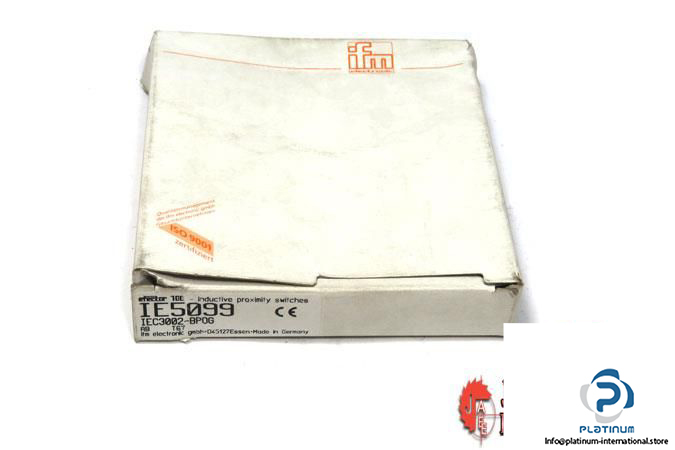

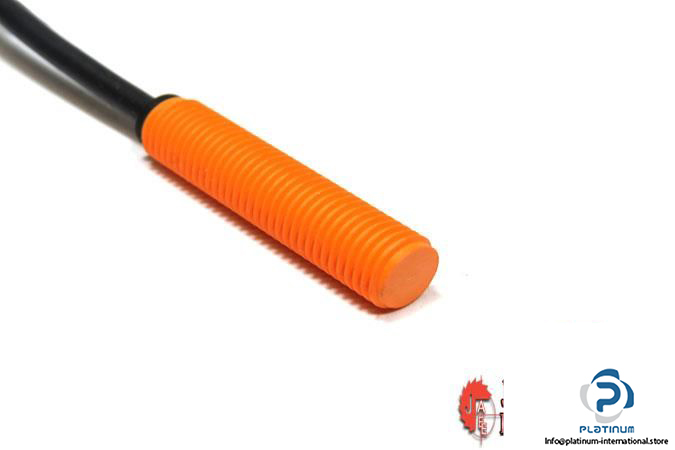

IFM IE5099 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IE5099

MRN: IEC3002-BPOG

Sensing Range: 2 mm

Real Sensing Range: 2 ± 10 % mm

Operating Distance: 0 … 1.6 mm

Operating Voltage: 10 … 36 V DC

Switching output current: 200 mA DC

Current Consumption: 15 mA DC

Switching frequency: 800 Hz DC

Electrical design: PNP

Output Function: Normally open

Connector type, length: PVC Cable, 2 m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 8, 35 mm

Material: PBT

Mounting: Non-flush mountable

Weight: 43.1 g

Condition: New
