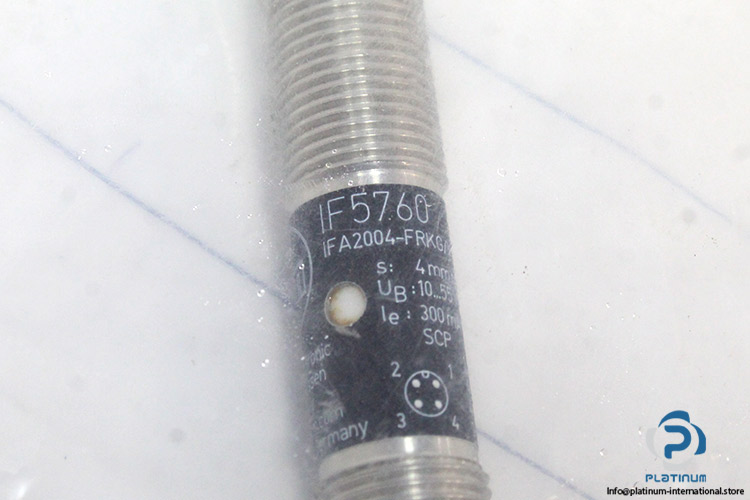

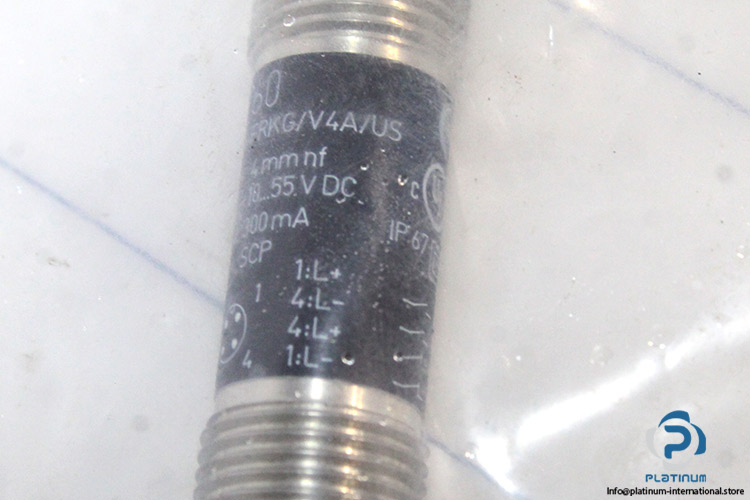

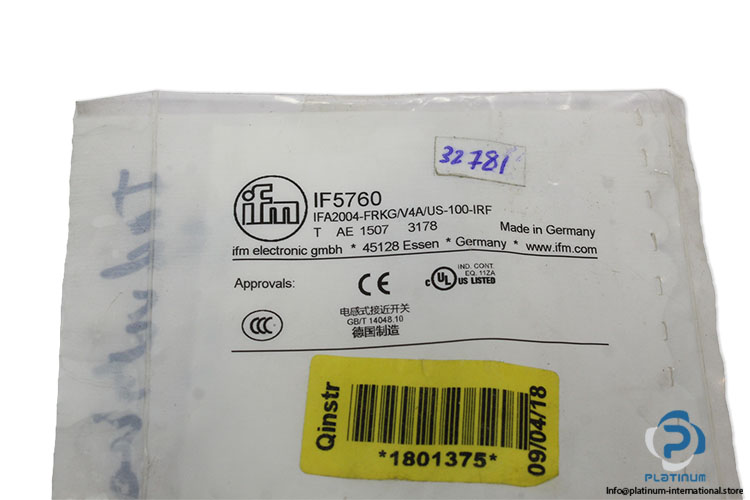

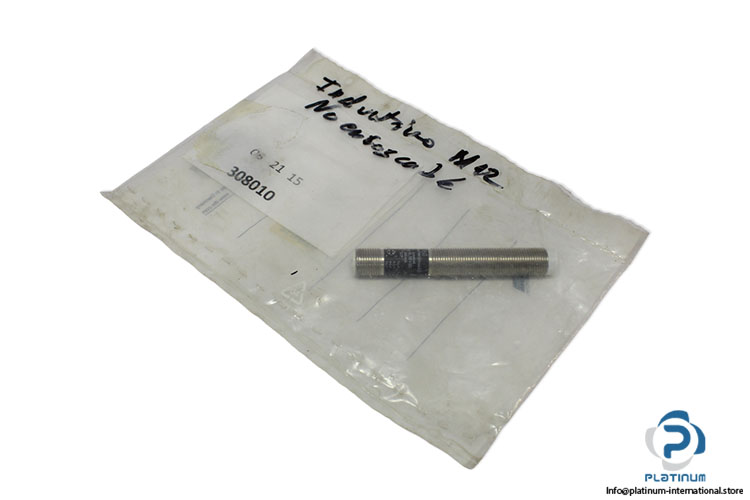

IFM IF5760 Inductive Sensor
Nieuw
Op voorraad1 eenheidKlaar voor verzending
Inductive Sensor IFM IF5760 inductive sensor with 4 mm sensing range, selectable PNP/NPN output, stainless steel M12 threaded housing, and IP67 protection for industrial automation applications.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Part No. | IF5760 |
| MRN | IFA2004-FRKG/V4A/US-100-IRF |
| Ref No | 1801375/308010 |
| Sensing Range | 4 mm |
| Housing | threaded type |
| Dimensions[mm] | M12 x 1 / L = 83 |
| Operating Distance | 0...3.25 mm |
| Operating Voltage | 10...55 DC |
| Max. voltage drop switching output DC[V] | 4.6 |
| Switching Output Current | 300 mA |
| Max. leakage current[mA] | 0.5 |
| Switching frequency DC[Hz] | 1500 |
| Electrical design | PNP/NPN |
| Output Function | Normally Open / normally closed; (selectable) |
| Protection Class | II |
| Correction factor | steel: 1 / stainless steel: 0.7 / aluminium: 0.3 / copper: 0.2 |
| Enclosure Rating | IP67 |
| Ambient temperature[°C] | -25...80 |
| Special feature | Gold-plated contacts |
| Application | Industrial applications / factory automation |
| housing Material | stainless steel (316Ti/1.4571); sensing face: PBT |
| Thread designation | M12 x 1 |

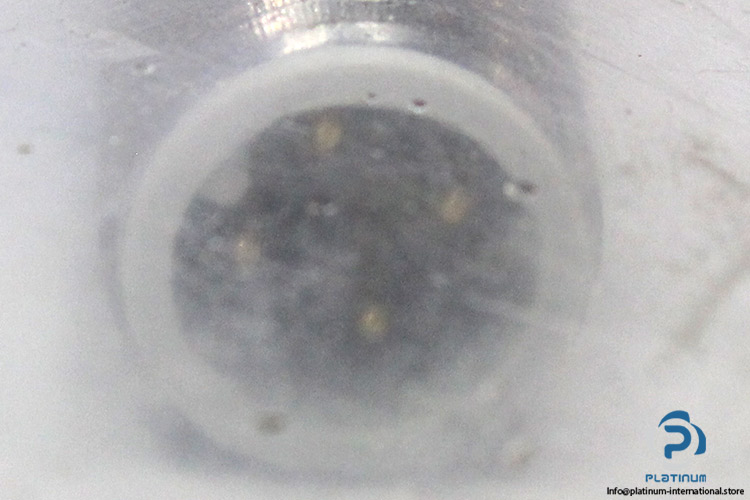

| Connection | 4-Pins |
| Stock key | CON003 |
| Condition | New |
| SKU | 1099256 |
| Weight | 0,03 |
