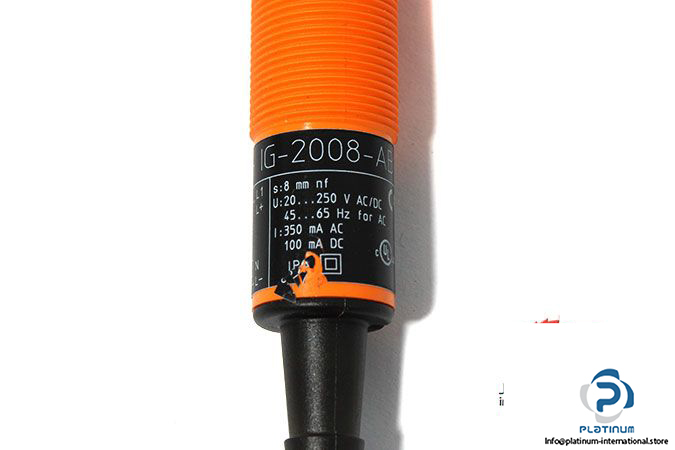

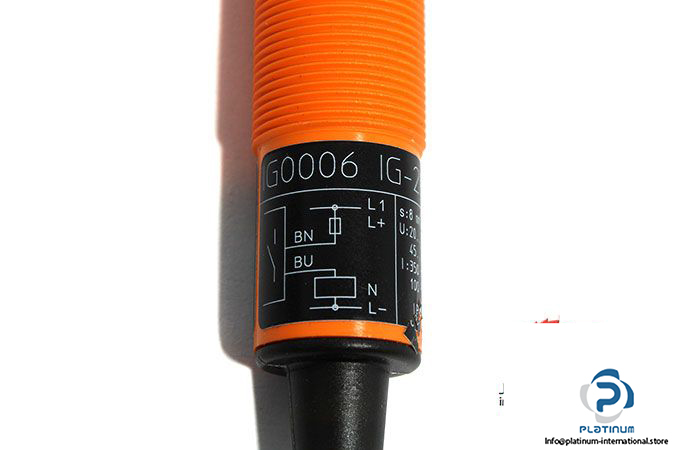

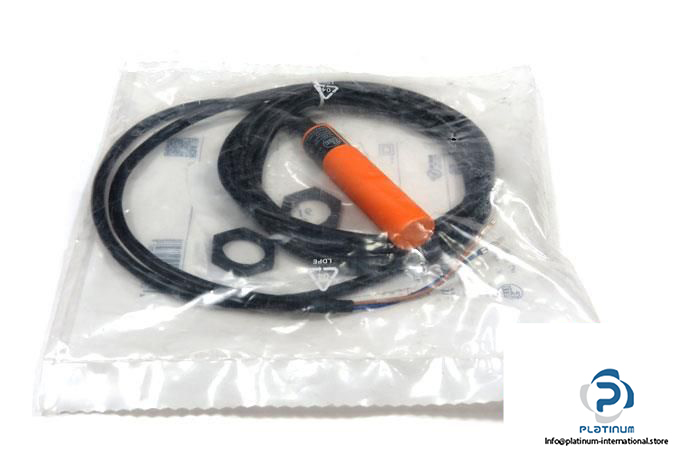

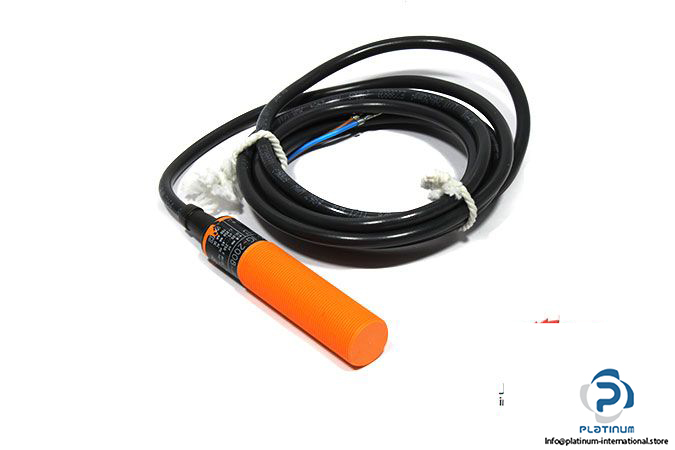

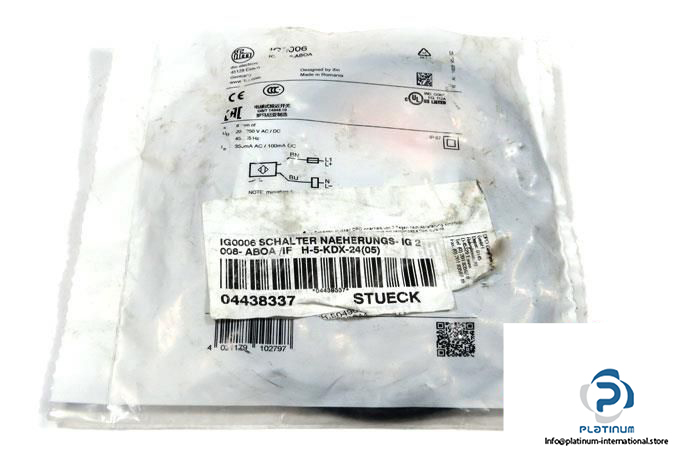

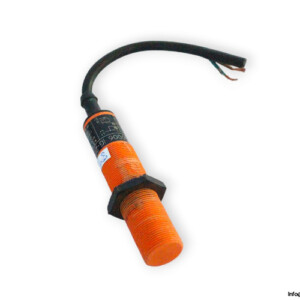

IFM IG0006 Inductive Sensor

Manufacturer: IFM
Type: Inductive Sensor
Model: IG0006
MNR: IG-2008-ABOA

Sensing Range: 8 mm
Real Sensing Range: 8 ± 10% mm
Operating Distance: 0 … 6.5 mm
Operating Voltage: 20 … 250 V AC/DC
Frequency: 45 … 65 Hz
Switching Output: Normally open
Switching Output Current (AC, DC): 350 mA AC,100 mA DC
Connector type:  PVC Cable,2m
Diameter, Housing Length: M18,80 mm
Housing Material: PBT
Mounting: Non-Flush Mountable
Protection Class: II
Enclosure Rating: IP67
Ambient Operating Temperature: -25 … 80°C
