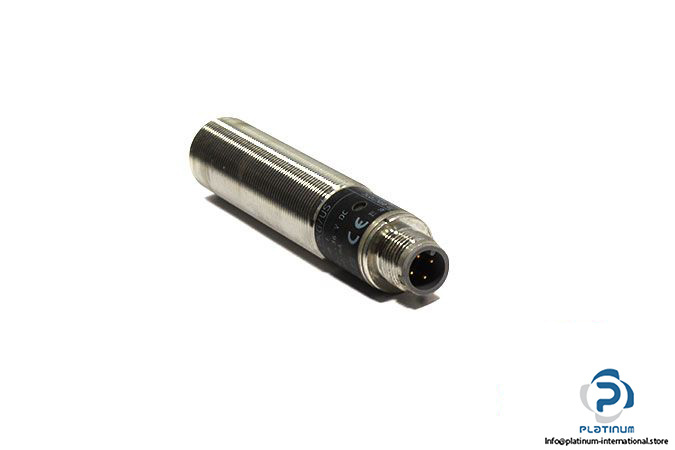

IFM IG5539 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IG5539

MRN: IGA4005-CPKG/US-104

Sensing Range: 5 mm

Operating Distance: 0 … 4.05

Operating Voltage: 10 … 30 V DC

Switching Frequency DC: 400 Hz

Switching Output Current: 200 mA DC

Max. Voltage Drop: 2.5 V

Electrical Design: PNP

Output Function: Complementary

Protection Class: II

Enclosure Rating: IP67

Housing:  Threaded Type

Electrical Connection: M12 4-Pin

Ambient Operating Temperature: -25 … 80 °C

Diameter, Housing Length: 18, 80 mm

Material: Brass White Bronze Coated; Sensing Face: PBT

Mounting: Flush Mountable

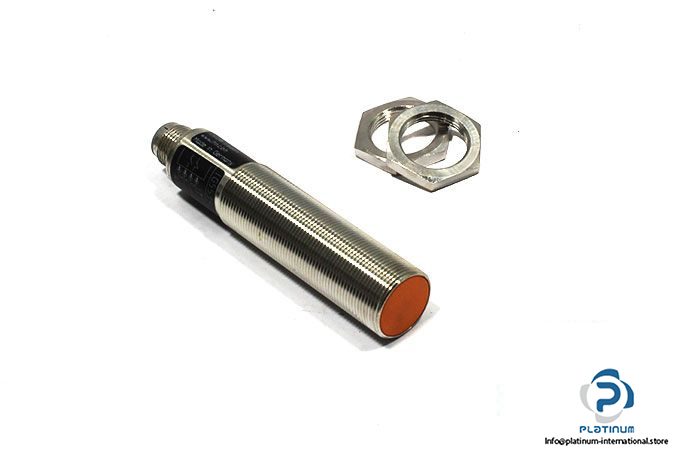

Supplied Accessories: Lock Nuts: 2

Weight: 0.07 kg
