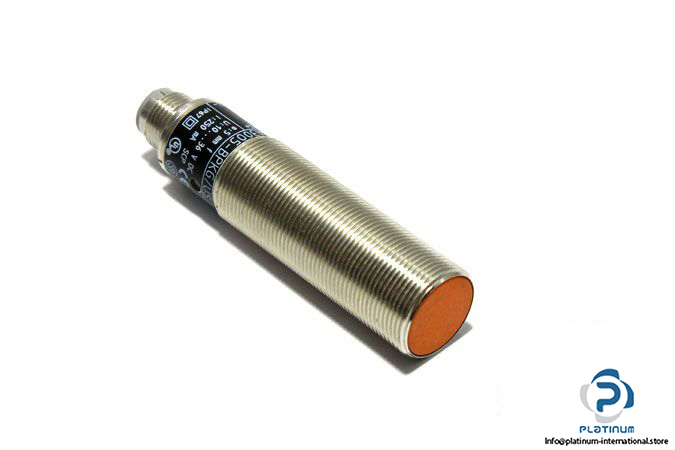

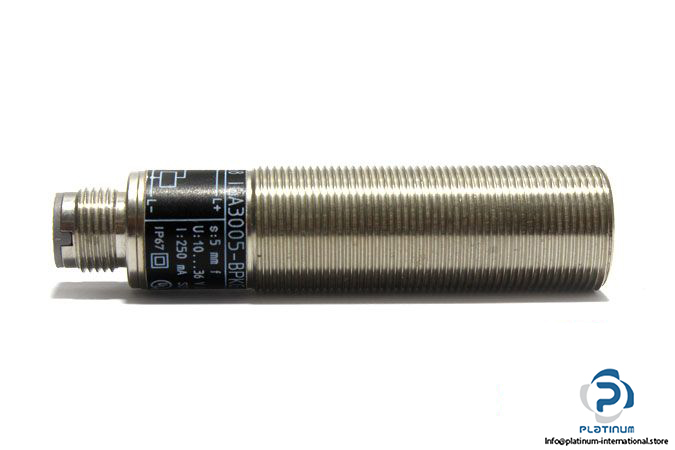

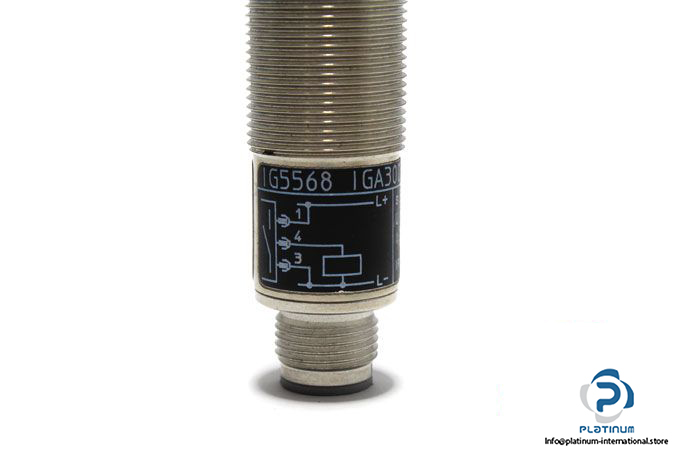

IFM IG5568 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IG5568

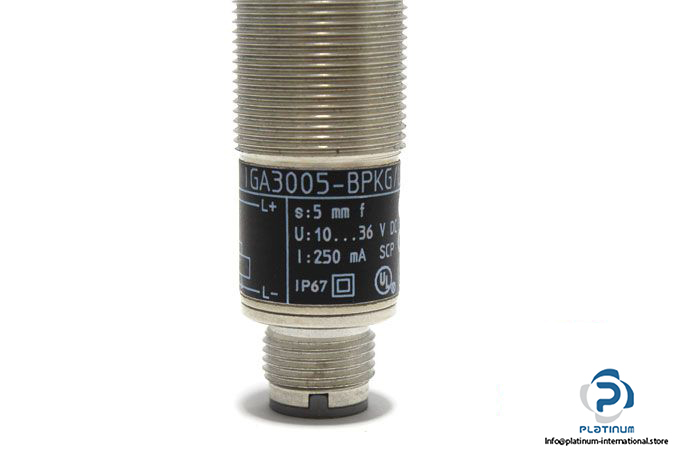

MRN:  IGA3005-BPKG/US

Sensing Range: 5 mm

Real Sensing Range: 5 ± 10 % mm

Operating Distance: 4.05 mm

Operating Voltage: 10 … 30 V DC

Voltage Drop: 2.5 V DC

Switching Output Current: 200 mA DC

Current Consumption: 10 mA

Switching Frequency: 500 Hz DC

Electrical Design: PNP

Output Function: Normally Open

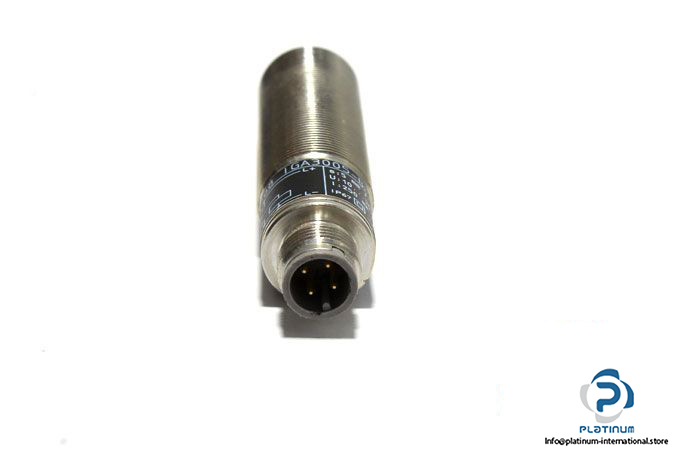

Connector Type: M12 Connector, Gold Plated Contacts

Protection Class: II

Enclosure Rating: IP67

Housing:  Threaded type

Ambient Operating Temperature: -25 … 80 °C

Diameter, Housing Length: 18,75 mm

Material: Brass White Bronze Coated; Sensing Face: PBT Orange

Mounting: Flush Mountable

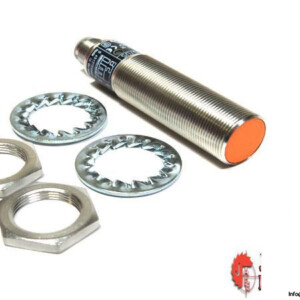

Supplied Accessories: 2 Lock Nuts

Weight: 54.2 g
