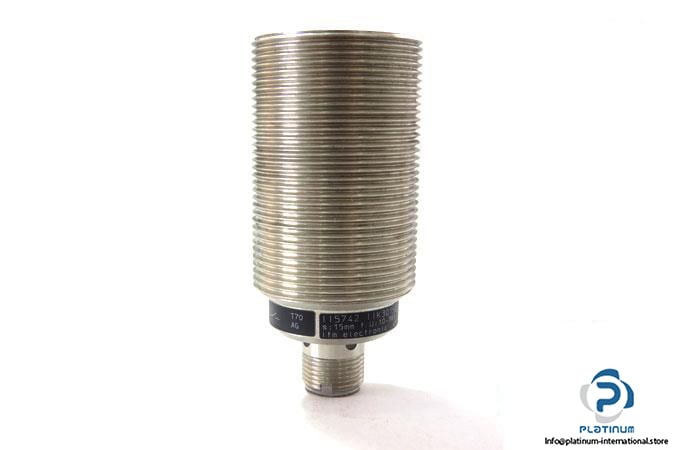

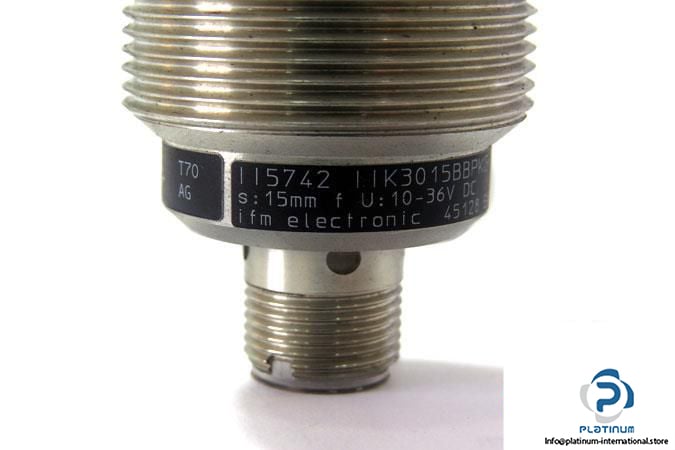

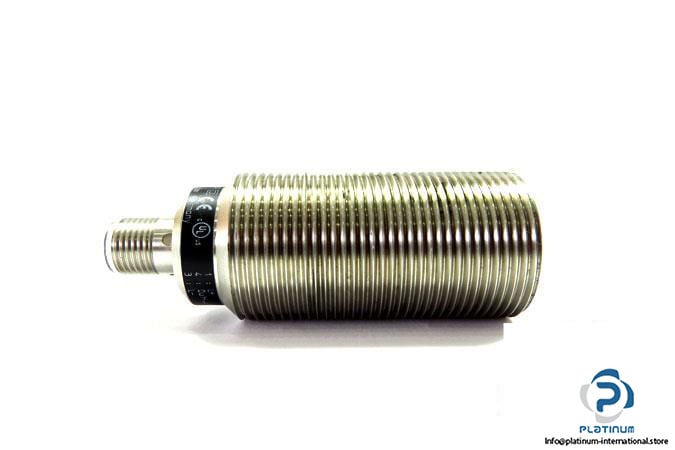

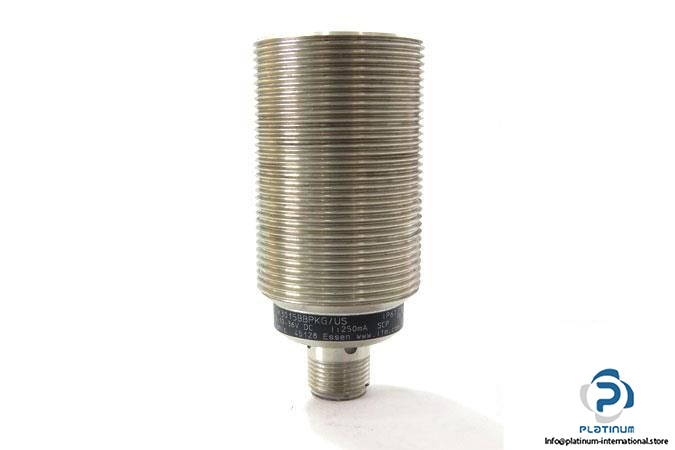

IFM II5742 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: II5742

MRN: IIK3015BBPKG/US

Sensing Range: 15 mm

Real Sensing Range: 15 ± 10% mm

Operating Distance: 0 … 12.1 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Current Consumption: 15 mA

Switching frequency: 250 Hz

Electrical Design: PNP

Output Function: Normally open

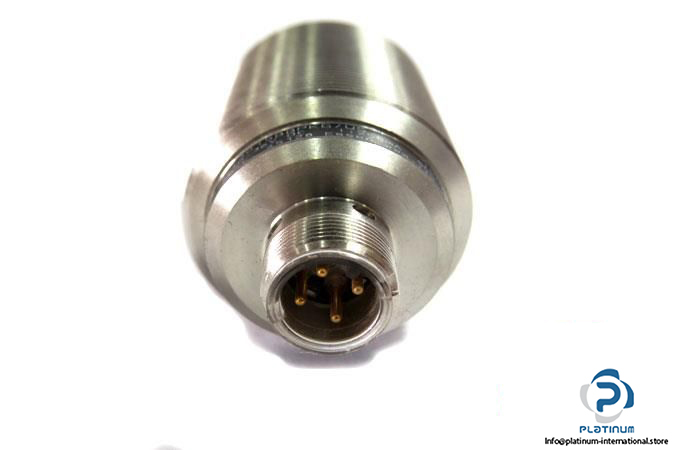

Connector type: M12 Connector, 4 pin, gold plated Contacts

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 70°C

Diameter, Housing length: 30, 72 mm

Material: Brass white bronze coated; PBT uncolored

Mounting: Flush mountable

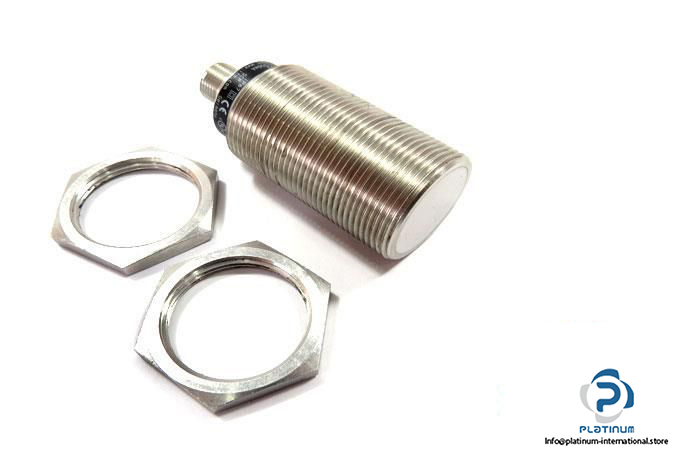

Supplied accessories: 2 lock nuts

Weight: 194 g
