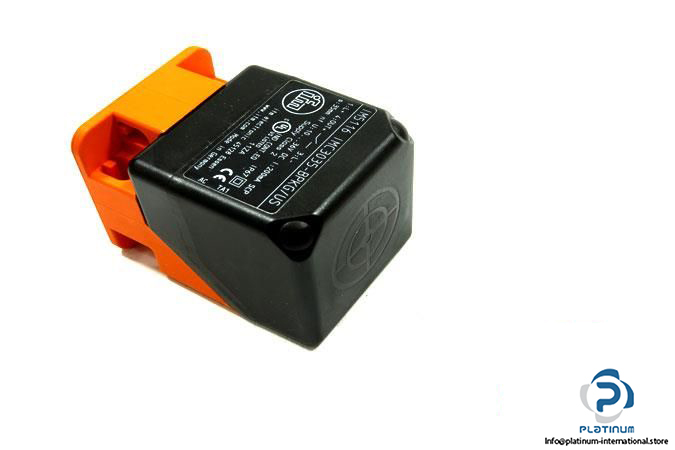

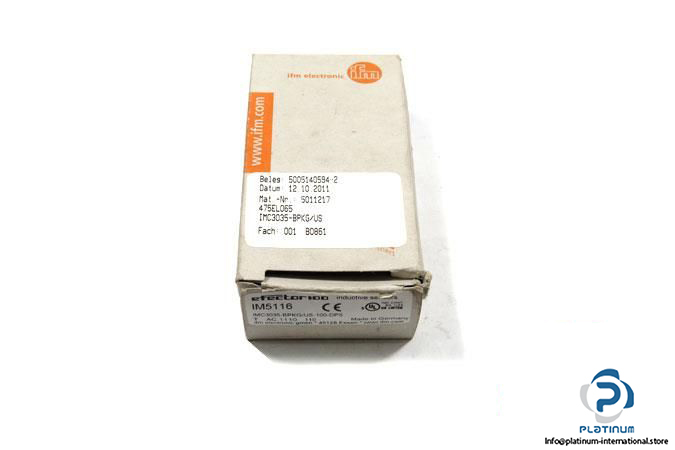

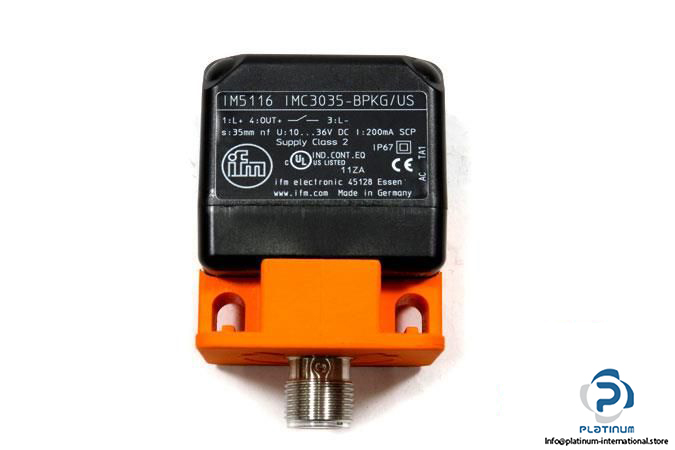

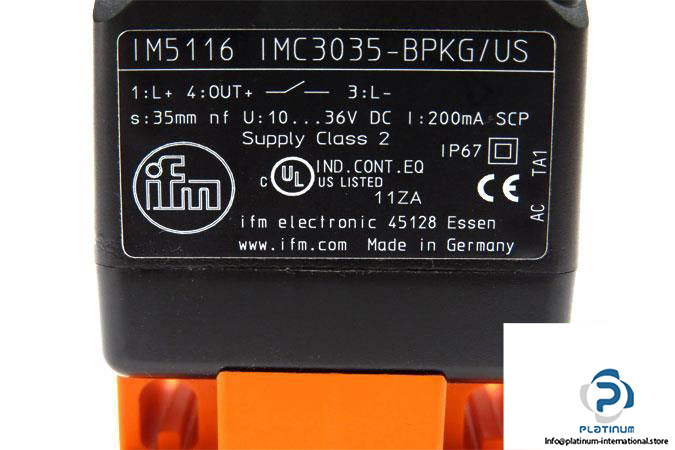

IFM IM5116 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IM5116

MRN: IMC3035-BPKG/US

Sensing Range: 35 mm

Real Sensing Range: 35 ± 10% mm

Operating Distance: 0 … 28.3 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 200 mA DC

Switching frequency: 80 Hz

Electrical Design: PNP

Output Function: Normally open

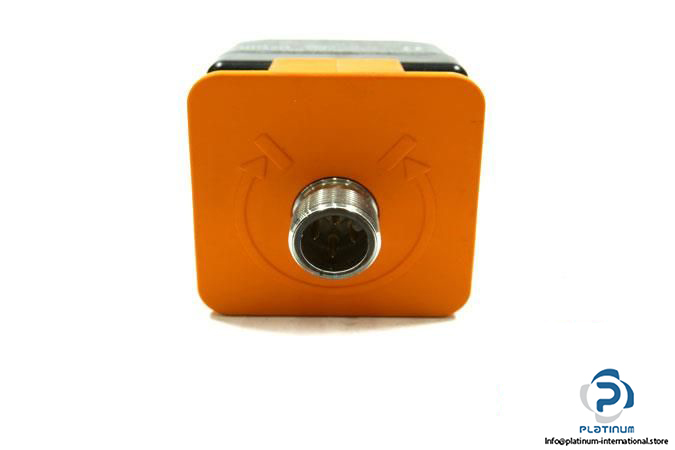

Connector type: M12 Connector

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 70°C

Dimensions: 40 x 40 x 54 mm

Material: PA

Mounting: Non-flush mountable

Weight: 152.5 g

Condition: New
