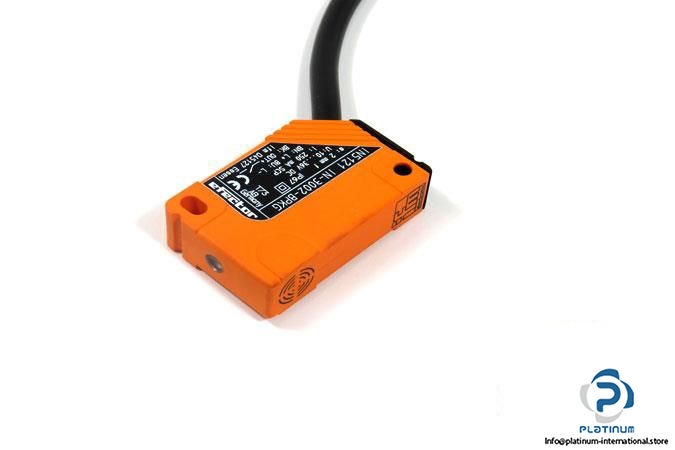

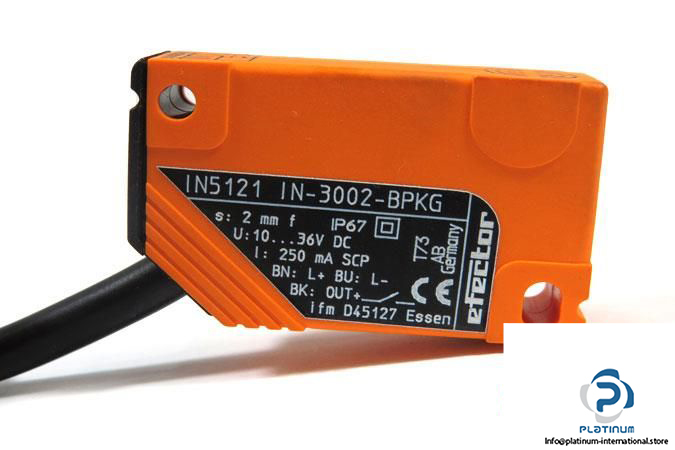

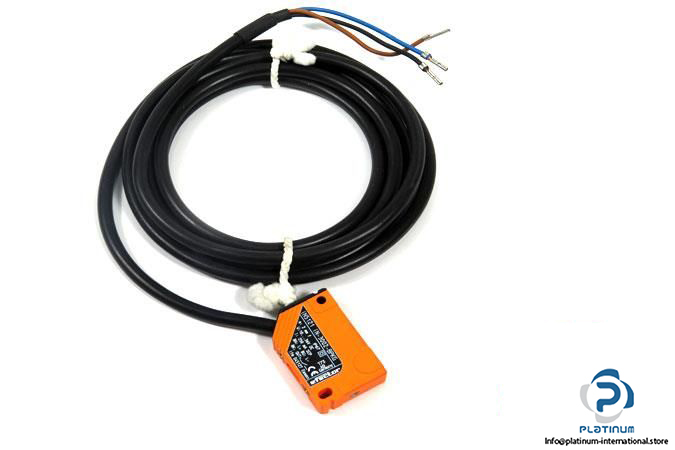

IFM IN5121 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IN5121

MRN: IN-3002-BPKG

Sensing Range: 2 mm

Real Sensing Range: 2 ± 10% mm

Operating Distance: 0 … 1.6 mm

Operating Voltage: 10 … 36 V DC

Switching frequency: 1400 Hz

Switching output current: 250 mA DC

Electrical design: PNP

Output Function: Normally open

Connector type: PVC Cable

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 80°C

Dimensions: 40 x 12 x 26 mm

Material: PBT

Mounting: Flush mountable

Weight: 113.1 g

Condition: New
