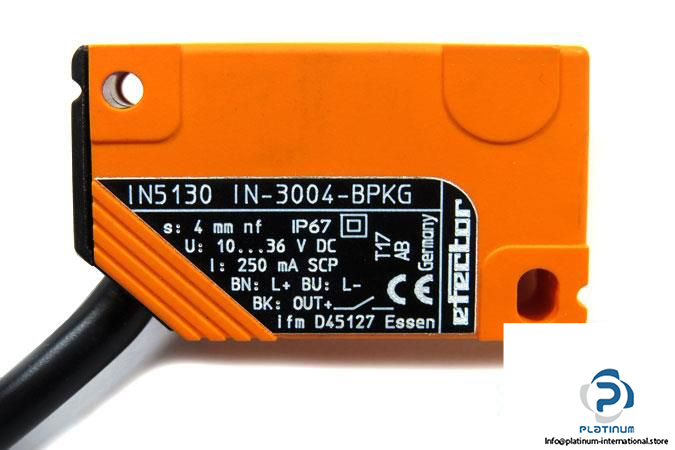

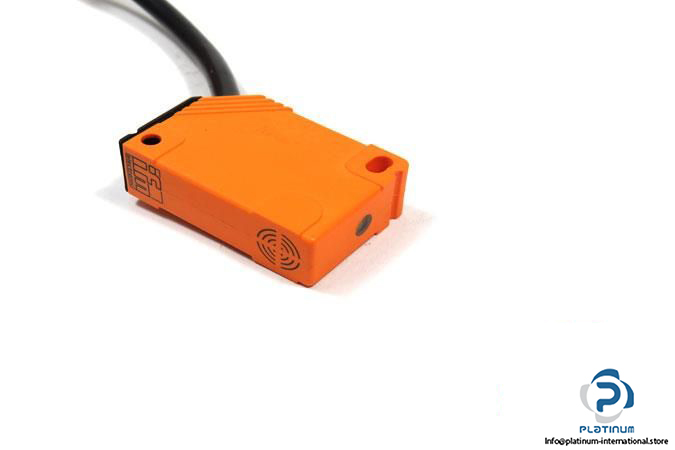

IFM IN5130 Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IN5130

MRN: IN-3004-BPKG

Sensing Range: 4 mm

Real Sensing Range: 4 ± 10% mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Current Consumption: 15 mA

Switching frequency: 1300 Hz

Electrical Design: PNP

Output Function: Normally open

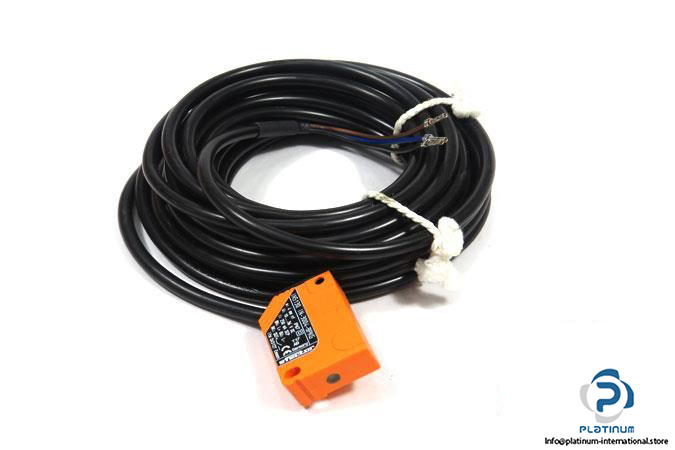

Connector type,length: PVC Cable, 6 m

Protection Class: II

Enclosure rating: IP67

Housing: Rectangular

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 40 X 12 X 26 mm

Material: PBT

Mounting: Non-flush mountable

Weight: 321 g

Condition: New
