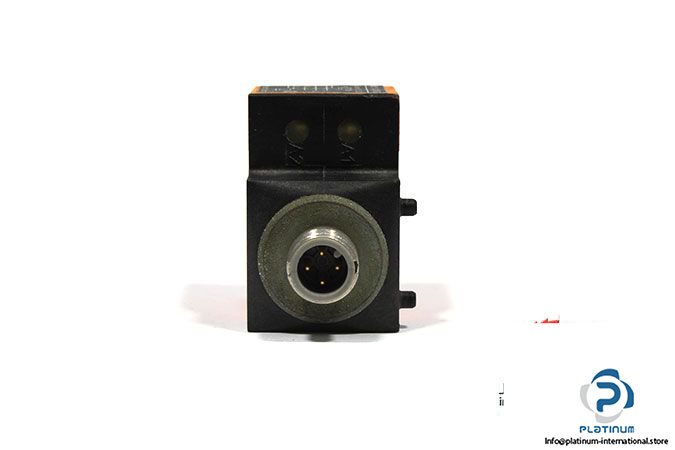

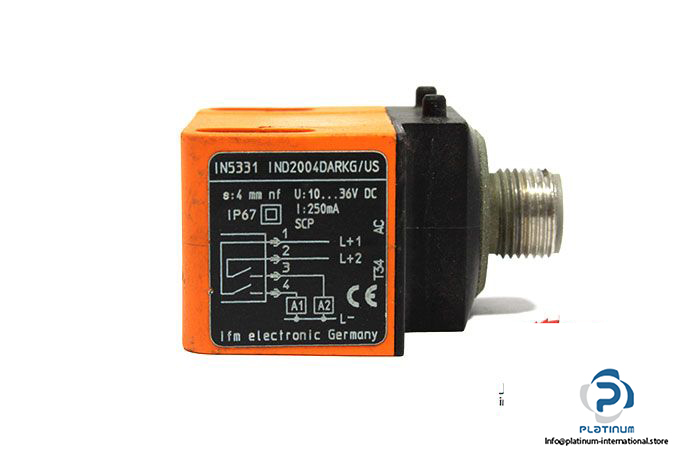

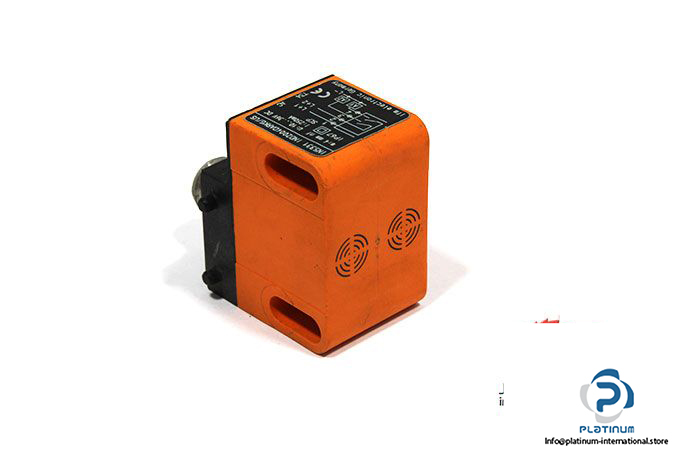

IFM IN5331 Dual Inductive Sensor

Manufacturer: IFM

Type: Dual Inductive Sensor for Valve Actuator

Part No.: IN5331

MRN: IND2004DARKG/US-100-ZRV RT

Sensing Range: 4 mm

Operating Distance: 0 … 3.25 mm

Operating Voltage: 10 … 36 V DC

Switching Frequency DC: 250 Hz

Switching Output Current: 250 mA DC

Minimum Load Current: 4 mA

Electrical Design: PNP/NPN

Output Function: 2 x Normally Open

Protection Class: II

Enclosure Rating: IP67

Housing:  Rectangular

Electrical Connection: M12 4-Pin

Ambient Operating Temperature: -25 … 80 °C

Dimensions: 40 x 26 x 47 mm

Material: Housing: PBT; Cover: PC

Mounting: Non-Flush Mountable

Weight: 0.05 kg
