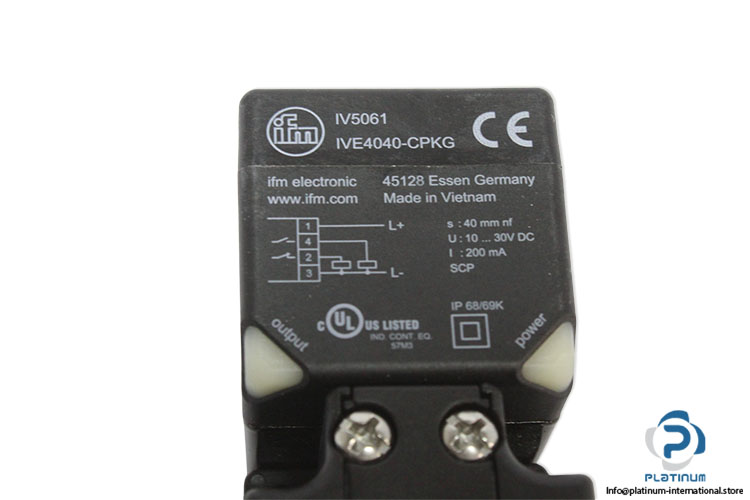

IFM IV5061 Inductive Sensor

Op voorraad1 eenheidKlaar voor verzending

Inductive Sensor IFM IV5061 inductive sensor with PNP complementary output, 40 mm sensing range, IP68/IP69K protection, and rectangular housing for industrial automation and sensing applications.

Fabrikant
IFM
SKU
1099228
Categorie
Sensors
Staat
Nieuw
Delen
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
Part No.IVE4040-CPKG
CodeP AA 2207
Sensing range[mm]40
Housingrectangular
Dimensions[mm]40 x 40 x 118
Operating voltage[V]10...30 DC
Current consumption[mA]20; (24 V)
Protection classII
Reverse polarity protectionyes
Electrical designPNP
Output functioncomplementary
Max. voltage drop switching output DC[V]2
Permanent current rating of switching output DC[mA]200
Switching frequency DC[Hz]180
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Real sensing range Sr[mm]40 ± 10 %
Operating distance[mm]0...32.4
Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.3
Hysteresis[% of Sr]1...10
Switch point drift[% of Sr]-10...10
Ambient temperature[°C]-25...85
ProtectionIP 68; IP 69K
MaterialsPA 6.6; diecast zinc epoxy coated; sensing face: PA 6.6; LED window: PA; screws: stainless steel stainless steel (303/1.4305)
Displayswitching status
Stock KeyCON003
ConditionNew
SKU1099228
Weight0,25
