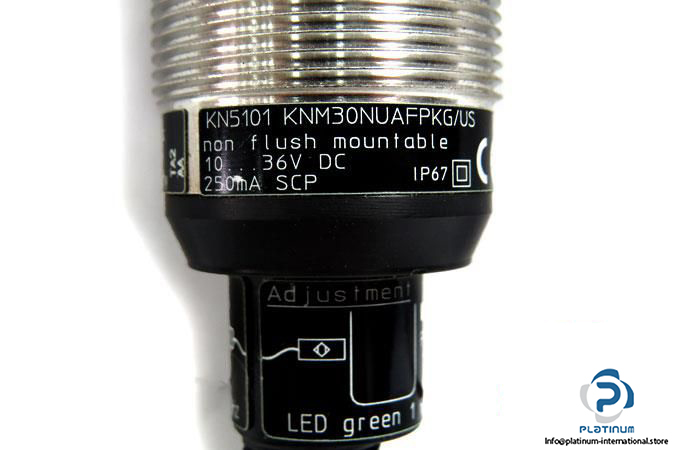

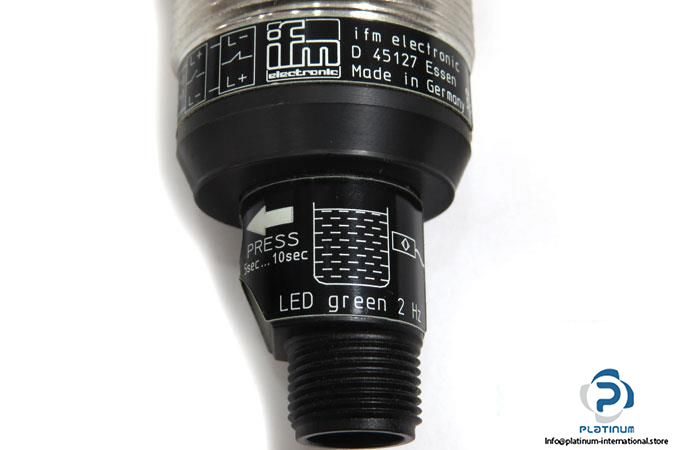

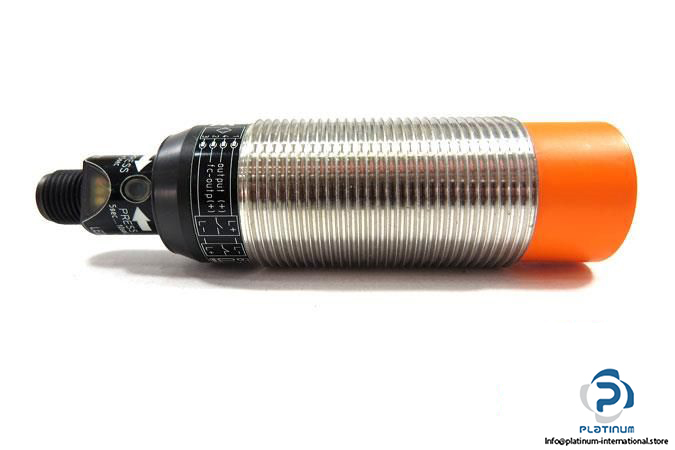

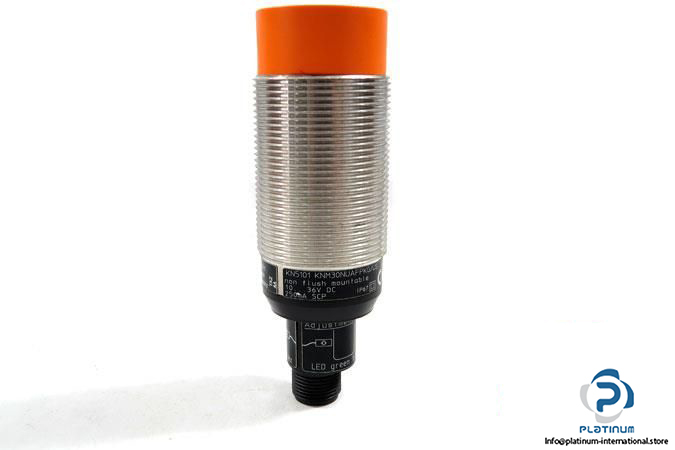

IFM KN5101 Capacitive Sensor

Manufacturer: ifm

Type: CAPACITIVE SENSOR

Part No.: KN5101

MRN: KNM30NUAFPKG/US

Application:

Product designation: Level Sensor

Installation: Detection through non-metallic container walls

Media: Dry bulk material; liquids

Medium temperature: -25 … 80°C

Operating Voltage: 10 … 36 V DC

Current Consumption: 30 mA

Voltage Drop max.: 2.5 V DC

Switching output current: 250 mA DC

Switching frequency: 5 Hz

Electrical Design: PNP

Output Function: Normally open/Normally closed (Selectable)

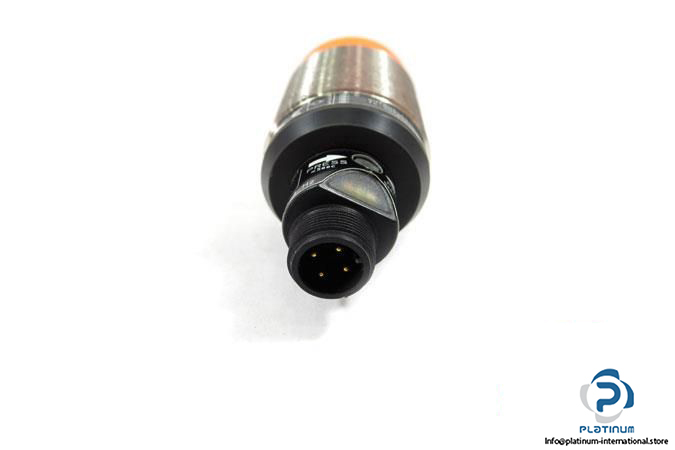

Connector type: M12 Connector, 4 pin, gold plated contacts

Protection Class: II

Enclosure rating: IP67

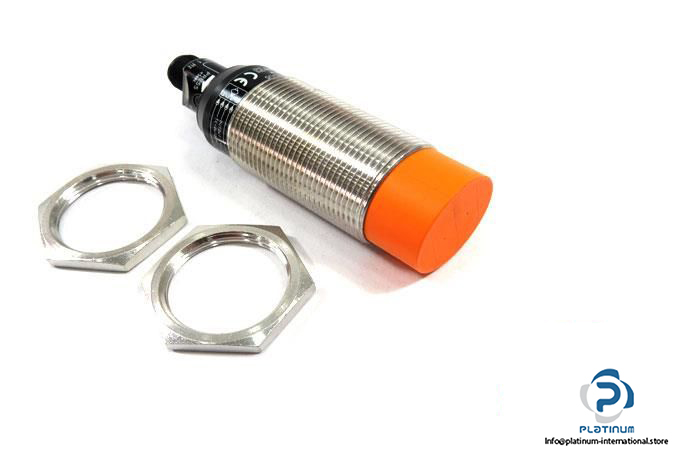

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 30, 100 mm

Material: Brass white bronze coated; PBT; PVC

Mounting: Non-flush mountable

Condition: New
