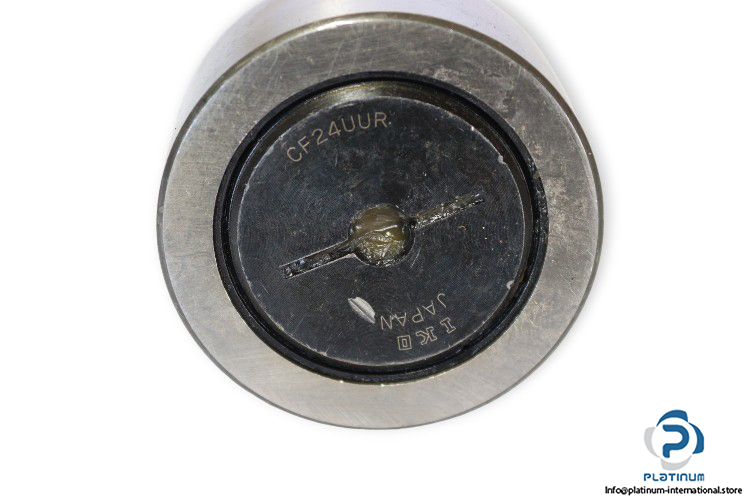

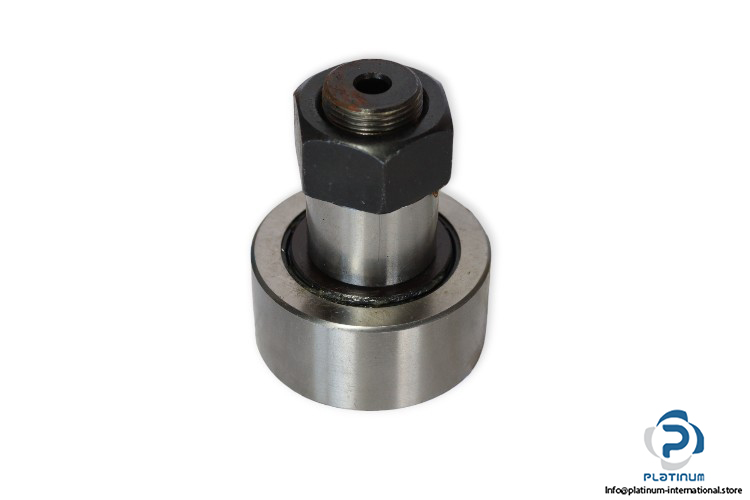

IKO CF24UUR Stud Type Track Roller

Manufacturer: IKO
Type: Standard Type Cam Followers With cage type
Model: CF 24UUR

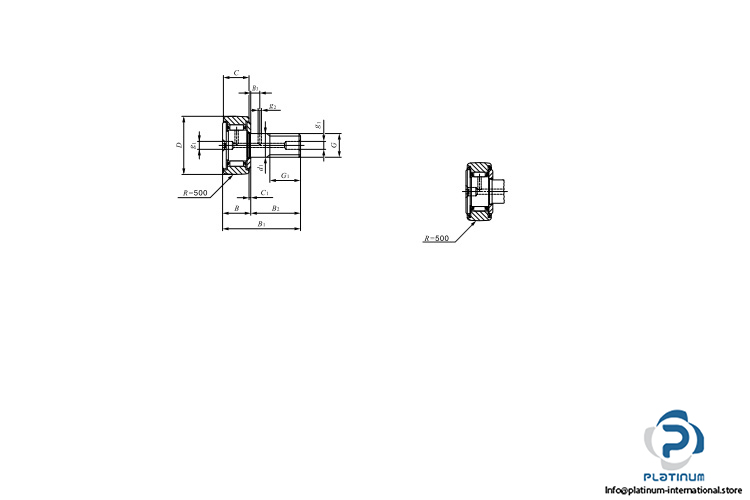

Dimensions
Outside diameter D: 62 mm
Stud diameter d1: 24 mm
Total length B₁: 80.1 MAX mm
Width outer ring C: 29 mm
Thread stud G: M24X1.5
B: 30.6 max
rs min: 1
C1: 0.8 mm
Basic load ratings:
Dynamic C: 30500 N
Static C₀: 52600 N
Maximum tightening torque: 215 Nm
Maximum allowable static load: 52000 N
Roller guide method: With cage type
sealing: UU, with Seal Type incorporates seals in the narrow clearances
Stud head shape type: With screwdriver slot
Shape of outer ring outside surface: R, With crowned outer ring
