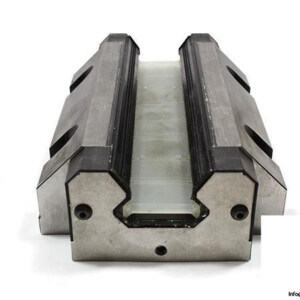

INA RWU55-E-G2-V3 Recirculating Roller Bearing Carriage
Nieuw
Op voorraad4 eenhedenKlaar voor verzending
Recirculating Roller Bearing Carriage INA recirculating roller bearing carriage designed for high-precision linear motion systems, offering high load capacity, G2 accuracy, and V3 preload for demanding industrial applications.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Rail | TSX 55-E(-U) |
| Size | 55 mm |
| Height System H | 70 mm |
| Height of Block | 59 mm |
| Width Carriage B | 140 mm |
| Overall Length Carriage L | 172,7 mm |
| JL | 95 mm |
| JB | 116 mm |
| Dynamic Load rating C | 136,000 N |
| Static Load rating C0 | 320,000 N |
| X Axis M0x | 3 287 Nm |
| Y Axis M0y | 7 404 Nm |
| Z Axis M0z | 6 667 Nm |
| Accuracy Class | G2 |
| Carriage Preload | V3 |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1100024 |
| Weight | 5,45 |
