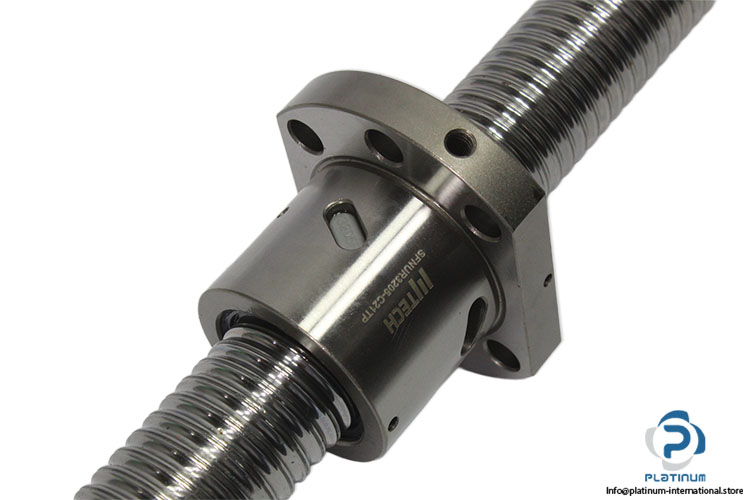

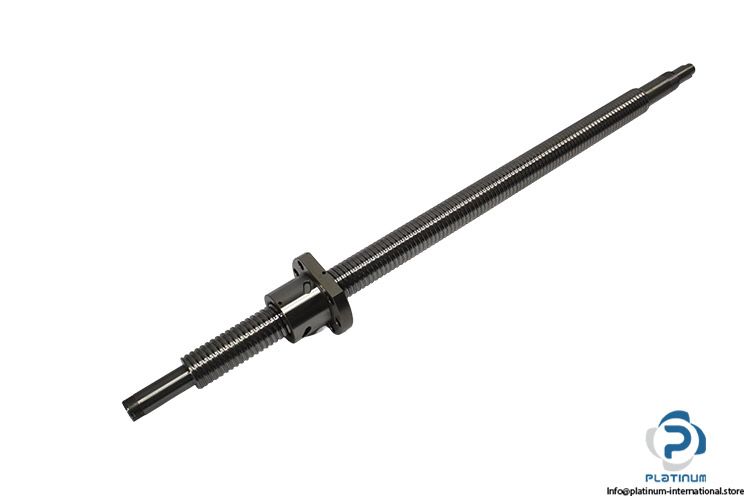

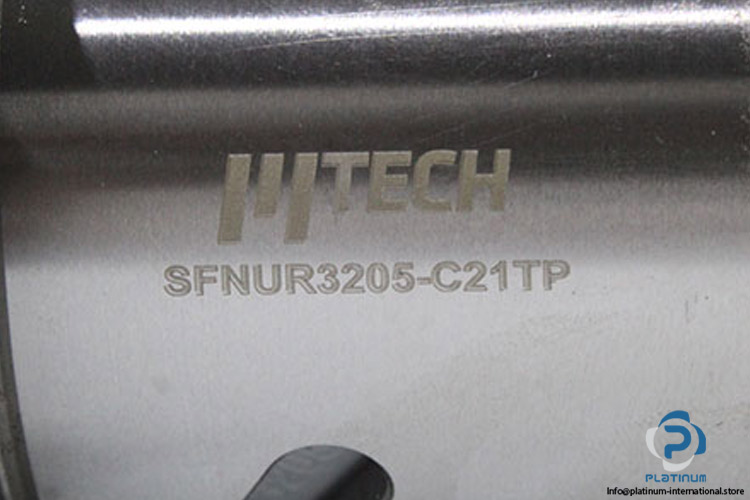

Mtech SFNUR3205-C21TP Ball Screw
Nieuw
Op voorraad11 eenhedenKlaar voor verzending
Flange Nut Ball Screw MTECH flange nut ball screw engineered for accurate linear motion, smooth movement, and reliable performance in CNC machinery, automation systems, and industrial equipment.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Size | 32 x 5 R |
| Nominal Diameter dN | 32 mm |
| Lead P | 5 |
| Ball Diameter | 3.17 mm |
| Number of thread starts | 1 |
| Direction of Lead | Right-Hand Thread |

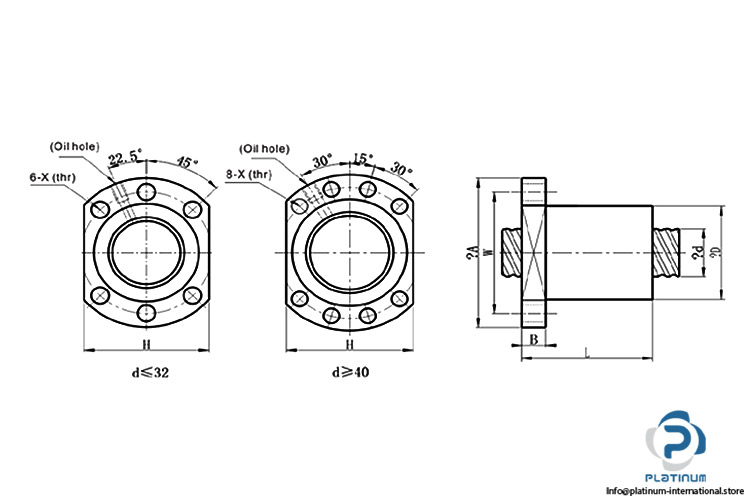

| Flange diameter | 80 mm |
| Nut outer diameter | 50 mm |
| Nut length | 52 mm |
| Flange thickness | 12 mm |
| Cutting flange width | 62 mm |
| Threaded length | 590 mm |
| Total screw length | 750 mm |
| Load rating Dynamic | 1313 N |
| Load rating Static | 3861 N |
| Stock key | JO-004 |
| Condition | New |
| SKU | 1099725 |
| Weight | 4,51 |
