Murr 67502 Potentiometer Module
Gebruikt
Op voorraad1 eenheidKlaar voor verzending
Potentiometermodule MURR MPOT 10-toeren potentiometermodule (Art.nr. 67502) met 10 kOhm weerstand, decimale schaal, vergrendelingshendel en DIN-rail montage volgens EN 60715.
1060715AdjustableAutomationComponentControlDINENIndustrialKOhmModuleMountingMpotMurrPotentiometerrailTurn
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd

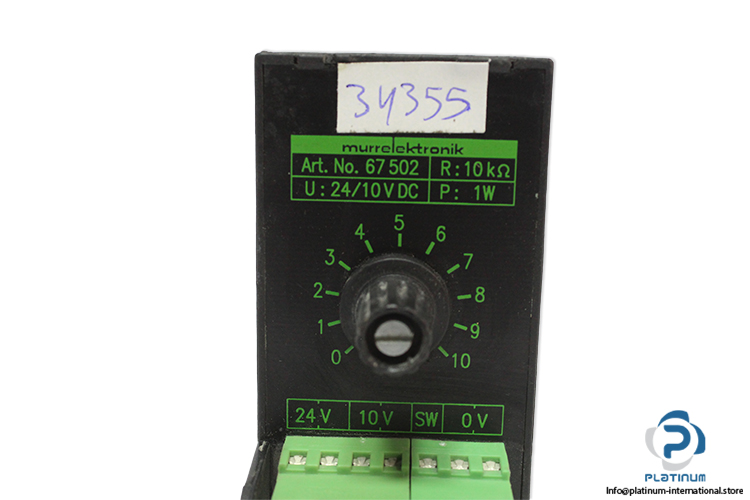

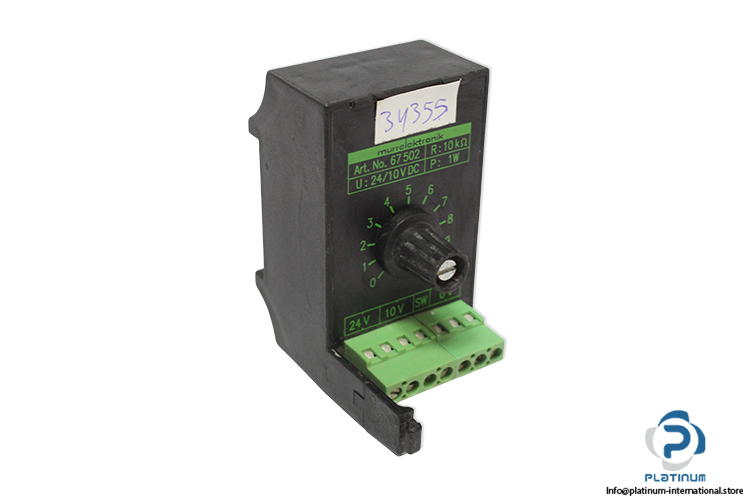

MURR MPOT Potentiometer Module “ Art No. 67502
The MURR MPOT Potentiometer Module (Art No. 67502) is a precision 10-turn potentiometer designed for accurate adjustment and control in industrial automation systems. It features a decimal scale and integrated locking lever for stable and repeatable settings.
Manufacturer: MURR
Type: MPOT Potentiometer Module
Art No.: 67502
Material Short Text: MPOT (270) 10 kOhm
Mounting Data:
| Operating Voltage | 24 / 10 VDC |
| Resistance | 10 kOhm |
| Resistance Tolerance | 20 % |
| Power Max. | 1 W |
| Linearity | ± 3 % |
| Input Power Loss Max. | 0.25 W |
| Design | 10-turn potentiometer with decimal scale and locking lever |
| Height | 75 mm |
| Width | 45 mm |
| Depth | 65 mm |
| Mounting Method | Geschnappt |
| Suitable For Mounting Type (EN 60715) | Mounting Rail |
| Operating Temperature Min. | 0 °C |
| Operating Temperature Max. | 60 °C |
