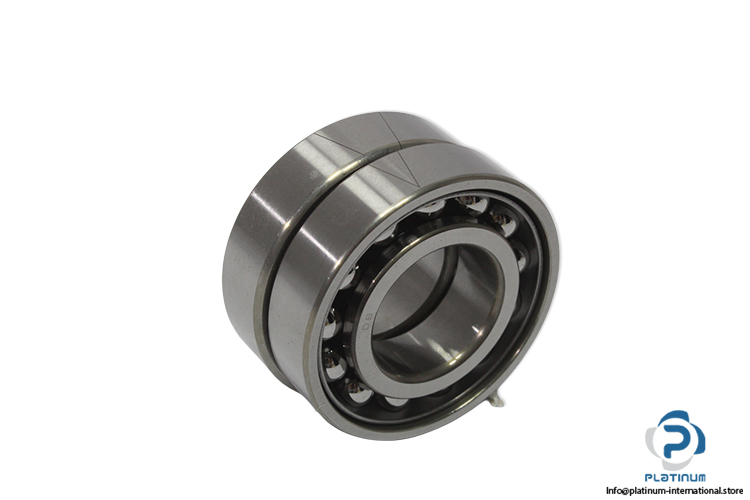

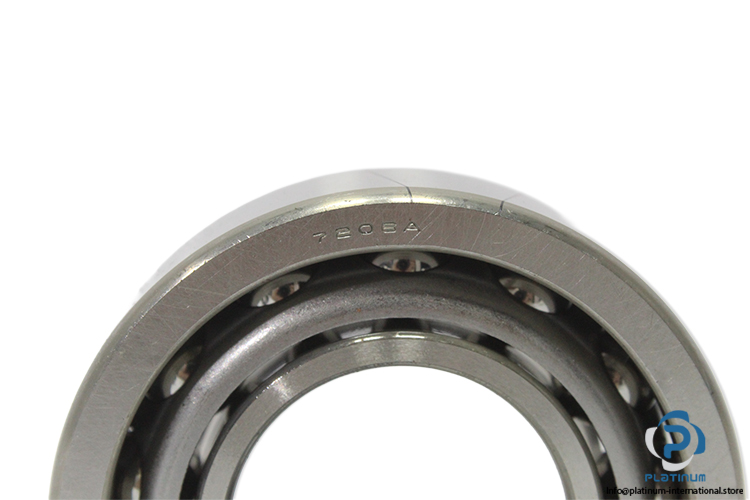

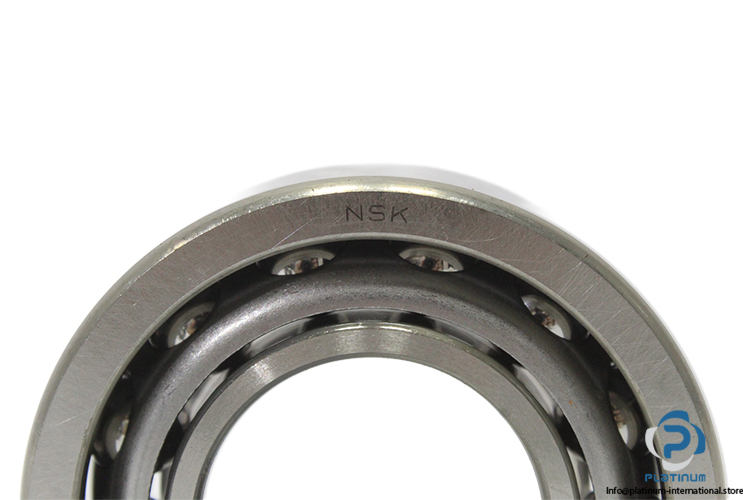

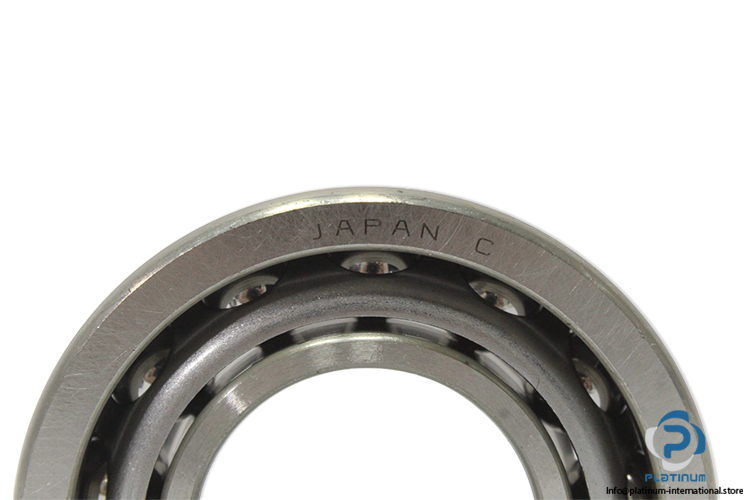

NSK 7206A Angular Contact Ball Bearing
Nieuw
Op voorraad3 eenhedenKlaar voor verzending
Angular Contact Ball Bearing The NSK 7206A is a angular contact ball bearing designed for high-speed, accurate, and reliable operation in precision industrial applications.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Bore diameter d | 30 mm |
| Outer diameter D | 62 mm |
| Width B | 16 mm |
| Contact Angle | A: 30° |
| Effective Load Center a | 21.3 mm |
| Chamfer Dimension r(min.) | 1 mm |
| Chamfer Dimension r1(min.) | 0.6 mm |
| Limiting Speed Grease | 16400 min-1 |
| Limiting Speed Oil (Oil-air) | 21800 min-1 |
| Dynamic Load Capacity C | 26.9 kN |
| Static Load Capacity C0 | 13.6 kN |
| Permissible Axial Load | 9.20 kN |

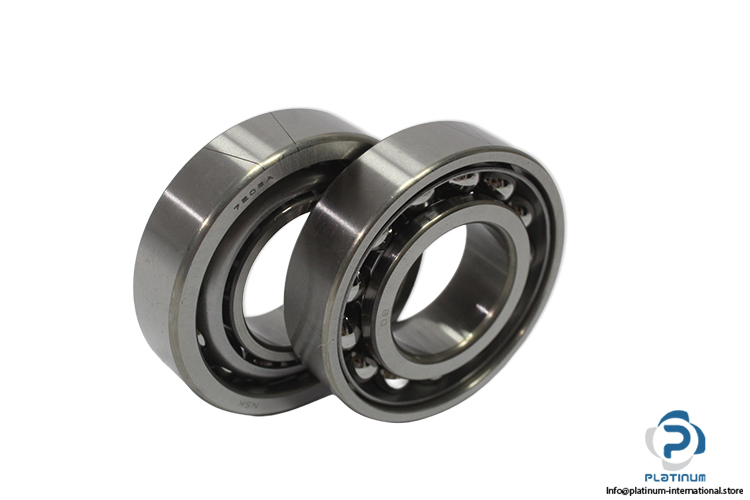

| Item Per Set | 2 |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101157 |
| Weight | 0,40 |
