Omron CJ1W-NC113 Position Control Unit

Name: OMRON CJ1W-NC113 POSITION CONTROL UNIT
SKU: 1097660
Availability: LimitedAvailability

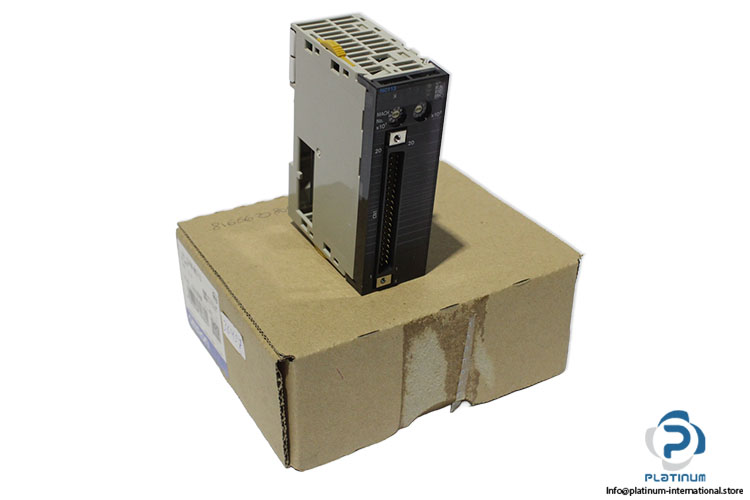

omron-CJ1W-NC113-position-control-unit-(new)-(carton)

omron-CJ1W-NC113-position-control-unit-(new)-(carton)-1

omron-CJ1W-NC113-position-control-unit-(new)-(carton)-2

omron-CJ1W-NC113-position-control-unit-(new)-(carton)-3

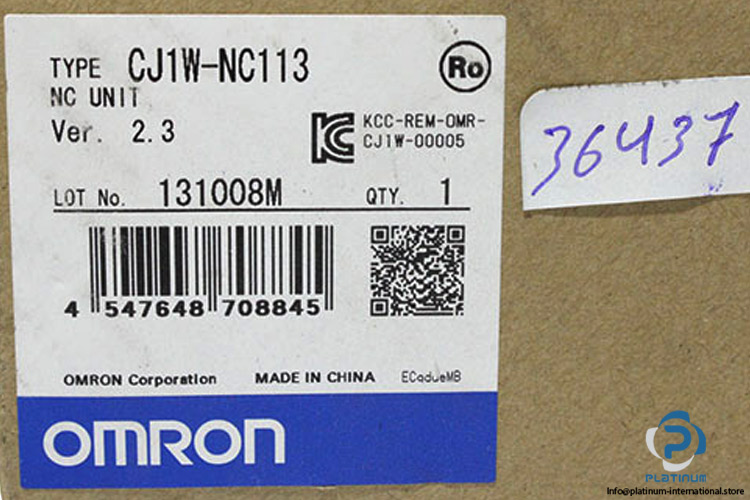

omron-CJ1W-NC113-position-control-unit-(new)-(carton)-4

omron-CJ1W-NC113-position-control-unit-(new)-(carton)-5

Nieuw

Op voorraad2 eenhedenKlaar voor verzending

Position Control Unit Omron CJ1W-NC113 single-axis position control unit for SYSMAC CJ-series PLC systems, designed for precise motion control, high-speed pulse output, and industrial automation applications.

Fabrikant

OMRON

SKU

1097660

Categorie

PLC Modules

Staat

Nieuw

Automation Axis BUS CJ CJ1W Control Controller expansion Industrial IO Module Motion NC NC113 Omron PLC Position Series Single Special Sysmac Unit

Enorme Voorraad

Wereldwijde verzending

Deskundige Ondersteuning

Kwaliteit Gegarandeerd

Series	CJ
Lot No.	131008M
Ver.	2.3
Code	0018
EAN NO.	4 547648 708845
Used	For the Omron SYSMAC CJ-series PLC platform
No. of axis	1
System	CJ I/O Bus
Expansion unit type	Special I/O Unit
Digital input type	Line driver (RS-422), NPN, No voltage, PNP
Digital output type	NPN, Open collector
Input Rating	24V DC, 5mA
Output Rating	24 V DC 16 mA (W/ LIMIT RES.), 24 V DC 30mA
Connection type	FCN (plug not included)
No. of I/O Connectors	1
Output Frequency	max. 500 kHz
Certificate	CE, KC, cULus
Dimensions	90 x 31 x 66.5 mm
Condition	New
Stock Key	JO-004
SKU	1097660
Weight	0,17
