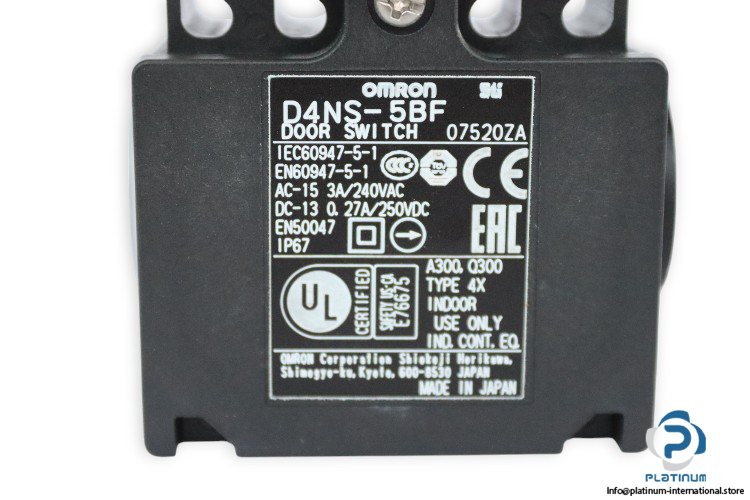

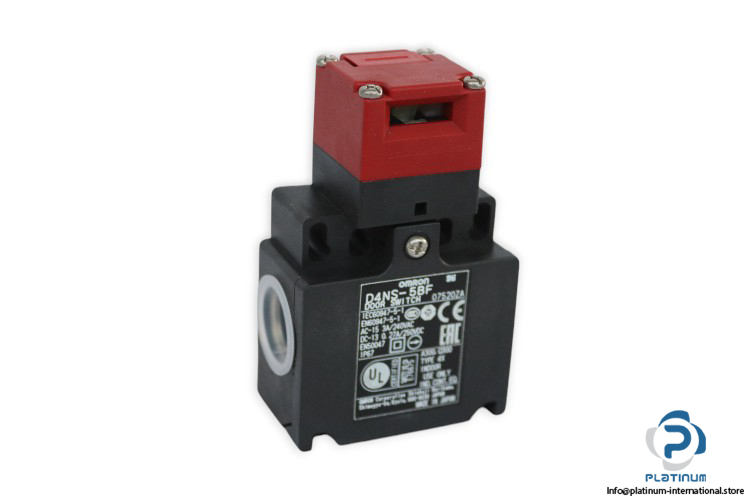

Omron D4NS-5BF Safety Interlock Switch

OMRON Safety Interlock Switch D4NS-5BF

The OMRON Safety Interlock Switch D4NS-5BF is a high-performance, key-operated safety switch designed for safeguarding equipment and preventing unauthorized access. With its robust resin housing and slow-action switch mechanism, it ensures reliability in demanding industrial environments.

Technical Specifications:

• Model: D4NS-5BF
• Door Switch Type: Key-operated
• Material Housing: Resin
• Material Head: Resin
• Ambient Temperature (Operating): -30 / 70°C
• Direction of Operation: Adjustable
• Door Contacts (NC): 2
• Door Contacts (NO): 0
• Switch Action: Slow action
• Connection Method: Terminal block
• Degree of Protection (IP): IP67
• Conduit Size: PG13.5
• Number of Conduits: 2
• Shape: Cuboid
• Dimensions: 88 x 30 x 56 mm
• Category: Safety Devices

With its durable design and key-operated safety features, the OMRON D4NS-5BF Safety Interlock Switch provides reliable protection for machinery and personnel. Ideal for use in industrial settings, it meets high safety standards and is available through Platinum International.
