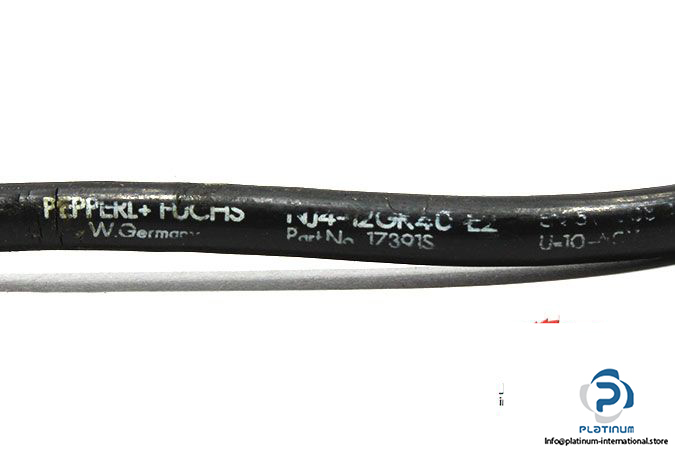

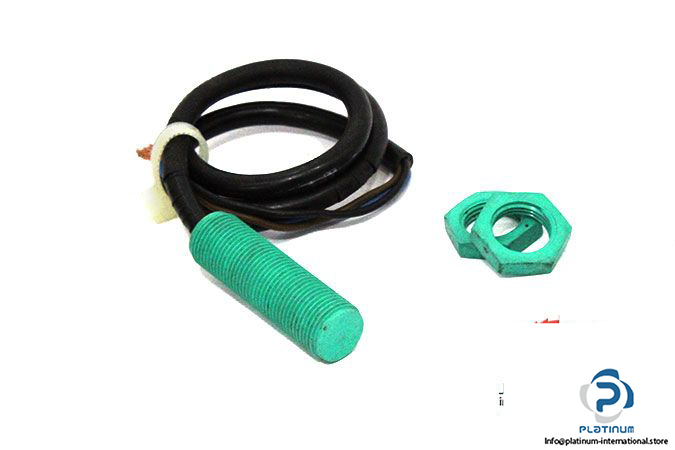

Pepperl Fuchs NJ4-12GK40-E2 Inductive Sensor

Manufacturer: Pepperl + Fuchs

Type: Inductive Sensor

Model: NJ4-12GK40-E2

Part No: 17391S

Rated Operating Distance: 4 mm

Assured Operating Distance: 0 … 3.24 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 0 … 200 mA

Switching Function: Normally Open

Output Type: PNP

No-Load Supply Current: ≤ 15 mA

Voltage Drop: ≤ 3 V

Switching Frequency f: 0 … 2000 Hz

Installation: Non-Flush

Protection Degree: IP68

Ambient Temperature: -25 … 70 °C

Material: Housing: PBT, Sensing Face: PBT

Connection: Cable, 3 Wire

Diameter, Length: 12, 40 mm

Weight: 0.02 kg
