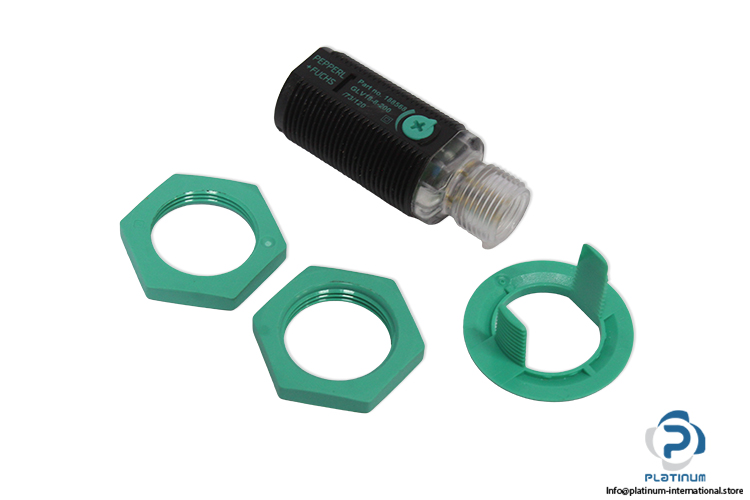

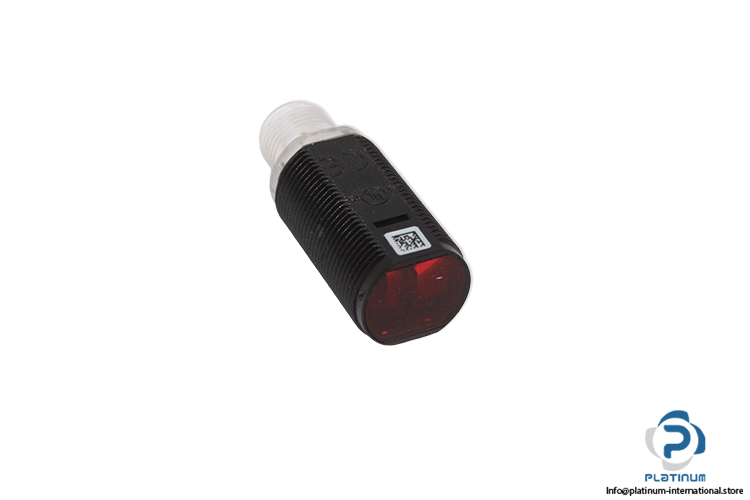

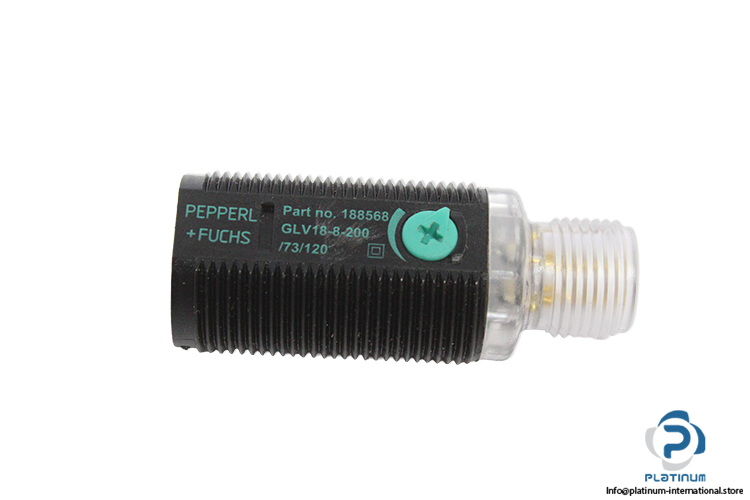

Pepperl+Fuchs GLV18-8-200/73/120 Diffuse Mode Sensor
Nieuw
Op voorraad7 eenhedenKlaar voor verzending
Diffuse Mode Sensor PEPPERL+FUCHS diffuse mode sensor with adjustable detection range, PNP output, IP67 protection, and visible red LED light for reliable industrial sensing applications.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Part No. | 188568 |
| Detection range | 50 ... 200 mm adjustable |
| Detection range max. | 0 ... 200 mm |
| Reference target | 100 mm x 100 mm Kodak white |
| Light source | LED |
| Light type modulated visible | red light , 640 nm |
| Diameter of the light spot approx. 15 mm | at 200 mm |
| Angle of divergence approx. | 4 ° |
| Optical face frontal Ambient light limit | 30000 Lux |
| Hysteresis | H < 15 % |
| Operation indicator | LED green, statically lit Power on |
| Function indicator | LED yellow: lights when object is detected ; flashes when falling short of the stability |
| control Control elements | sensitivity adjustment |
| Operating voltage UB | 10 ... 30 V DC |
| No-load supply current | 20 mA |
| Switching type | light/dark on |
| Signal output | 2 PNP, complementary, short-circuit protected, open collectors |
| Switching voltage max. | 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop Ud | 1.5 V DC |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| standard | EN 60947-5-2 |
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) |
| Housing Material | PC |
| Optical face | PMMA |

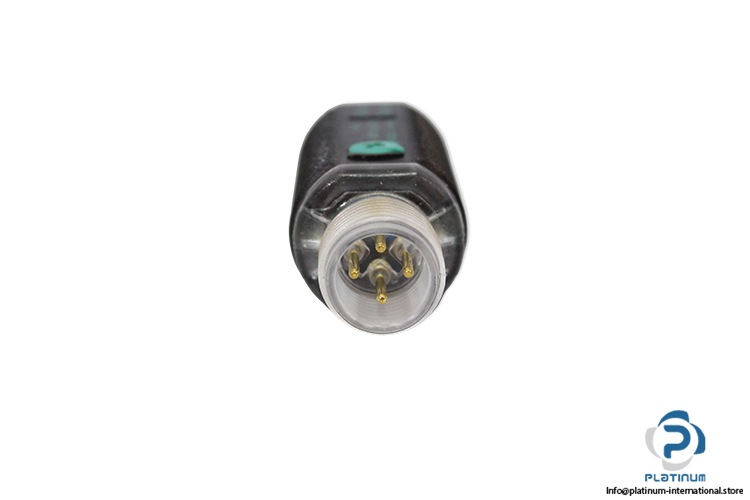

| Connector | plastic |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated =36 V |
| Stock Key | COO 003 |
| Condition | New |
| SKU | 1099171 |
| Weight | 0,04 |
