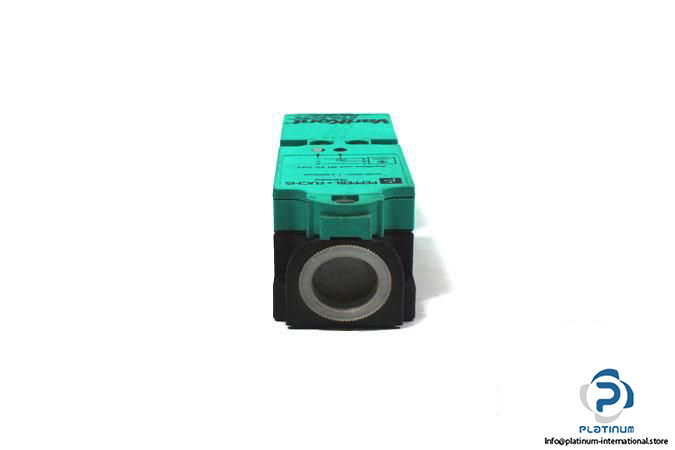

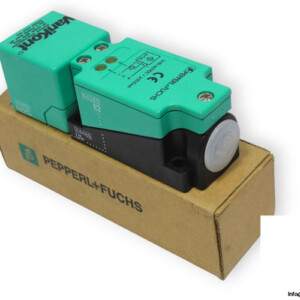

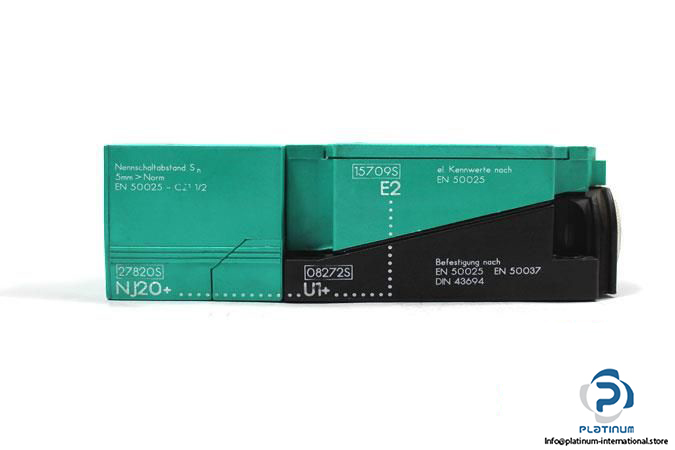

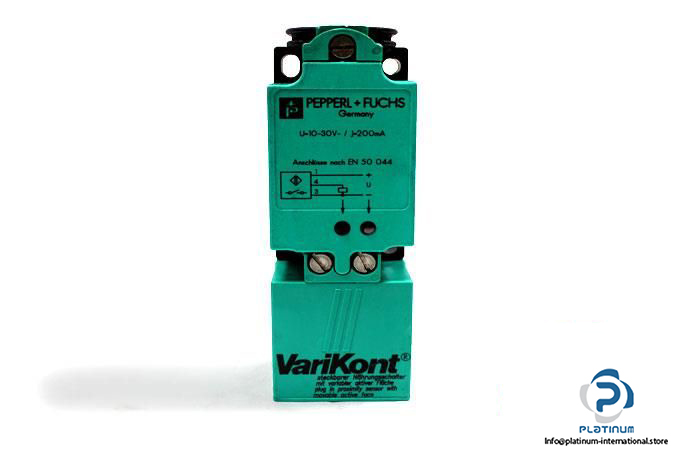

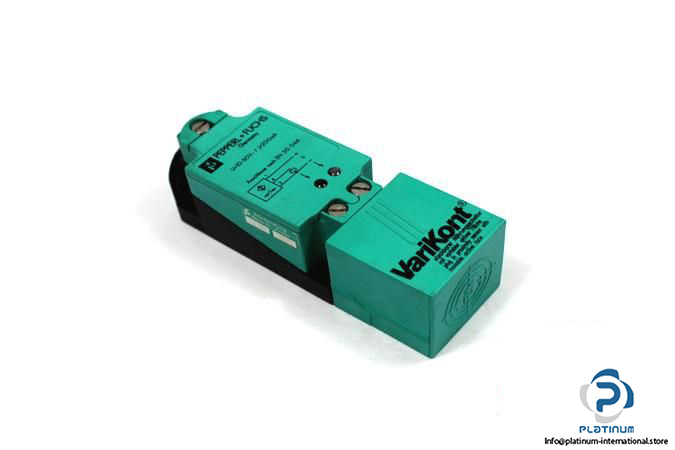

Pepperl+Fuchs NJ20+U1+E2 Inductive Sensor
49,99$
Inductieve sensor
Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensor
Series: Varikont
Model: NJ20U1E2
Part No.: 084516
Rated operating distance: 20 mm
Assured operating distance: 0 … 16.2 mm
Operating Voltage: 10 … 60 V DC
Current consumption: 200 mA
Switching frequency: 0 … 150 Hz
Electrical design: PNP
Switching output: Normally open
Connector type: Terminal compartment
Enclosure rating: IP68
Ambient Operating temperature: -25 … 70°C
Dimensions: 40 x 40 x 118 mm
Housing: Rectangular
Housing material: PBT
Sensing face material: PBT
Mounting: Flush mountable
