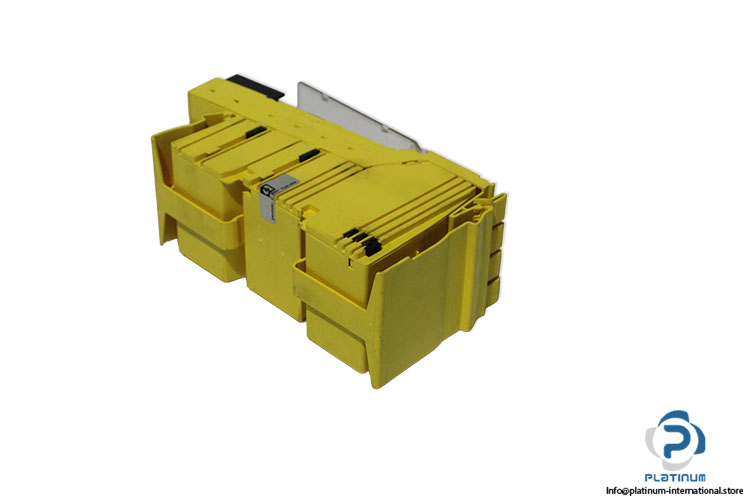

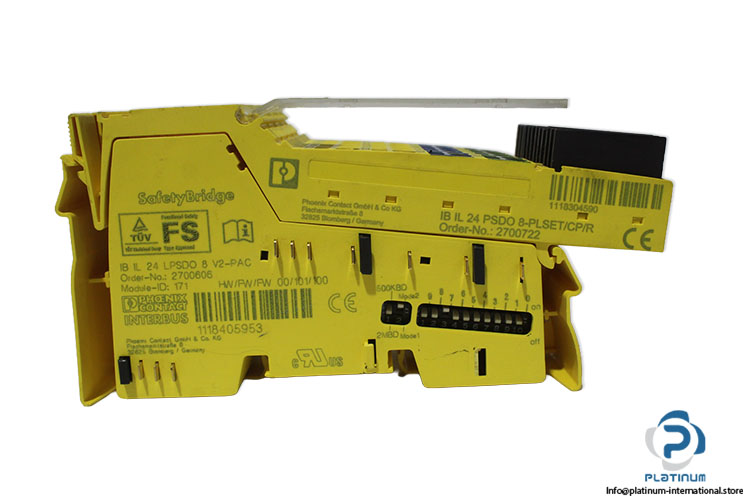

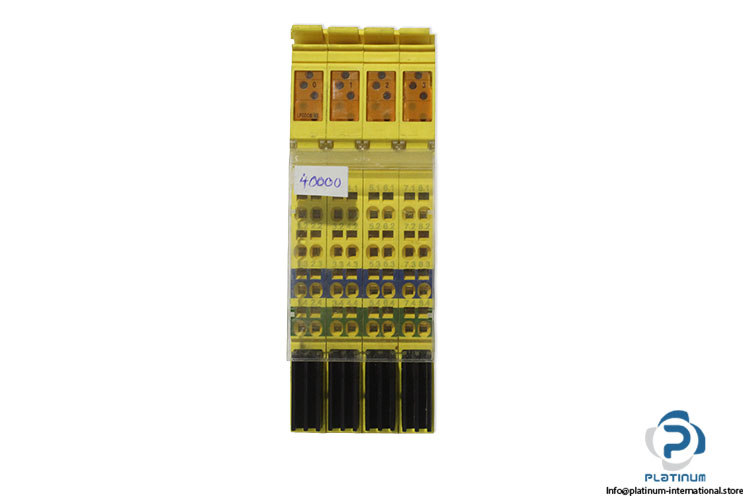

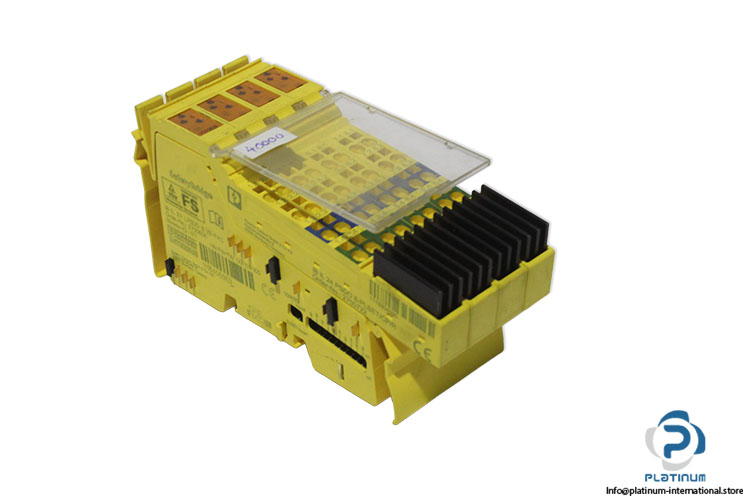

Phoenix Contact IB IL 24 Lpsdo 8 V2-PAC Safety Module
Gebruikt
Op voorraad1 eenheidKlaar voor verzending
Safety Module Phoenix Contact safety module with 24 V DC supply, configurable digital outputs and switchable 500 kbps / 2 Mbps transmission speed for industrial safety applications.
Enorme Voorraad
Wereldwijde verzending
Deskundige Ondersteuning
Kwaliteit Gegarandeerd
| Part No. | 2700606 |
| Part No. | 171 |
| EAN. No. | 1118405953 |
| Version | HW/PW/FW 00/101/100 |
| Rated Supply Voltage | 19.2 / 30 V DC (24 V DC) |
| Rated Supply Current | 30 mA |
| Limiting Continuous Current | max. 6.03 A |
| Transmission speed | 500 kbps / 2 Mbps (can be switched) |
| No. of interface channels | 2 |
| interface Connection method | Inline data jumper |
| Process data channel | 48 Byte |
| Number of Digital outputs (DO) | 4 (for 2-channel assignment), 8 (for 1-channel assignment) |
| Nominal Output Voltage | 24 V DC |
| Maximum output current per channel | 2 A |
| Design of digital output | Semiconductor |
| Color (Housing) | yellow (RAL 1018) |
| Protection Class | IP20 |
| Ambient Temperature | -20 / 55 °C |
| Dimensions | 48.8 x 119.8 x 71.5 mm |
| Certificate | TUV, FS, CE, cURus |
| ATTACHMENT | PHOENIX CONTACT IB IL 24 PSDO 8-PLSET/CP/R CONNECTOR SET |
| Attachment Order-No. | 2700722 |
| Attachment Connection method | Spring-cage connection |
| Condition | Used |
| Stock key | CON003 |
| SKU | 1098394 |
| Weight | 0,24 |
