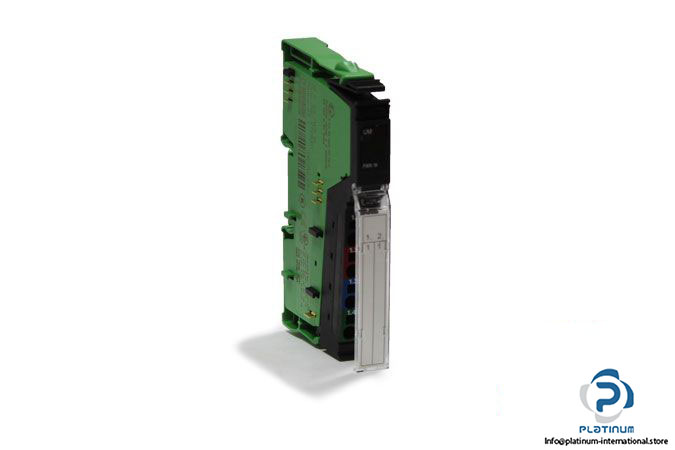

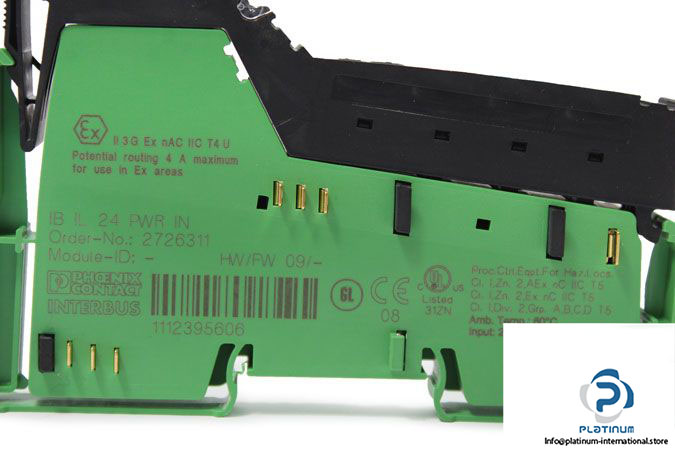

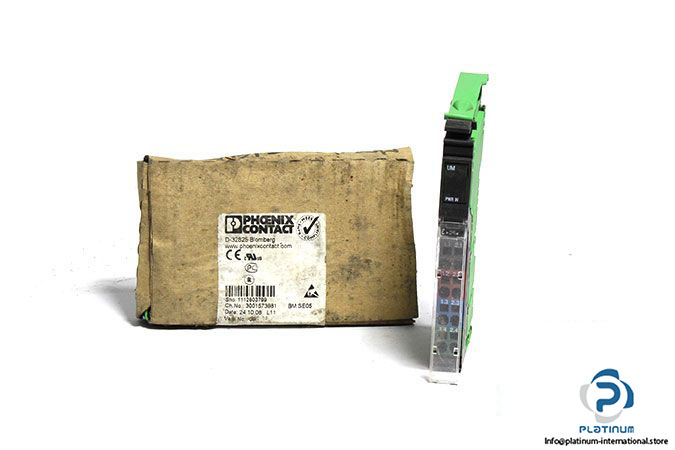

Phoenix Contact IB IL 24 PWR IN – 2726311 Inline Terminal

Manufacturer: Phoenix Contact

Type: Inline Terminal

Model: IB IL 24 PWR IN – 2726311

Order No.: 2726311

PAC: IB IL 24 PWR IN-PAC – 2861331

Designation: Main circuit supply (UM)

    Supply Voltage: 24 VDC

    Supply Voltage Range: 19.2 … 30 V (including all tolerances, including ripple)

    Power Supply Unit: max. 8 A

Designation: Segment circuit supply (US)

    Supply Voltage: 24 VDC

    Supply Voltage Range: 19.2 … 30 V DC (including all tolerances, including ripple)

    Power Supply Unit: max. 8 A

Number of Plugs: 1

Connection Method: Inline data jumper

Interface: Inline local bus

Degree of Protection: IP20

Ambient Temperature (Operation): -20 … 50 °C

Dimensions: 119.8 X 12.2 X 71.5 mm

Weight: 0.04 Kg
